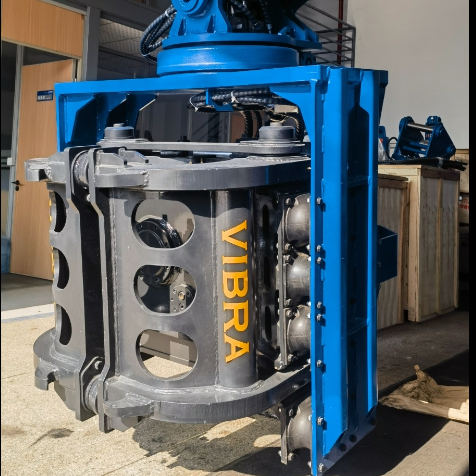

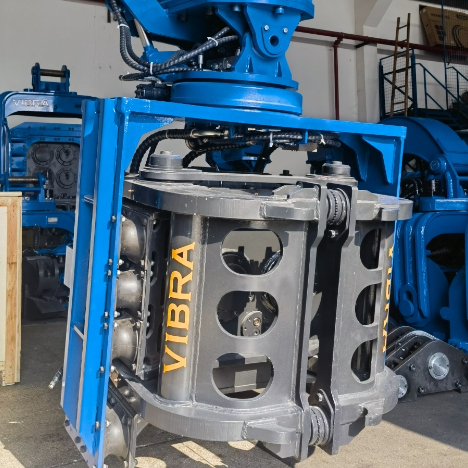

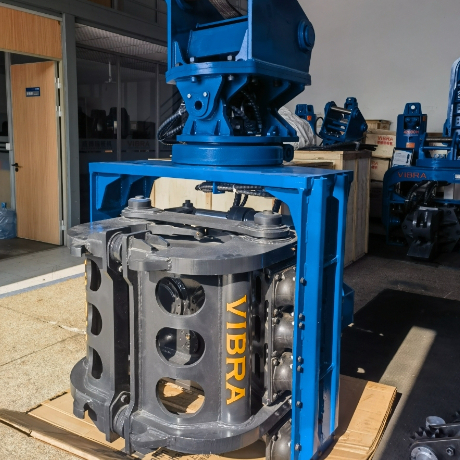

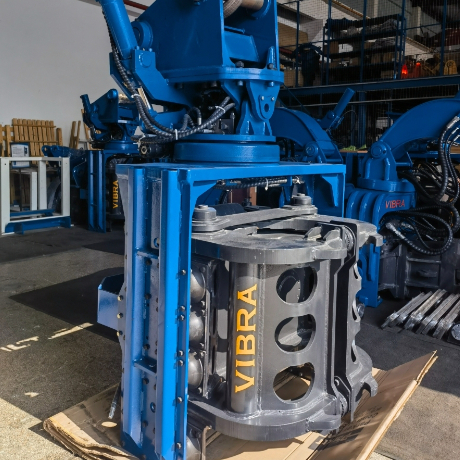

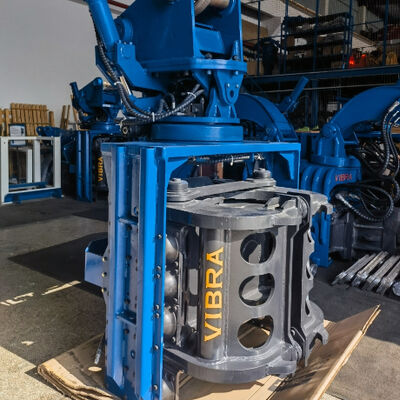

Side Grip Pile Driver: Compact Design for Tight Spaces

The Side Grip Pile Driver is a revolutionary excavator-mounted hydraulic vibratory hammer designed to overcome the most challenging piling constraints on today’s complex job sites. Engineered for high-growth construction markets such as Southeast Asia, India, and Russia, this innovative system delivers unmatched versatility, efficiency, and precision in confined environments—from dense urban developments and low-clearance industrial facilities to tight residential projects. Capable of driving and extracting piles to depths of 6–15 meters, it transforms restricted access zones from obstacles into opportunities, enabling contractors to complete foundation work faster, safer, and more economically.

1. 360° Full-Rotation Pile Handling – Equipped with an integrated side grip and bottom clamp system, the driver securely lifts, tilts, and rotates piles a full 360 degrees. This allows for exact positioning in any orientation without manual intervention, significantly improving accuracy and safety.

2. Space-Optimized Compact Design – Built with a low-profile, narrow-frame structure, the Side Grip Pile Driver operates efficiently in extremely tight spaces—such as narrow alleys, under overhead obstacles, or adjacent to existing structures—where conventional piling rigs cannot access.

3. High-Efficiency Hydraulic Vibration – Powered directly by the carrier excavator’s hydraulic system, the hammer generates high-frequency vibration (up to 3000 RPM) and exceptional centrifugal force, ensuring rapid penetration and extraction even in challenging soil conditions like sandy fills, stiff clays, and mixed strata.

4. Multi-Pile Versatility – With quick-change interchangeable collets, the same unit can handle a wide variety of foundation elements, including sheet piles, H-beams, pipe piles, and casing piles, reducing the need for multiple specialized attachments.

5. Broad Carrier Compatibility – Designed to work with 20–40 ton excavators, the Side Grip Pile Driver integrates seamlessly into common equipment fleets in target markets, eliminating the need for expensive, dedicated piling rigs.

• Maximize Productivity in Tight Sites – Complete piling projects in confined urban lots, inside factories, or near property lines without costly site preparation, demolition, or access widening.

• Reduce Overall Project Costs – Eliminates the need for larger piling rigs and auxiliary cranes while lowering fuel consumption and operational expenses through hydraulic efficiency.

• Enhance Safety & Precision – Removes workers from hazardous manual pile-handling tasks and enables millimeter-accurate placement, improving both safety and installation quality.

• Increase Equipment ROI – One versatile attachment replaces multiple specialized machines, offering high durability, minimal maintenance, and reliable performance in harsh job-site conditions.

• Fast Deployment & Shorter Timelines – Simple mounting on a standard excavator enables rapid mobilization, and high-speed cycling reduces overall project duration.

• Model: VIBRA SV-300 (Side Grip Type)
• Type: Hydraulic Vibratory Hammer
• Piling Depth: 12 meters
• Rotating Range: 360° ±30°
• Vibration Frequency: 2300–3000 RPM
• Max. Centrifugal Force: 558 KN
• Compatible Carrier: 25~32 ton excavators
• Pile Types: Sheet piles, H-beams, pipe piles, casing piles

For contractors and engineers operating in the dynamic markets of Southeast Asia, India, and Russia, the Side Grip Pile Driver represents the ideal fusion of innovative design, robust performance, and practical versatility. By enabling efficient, deep piling in severely confined spaces, it helps reduce project timelines, control costs, and tackle foundation challenges previously deemed unfeasible. Invest in the solution that turns spatial constraints into your competitive edge.
