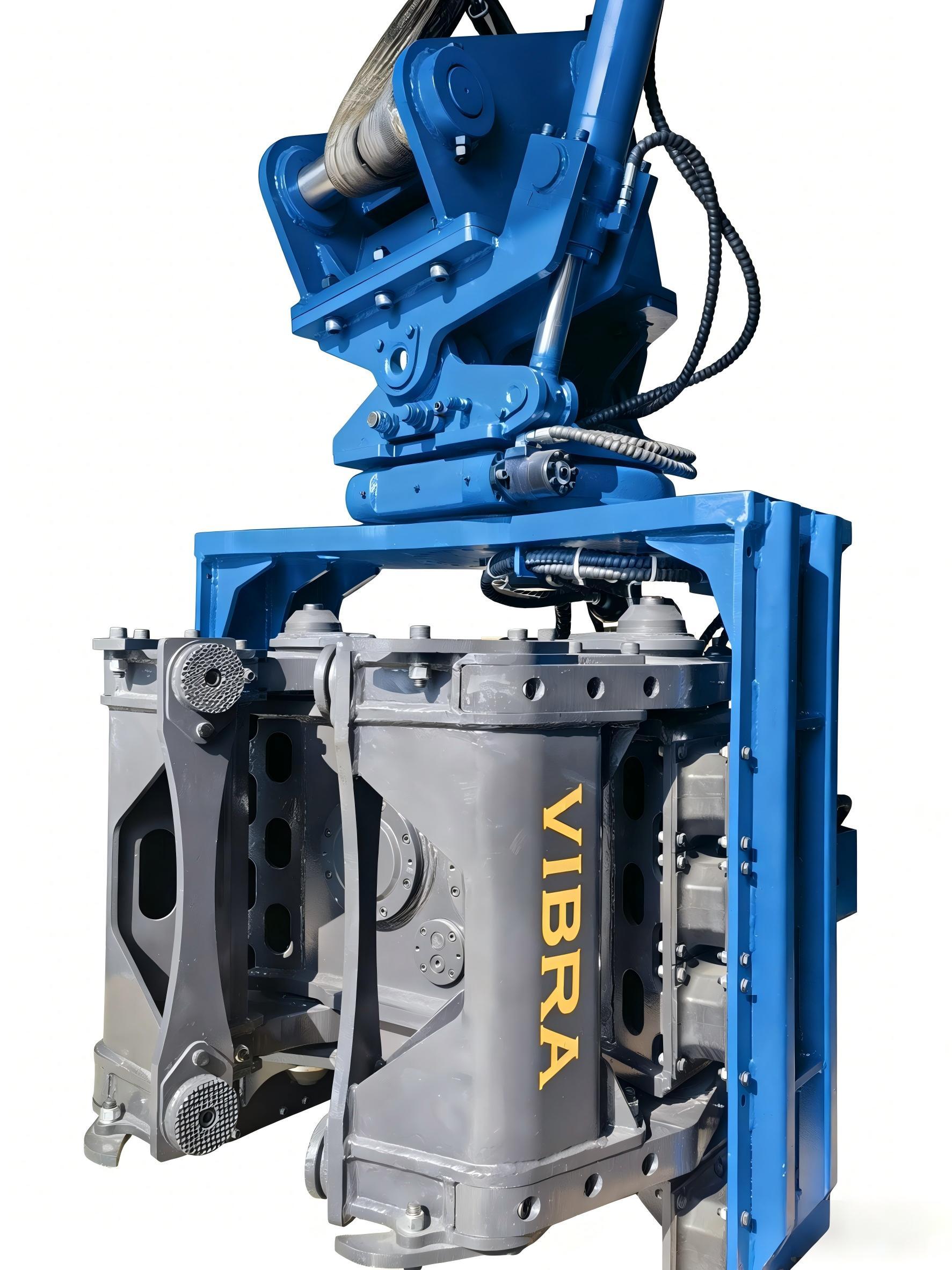

The SV-400 Side Grip Pile Driver is a specialized hydraulic vibratory hammer attachment engineered to transform standard 32–40 ton excavators into powerful, versatile piling machines. As a trusted Side grip pile driver Manufacturers from China, we have designed this model to excel in the most demanding construction environments – low-clearance factories, bridge underpasses, urban renovation sites, and underground parking extensions where conventional piling equipment simply cannot operate.

The SV-400 combines three critical capabilities – bidirectional tilt driving head, full 360 degree continuous rotation, and low headroom operation capability – making it the ultimate confined space adaptation solution for infrastructure projects across Southeast Asia, India, and Russia.

The SV-400 is equipped with a bidirectional tilt driving head that allows ±30° tilting in both directions. This feature enables precise alignment with inclined piles or uneven ground without repositioning the carrier machine. Operators can quickly adjust the tilt angle hydraulically from the cab, saving valuable time and improving safety when working on slopes, embankments, or riverbanks.

This bidirectional tilt driving head China-engineered system is particularly valuable for:

• Raking piles in railway electrification and basement underpinning projects

• Working flush against existing structures without repositioning the excavator

• Slope stabilization and embankment reinforcement works

• Bridge abutment construction where precise pile angles are critical

Unlike limited-tilt attachments, the SV-400’s bidirectional system gives operators full control over pile orientation, eliminating the need for costly rework or manual adjustments.

The SV-400 offers full 360 degree continuous rotation (unlimited slewing) – a feature that fundamentally changes how piling work is performed in congested job sites. Unlike hammers limited to 180° or 270° swing arcs, the SV-400 provides unrestricted rotation without hose twisting.

This 360 Degree rotation pile driver Made In China capability delivers several operational advantages:

• Eliminates dead angles – the operator can position piles exactly where needed, even in tight corners

• Works around obstacles without moving the base machine

• Reduces repositioning delays – a common productivity killer on congested sites

• Enables precision placement – piles can be aligned to layout marks with proportional cab control

Combined with the excavator's own boom swing, the SV-400 can access pile positions that would be impossible with conventional piling rigs. The 360° rotary actuator works seamlessly with the bidirectional tilt system, providing six degrees of positioning freedom.

Traditional piling rigs require significant vertical clearance for leaders and masts – often 10 metres or more. The SV-400 solves this limitation with its exceptional low headroom operation capability.

With a compact height of only 3056 mm and a unique side-grip clamping system, the SV-400 provides outstanding low headroom operation capability. It can drive and extract piles:

• Under bridges and flyovers with as little as 3.8 metres of clearance

• Inside buildings and factories through standard industrial doorways

• Beneath power lines where vertical hammers cannot fit

• In underground parking and basement extensions

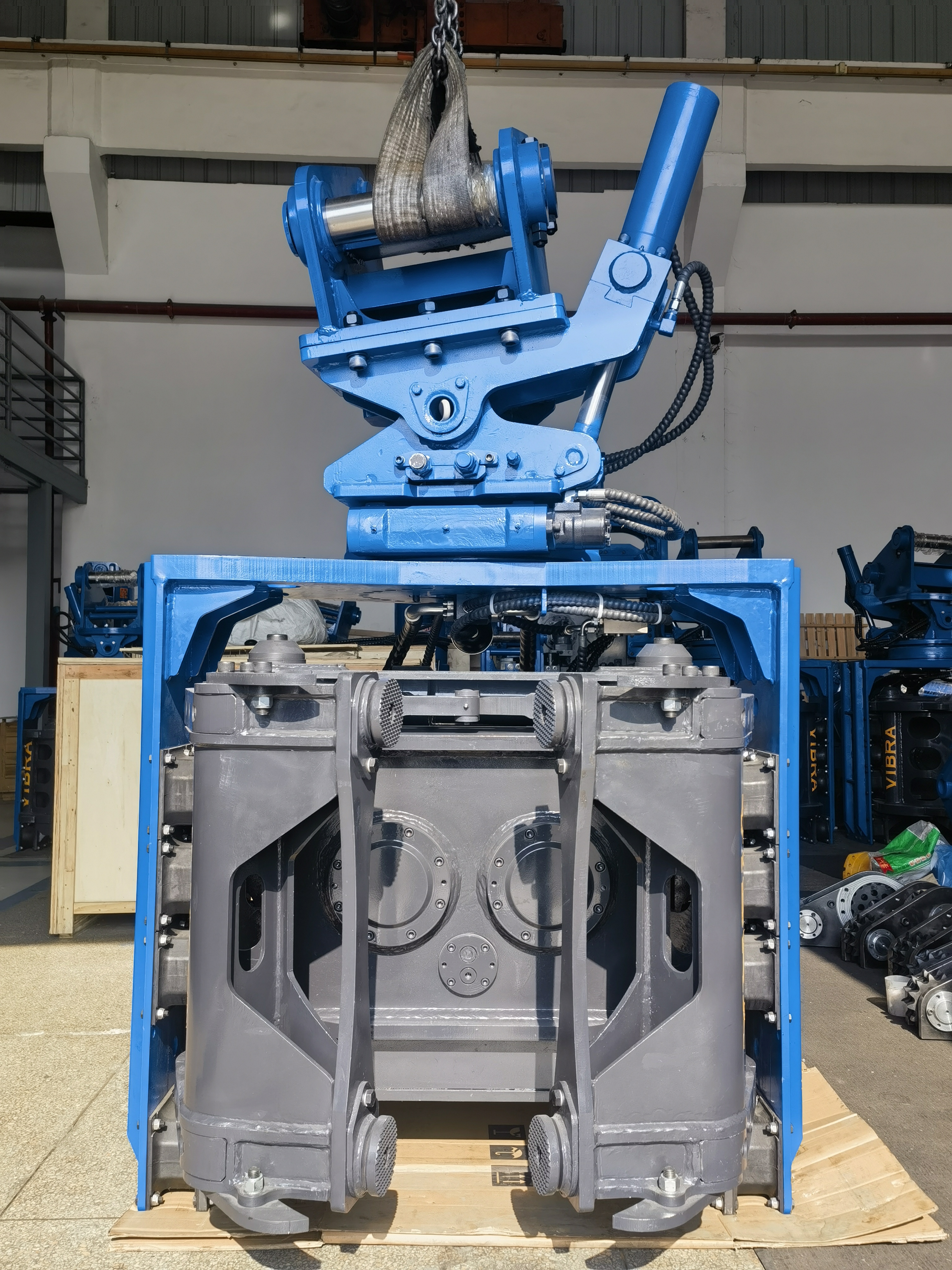

The side grip mechanism holds the pile from the side, dramatically reducing the required vertical clearance compared to top-drive hammers. The bottom clamp (520 kN gripping force) provides vertical security, while the side clamp (465 kN) handles lateral holding. This dual-clamp design ensures stable handling even in the most confined spaces.

The SV-400 is designed as a complete low headroom operation capability solution that integrates side clamps and bottom clamps to handle steel sheet piles, H-beams, and circular pipes. The interchangeable clamp interface allows rapid tool changes.

One machine accomplishes the entire pile driving and extraction process – clamping, positioning, driving, and extracting – without requiring a crane or auxiliary equipment. This all-in-one versatility eliminates equipment redundancy and significantly reduces project costs.

Note: Specifications are for reference only. Products are constantly updated, and new product specifications may vary.

Southeast Asia: Handles soft soil and mixed ground conditions commonly found in infrastructure projects (ports, dikes, housing). Low noise operation complies with local environmental regulations in urban areas.

India: The high-frequency vibratory action (2300-5000 rpm) reduces soil friction efficiently in the Ganges plains' granular soils and light clays. Contractors report 30% faster cycle times compared to conventional hammers. The bidirectional tilt is essential for working on slopes and embankments common in Indian infrastructure projects.

Russia: The SV-400's robust construction and powerful 656 kN centrifugal force handle the challenging ground conditions found in western Russian regions. Low headroom operation is critical for working beneath existing infrastructure in urban renovation projects.
