Self Lubricating Bearing Low Maintenance Pile Driver – Static Crushing Low Vibration Noise Design For Confined Sites

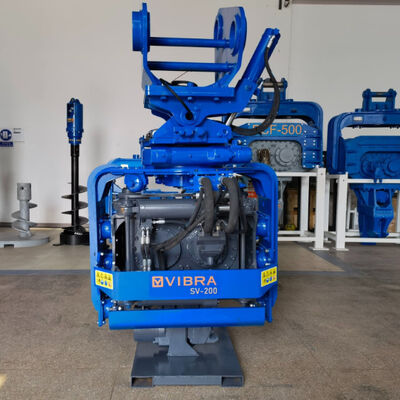

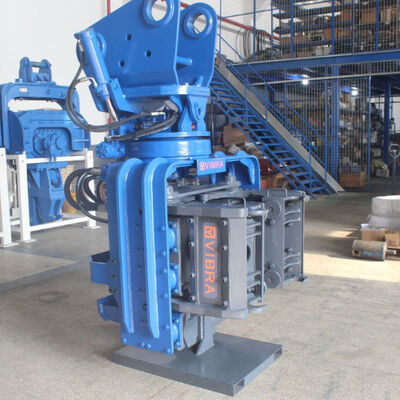

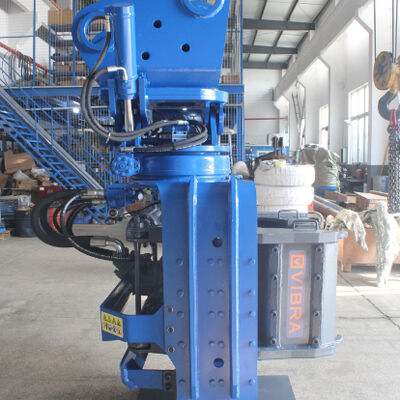

The SV‑200 is a purpose‑built side‑grip vibratory pile driver that turns your 20‑25 ton excavator into a highly productive piling rig for low‑clearance and narrow‑access environments. Whether you are working under factory roofs, alongside bridge abutments, inside basement pits, or in congested urban trenches, this machine delivers the power, precision, and durability you need – all in a compact, lightweight package.

Unlike traditional top‑mounted hammers that require tall masts and ample overhead space, the SV‑200 uses a unique side‑clamping design that allows operation with minimal vertical headroom. It integrates two independent clamping systems (side and bottom clamps) to handle the entire pile‑driving cycle – from gripping and positioning to driving and extraction – without auxiliary equipment. This all‑in‑one capability significantly reduces project costs and speeds up job completion.

One of the most outstanding features of the SV‑200 is its full 360 degree continuous rotation capability. The hydraulic slewing mechanism allows the operator to rotate the entire clamp assembly continuously in either direction, enabling precise pile orientation without repositioning the excavator. This is especially valuable when working along curved alignment, against existing walls, or on congested sites where machine manoeuvring is limited. Combined with a ±30° bidirectional tilt, the SV‑200 ensures that every pile is placed exactly where it needs to be – perfectly vertical or following a designed rake angle.

Despite its compact dimensions, the SV‑200 delivers a remarkable high impact energy per blow. With a centrifugal force of 558 kN and an adjustable frequency range of 2300‑3000 rpm, it can efficiently drive and extract steel sheet piles (U‑type, Z‑type), H‑beams, and circular pipe piles up to 10 metres in length, even in cohesive soils, sandy gravel, and weathered rock. The impact energy is generated by a sophisticated four eccentric mechanism system – a robust design that ensures balanced vibration, minimised horizontal oscillation, and maximised vertical force transmission. This means more of the available power goes directly into the pile head, resulting in faster penetration and higher productivity.

Construction sites in urban areas and near sensitive structures demand equipment that minimises disturbance. The SV‑200 excels in this regard with its static crushing low vibration noise characteristics. The four‑eccentric design cancels out horizontal vibrations while superimposing vertical forces, so harmful lateral shaking is virtually eliminated. This not only protects the excavator boom and surrounding structures but also keeps noise levels significantly lower than conventional impact hammers or poorly balanced vibratory drivers. For contractors in densely populated Southeast Asian cities or Indian urban corridors, this means fewer complaints, smoother permitting, and the ability to work longer hours within noise regulations.

Reliability is the backbone of any profitable fleet. The SV‑200 is engineered with a self lubricating bearing low maintenance system. High‑grade bearings are sealed and pre‑lubricated with advanced grease retention technology, drastically reducing the frequency of manual greasing and extending service intervals. The housing is designed for easy access, and all wear parts – including jaw inserts and bearing covers – can be replaced quickly without specialised tools. This translates to less downtime, lower operating costs, and higher machine availability – a critical advantage for remote projects in Russia or rural India where service support may be limited.

• In Southeast Asia, the SV‑200’s full 360° rotation and compact size make it ideal for revetment works, canal lining, and factory expansions in tight industrial zones.

• In India, the high impact energy and four‑eccentric mechanism cut through hard laterite and gravel, while the low‑noise operation helps comply with local environmental norms.

• In Russia, the self‑lubricating bearings ensure reliable start‑up and consistent performance even in sub‑zero temperatures, and the robust construction withstands the rigours of heavy‑duty use.

All values are for reference and may vary with actual configuration and site conditions.
