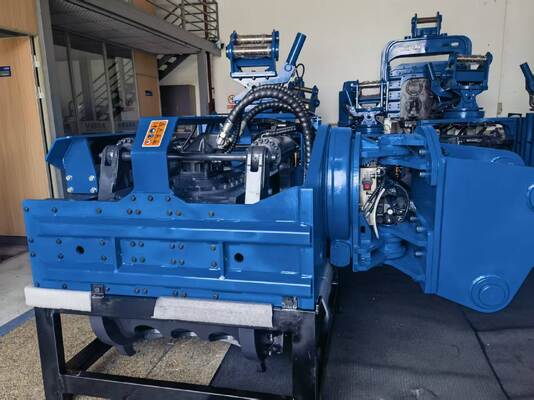

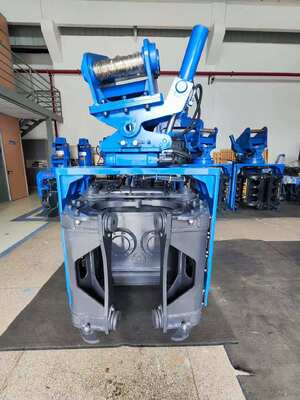

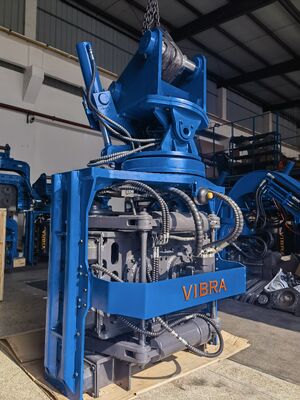

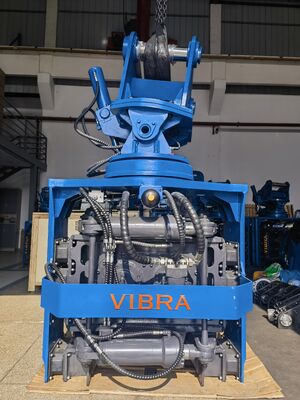

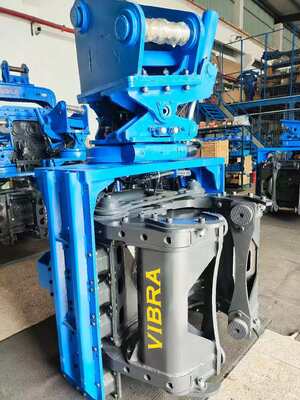

SV-400 Side Grip Pile Driver With Full 360 Degree Continuous Rotation Hot Sale
| Place of Origin | China |
|---|---|
| Brand Name | VIBRA |
| Certification | ISO 9001:2015 |
| Model Number | SV-400 |
| Document | Side Grip Pile Driver Catal...og.pdf |
| Minimum Order Quantity | 1 unit |
| Price | Negotiable |
| Packaging Details | wooden pallets |
| Delivery Time | 15-20days |
| Payment Terms | T/T |
| Supply Ability | 10 set per month |
Product Details
| Highlight | Side Grip Pile Driver with 360 rotation,SV-400 Pile Driver side grip,Continuous rotation pile driver hot sale |
||
|---|---|---|---|
Product Description
The SV-400 Side Grip Pile Driver is a specialized form of hydraulic vibratory hammer, engineered as one of the best solutions for converting standard excavators into highly capable piling rigs. It is specifically designed for challenging construction environments with low clearance and narrow spaces, such as inside factories, under bridges, or in dense urban areas. By mounting directly onto an excavator, it provides a stable and efficient platform for driving and extracting various pile types, including steel sheet piles, H-beams, and steel pipes.
Key Features & Advantages
Superior Maneuverability and Precision
The SV-400 is built for precision and versatility. It features a robust slewing support and a high-pressure swing cylinder, enabling full 360 degree continuous rotation Hot Sale models are known for. This allows operators to position piles accurately from any angle without repositioning the carrier excavator. Furthermore, the unit is equipped with an Exporters bidirectional tilt driving head, which can tilt ±30 degrees. This function is crucial for installing batter piles or correcting the angle of a pile during driving, ensuring structural integrity and meeting complex design specifications.
The SV-400 is built for precision and versatility. It features a robust slewing support and a high-pressure swing cylinder, enabling full 360 degree continuous rotation Hot Sale models are known for. This allows operators to position piles accurately from any angle without repositioning the carrier excavator. Furthermore, the unit is equipped with an Exporters bidirectional tilt driving head, which can tilt ±30 degrees. This function is crucial for installing batter piles or correcting the angle of a pile during driving, ensuring structural integrity and meeting complex design specifications.
Engineered for Confined Spaces
A primary advantage of the SV-400 is its Custom confined space adaptation solution. Unlike traditional top-grip hammers that require significant overhead clearance, the side-grip design clamps the pile from the side and bottom. This allows it to operate effectively in areas with severe height restrictions, such as inside existing structures or under overpasses. The compact design and side-clamping mechanism make it an indispensable tool for modern infrastructure projects in crowded cities across Southeast Asia, India, and Russia.
A primary advantage of the SV-400 is its Custom confined space adaptation solution. Unlike traditional top-grip hammers that require significant overhead clearance, the side-grip design clamps the pile from the side and bottom. This allows it to operate effectively in areas with severe height restrictions, such as inside existing structures or under overpasses. The compact design and side-clamping mechanism make it an indispensable tool for modern infrastructure projects in crowded cities across Southeast Asia, India, and Russia.
Versatility and Efficiency
The machine is equipped with a quick tool change system Made In China, allowing for rapid adaptation to different job requirements. The multifunctional fixture system features a replaceable standard clamp seat interface, making it easy to switch between clamps for steel sheet piles (SP-II ~ IV w), H-beams (H180~H500), and circular pipe piles (Φ90~630mm). This versatility means one machine can handle a wide range of tasks, reducing the need for multiple specialized attachments and increasing overall jobsite efficiency.
The machine is equipped with a quick tool change system Made In China, allowing for rapid adaptation to different job requirements. The multifunctional fixture system features a replaceable standard clamp seat interface, making it easy to switch between clamps for steel sheet piles (SP-II ~ IV w), H-beams (H180~H500), and circular pipe piles (Φ90~630mm). This versatility means one machine can handle a wide range of tasks, reducing the need for multiple specialized attachments and increasing overall jobsite efficiency.
Robust and Reliable Construction
As a leading product from Exporters Hydraulic pile driver manufacturers, the SV-400 is built for durability. It features a double-side clamping cylinder drive with an accumulator for consistent pressure and high-strength arms for a secure grip. The main components, including imported hydraulic motors, bearings, and high-strength gearboxes, are selected for longevity. The electrical control system meets IP76 waterproof standards, ensuring reliable operation even in harsh, wet conditions.
As a leading product from Exporters Hydraulic pile driver manufacturers, the SV-400 is built for durability. It features a double-side clamping cylinder drive with an accumulator for consistent pressure and high-strength arms for a secure grip. The main components, including imported hydraulic motors, bearings, and high-strength gearboxes, are selected for longevity. The electrical control system meets IP76 waterproof standards, ensuring reliable operation even in harsh, wet conditions.
Technical Parameters (SV-400)
| Item | Specification |
|---|---|
| Applicable Excavator (ton) | 32-40 |
| Eccentric Moment (kg.m) | 6.6 |
| Centrifugal Force (kN) | 656 |
| Frequency (rpm) | 2300-3000 |
| Side Clamp Force (kN) | 465 |
| Bottom Clamp Force (kN) | 520 |
| Operation Pressure (Mpa) | 32 |
| Operation Flow (l/min) | 280-360 |
| Rotate/Tilt Degree | 360/±30 |
| Weight (kg) | 3870 |
Frequently Asked Questions (FAQ)
Q: Can the SV-400 operate in low-headroom environments?
A: Yes, this is its primary function. The side-grip design is a Custom confined space adaptation solution perfect for working under bridges, inside factories, and in other areas with limited vertical space.
A: Yes, this is its primary function. The side-grip design is a Custom confined space adaptation solution perfect for working under bridges, inside factories, and in other areas with limited vertical space.
Q: How does the machine handle different types of piles?
A: It features a quick tool change system Made In China. You can easily swap the clamp fixtures to handle steel sheet piles, H-beams, and steel pipes, making it a highly versatile piece of equipment.
A: It features a quick tool change system Made In China. You can easily swap the clamp fixtures to handle steel sheet piles, H-beams, and steel pipes, making it a highly versatile piece of equipment.
Q: What kind of rotational and tilting capabilities does it have?
A: The driver offers full 360 degree continuous rotation Hot Sale models are famous for, along with an Exporters bidirectional tilt driving head that provides ±30 degrees of tilt for precise pile placement.
A: The driver offers full 360 degree continuous rotation Hot Sale models are famous for, along with an Exporters bidirectional tilt driving head that provides ±30 degrees of tilt for precise pile placement.
Q: Is this product available for international export?
A: Absolutely. As a leading model from Exporters Hydraulic pile driver suppliers, the SV-400 is built to international standards and is ready for deployment on jobsites worldwide.
A: Absolutely. As a leading model from Exporters Hydraulic pile driver suppliers, the SV-400 is built to international standards and is ready for deployment on jobsites worldwide.
