Ultra Small Lightweight Mini Vibro Hammer For Excavator

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Solar Pile Driver And Also Applicable For Other Types Of Piling | Feature | Capable Of Driving Long Piles In Hard Soil Condition |
---|---|---|---|
Vibration Frequency | 2500 Rpm | Operation Pressure | 30 Mpa |
Centrifugal Force | 172 KN | Max.Pile Length | 8 M |
Arm Weight | 260 Kg | Hammer Weight | 1100 Kg |
Color | Blue/Yellow/Red/White, Customized Color Available | Material | Steel, Core Materials Are All Imported |
HS Code | 8430100000 As Pile Driver Accessories | Type | Hydraulic Vibrating Hammer |
Highlight | Lightweight Mini Vibro Hammer,Excavator Mini Vibro Hammer,172 KN Mini Excavator Pile Driver |

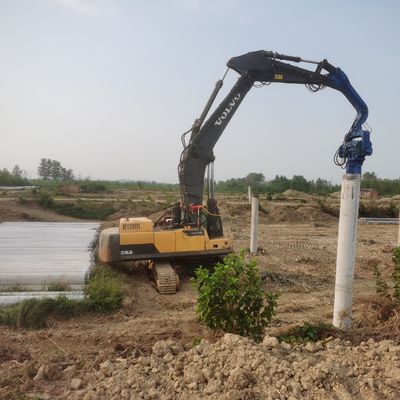

Ultra-small and lightweight mini vibro hammer for small excavator
There was a time when people used to know that small excavator cannot be fitted with pile driver! In 2009 VIBRA research and development team solve the problem that small foundation pile cannot be mechanized construction piling work. Its birth fills the industry gap and changed the history, VIBRA has 3 models of mini pile driver namely FV100, FV150 and FV250 can be fitted with excavator from 6 to 18 ton. The structures are ultra-small and lightweight, and the vibration force is maximized. It can be use in the construction of narrow river course and house foundation, drawing steel sheet piles, cement piles, wooden piles, etc.
Description
Mini hydraulic pile driver for the company's original products, its birth to fill the industry gap; Changed the history of small excavator can not be refitted pile driver; Solve the problem that small foundation pile can not be mechanized construction.
This series of models for the new rural reconstruction of the basic engineering construction has made an outstanding contribution.
Advantages
1. The structure is ultra-small and lightweight, and the vibration force is maximized.
2. Upgraded to the fourth generation model, more reasonable mechanical structure, high stability of the machine;
3. It can be used in the construction of narrow river course and house foundation, and can be used for drawing steel sheet piles, cement piles, wooden piles, etc.
Matched model: 6-18 ton excavator
Technical Parameter
Item | FV-100 | FV-150 |
Vibration Frequency (rpm) | 2500 | 2800 |
Operation Pressure (Mpa) | 30 | 32 |
Centrifugal Force (KN) | 117 | 172 |
Max.Pile Length (m) | 6 | 8 |
Arm Weight (kg) | 160 | 260 |
Hammer Weight (kg) | 850 | 1100 |
Excavator (T) | 7-12 | 12-17 |
Working Principle
Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.
The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.
Machinery Characteristics
- The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
- The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
- Mini and light weight design make application flexible.
- Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
- The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice
About Us
Shanghai Yekun Construction Machinery Co., Ltd. was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.
We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.
Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.
FAQ
Q: How long is the warranty period?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ?
A: One set is available.
Q: What's the payment method?
A: We accept L/C, T/T and D/P payment.
Q: What is the delivery time?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine?
A: Of course you can.
Q: How is your product quality?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
