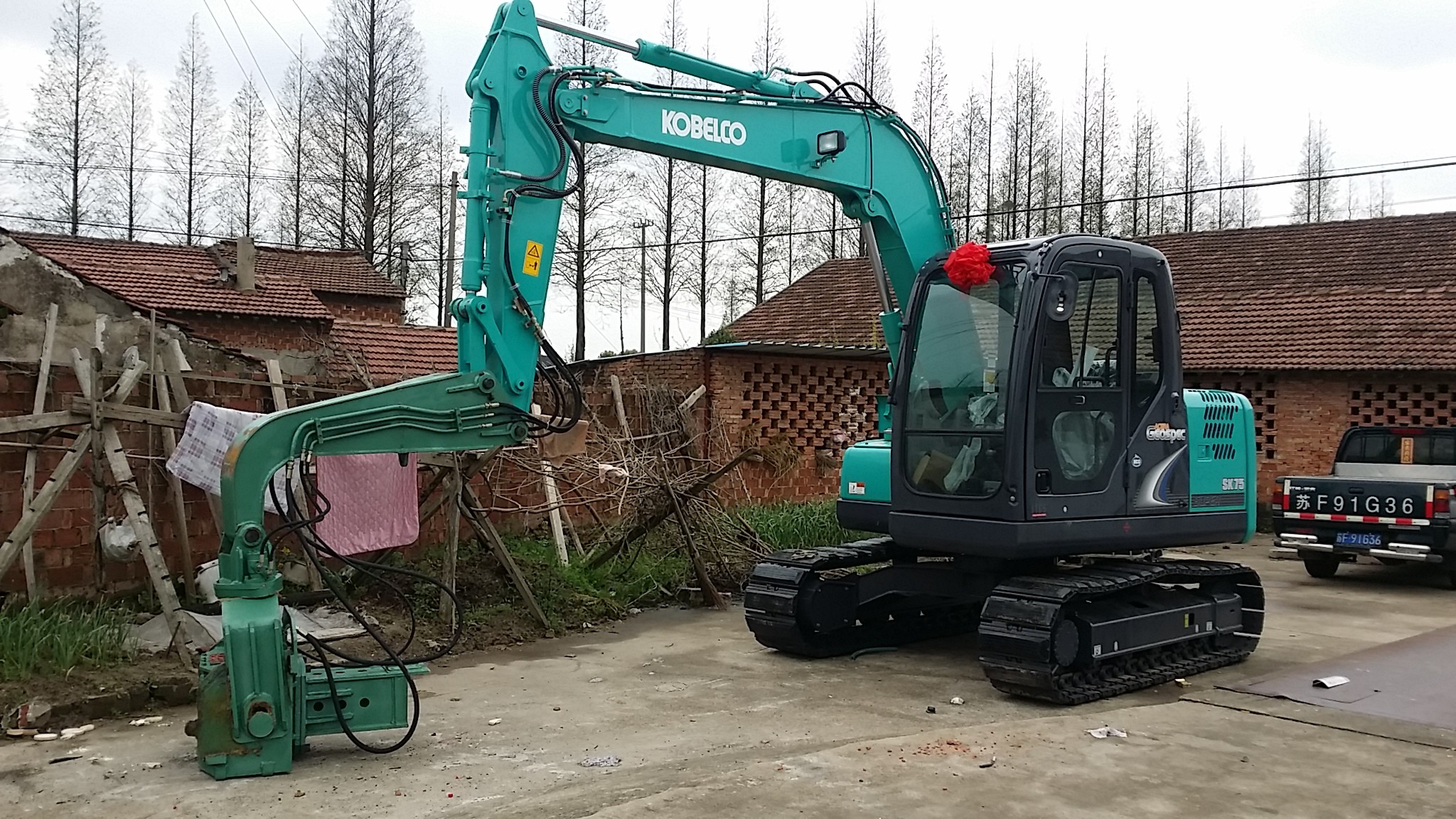

Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces

  • Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces
  • Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces
  • Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces
  • Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-150
Minimum Order Quantity 1
Price Negotiation
Packaging Details 4 CBM
Delivery Time 7-35 work days
Payment Terms T/T,D/P,L/C,Western Union,MoneyGram
Supply Ability 20 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ultra-small Structure And Lightweight Vibro Hammer Feature Easy To Install And Possible To Drive Any Pile
Vibration Frequency 2500 Rpm Operation Pressure 30 Mpa
Centrifugal Force 172 KN Max.Pile Length 8 M
Arm Weight 260 Kg Hammer Weight 1100 Kg
Excavator 12~17 Ton Color Blue/Yellow/Red/White, Customized Color Available
Material Steel, Core Materials Are All Imported HS Code 8430100000
Highlight

10 Meter Mini Excavator Pile Driver

,

Sheet Piling Vibrating Hammer
Leave a Message
Product Description

Product Name: Pile Hammer - Compact Solution for Sheet Piling in Tight Spaces

Core Keywords: pile hammer, hydraulic pile hammer, mini pile hammer, vibrating hammer, sheet piling hammer, compact pile driver

Product Overview

The VIBRA Mini Series Hydraulic Pile Hammer revolutionizes small-scale foundation construction with its ultra-compact design and powerful performance. Specifically engineered for budget-conscious projects requiring 6-10 meter piling depth, this innovative equipment combines advanced vibration technology with exceptional portability. Ideal for narrow spaces and residential foundations, it enables cost-effective piling solutions without compromising on quality or performance.

Key Features
  • Ultra-compact fourth-generation mechanical design
  • Two-stage vibration frequency control system
  • Integrated import control valve for precision operation
  • Lightweight construction for enhanced mobility
  • Multi-functional compatibility for various pile types
  • Direct excavator hydraulic system integration
Product Advantages

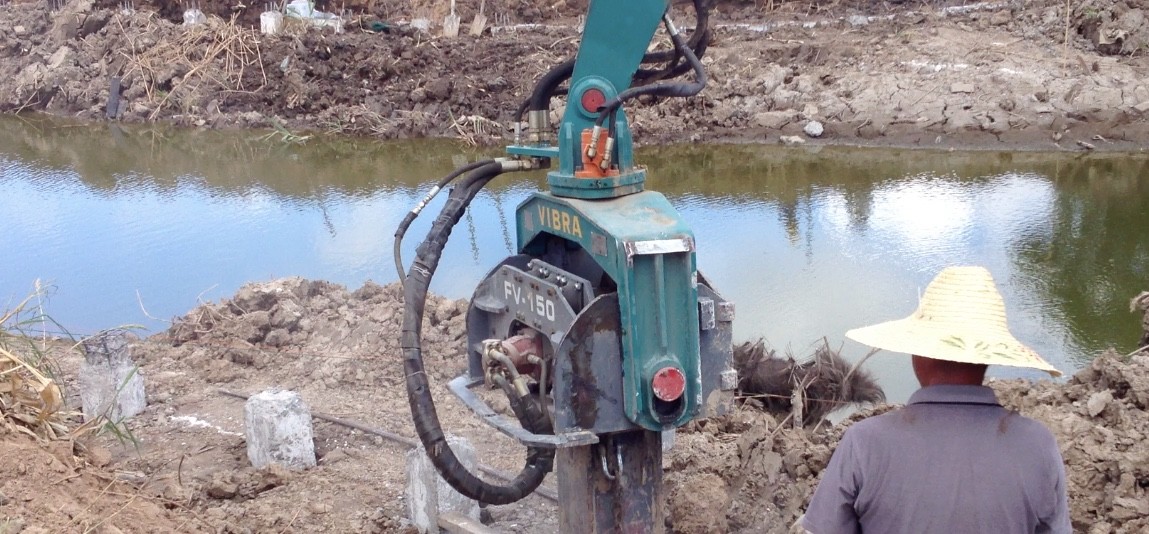

  1. Space Optimization: Ultra-small structure operates effectively in narrow river courses and confined residential areas
  2. Cost Efficiency: Budget-friendly solution for 6-10 meter piling projects without sacrificing quality
  3. Maximum Power: Advanced vibration technology delivers 117-265 kN centrifugal force despite compact dimensions
  4. Enhanced Stability: Upgraded mechanical structure ensures reliable performance in challenging conditions
  5. Fuel Economy: Utilizes excavator's hydraulic system, eliminating need for additional power sources
  6. Easy Operation: Simple controls enable quick learning curve for excavator operators
  7. Versatile Application: Handles steel sheet piles, cement piles, wood piles with equal efficiency
Technical Specifications
Parameter FV-100 FV-150 FV-250
Vibration Frequency 2500 rpm 2500 rpm 2800 rpm
Operating Pressure 30 MPa 30 MPa 32 MPa
Centrifugal Force 117 kN 172 kN 265 kN
Max Pile Length 6 m 8 m 10 m
Arm Weight 160 kg 260 kg 500 kg
Hammer Weight 850 kg 1100 kg 1700 kg
Suitable Excavator 6-12 T 12-17 T 20-25 T
Machinery Characteristics
  • Precision Control: Independent action control via integrated import valves facilitates easy maintenance
  • Adaptive Performance: Two-stage vibration with double pump confluence overcomes special geological challenges
  • Transport Efficiency: Lightweight design reduces fuel consumption and transportation costs
  • Quick Deployment: Simple operation allows experienced excavator operators to master quickly
  • Reliable Performance: Proven durability across diverse construction environments
Application Range
  • Residential foundation construction

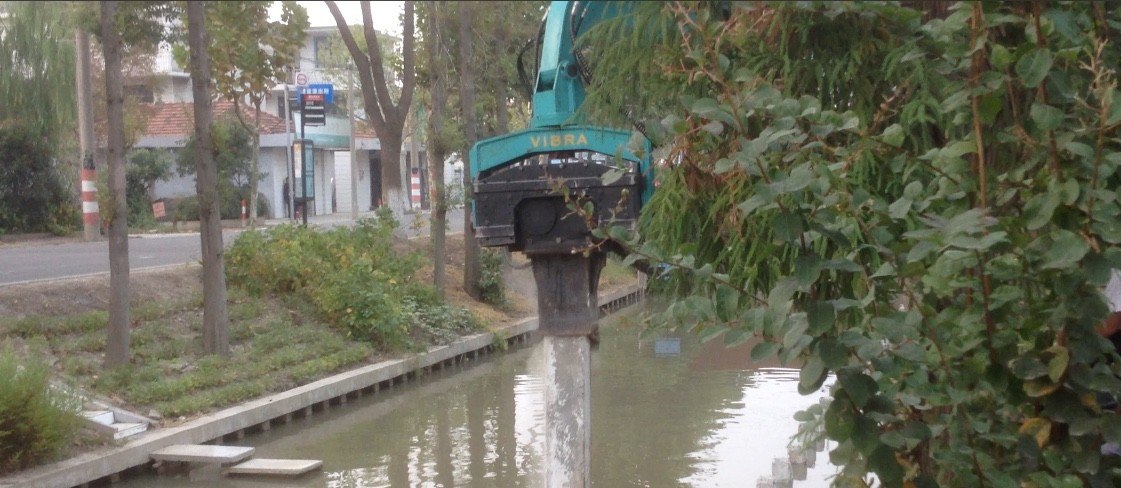

  • Narrow river course projects
  • Bridge and pier foundations
  • Cofferdam construction
  • Urban infrastructure development
  • Budget-conscious commercial projects
Frequently Asked Questions
Q: What makes your pile hammer suitable for budget-conscious projects?
A: Our VIBRA Mini Series delivers professional-grade performance at an accessible price point, specifically designed for customers requiring 6-10 meter piling solutions without premium costs.
Q: Are you a manufacturer or distributor?
A: We are direct manufacturers with over 12 years of expertise, operating from our Suzhou factory with an open invitation for client visits during working hours.
Q: What types of excavators are compatible with your equipment?
A: Our FV series fits 6-25 ton excavators, with specific models designed for different weight classes to ensure optimal performance and compatibility.
Q: What is your warranty and delivery policy?
A: We provide 12-month warranty on main components with delivery within 7-35 days to Shanghai port. Minimum order is one set with T/T and D/P payment options.
Q: Can international customers purchase your equipment?
A: Yes, we serve customers worldwide including New Zealand, Malaysia, Indonesia, and work with major brands like XCMG, SANY, and Caterpillar.
Why Choose VIBRA
  • Direct factory pricing and quality control
  • Global customer base with proven track record
  • Continuous innovation since initial R&D in 2009
  • Professional technical advisory services
  • Comprehensive dealer support programs
  • Strict compliance with industry technical standards
