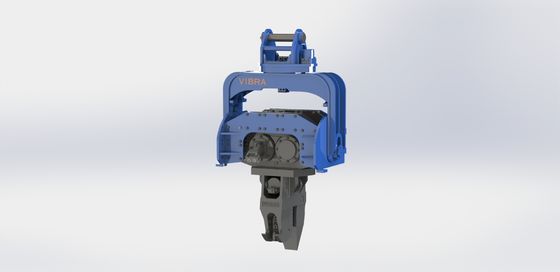

Pile Driver - 8m Depth & 172KN Force for Hard Soil

  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
  • Pile Driver - 8m Depth & 172KN Force for Hard Soil
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-150
Minimum Order Quantity 1
Price Negotiation
Packaging Details 4.5 CBM
Delivery Time 8-35 work days
Payment Terms T/T,D/P,Western Union,MoneyGram,L/C
Supply Ability 15 Set/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Mini Pile Driving Equipment For Mini Excavator Feature Suitable For Hard Soil Piling Work
Vibration Frequency 2800rpm Operation Pressure 32 Mpa
Centrifugal Force 172KN Max.Pile Length 8m
Arm Weight 260kg Hammer Weight 1100kg
Excavator 12-17 Ton Color Blue/Yellow, Customized Color Available
Material Steel, Core Materials Are All Imported Type Hydraulic Vibrating Hammer
HS Code 8430100000 Condition New And Used Both Available
Highlight

8 Meter Vibro Hammer

,

Hard Soil Drive Pile Vibro Hammer
Leave a Message
Product Description

Product Name: VIBRA 8m Hard Soil Pile Driver with 172KN Force

Core Keywords: pile driver, hard soil pile driver, hydraulic pile driver, vibro hammer, 8m pile driver, excavator mounted pile driver

Product Overview

The VIBRA Hard Soil Pile Driver represents a breakthrough in challenging foundation construction, specifically engineered to drive piles up to 8 meters in difficult soil conditions. With an impressive 172KN centrifugal force and advanced vibration technology, this innovative equipment solves the industry challenge of mechanized piling in hard soil while maintaining the compact design that enables small excavators to perform heavy-duty foundation work.

Working Principle

The VIBRA system utilizes high-frequency vibration generated by dual eccentric axes rotating at high speed in opposite directions. This sophisticated mechanism cancels horizontal forces while combining vertical forces to create powerful vertical-frequency vibration. The vibration liquefies surrounding soil and breaks its structure, significantly reducing friction and enabling efficient pile driving through the excavator's hydraulic system.

Key Features

  • High-frequency vibration system (2500-2800 RPM)
  • Dual eccentric axis technology for vertical vibration
  • Two-stage vibration frequency control
  • Integrated import control valve system
  • Compact and lightweight design
  • Direct excavator hydraulic integration

Product Advantages

  1. Hard Soil Performance: Specifically designed for challenging soil conditions with 172KN centrifugal force
  2. Depth Capacity: Capable of driving piles up to 8 meters in difficult terrain
  3. Fuel Efficiency: Utilizes excavator's hydraulic system without additional power requirements
  4. Enhanced Stability: Two-stage vibration control overcomes special geological challenges
  5. Easy Maintenance: Independent control valves facilitate quick inspection and service
  6. Operator Friendly: Simple operation learnable by experienced excavator operators
  7. Cost Effective: Reduces transportation and operational costs through compact design

Technical Specifications

Parameter FV-100 FV-150
Vibration Frequency 2500 rpm 2800 rpm
Operating Pressure 30 MPa 32 MPa
Centrifugal Force 117 kN 172 kN
Max Pile Length 6 m 8 m
Arm Weight 160 kg 260 kg
Hammer Weight 850 kg 1100 kg
Suitable Excavator 7-12 T 12-17 T

Machinery Characteristics

  • Precision Control: Integrated import valves enable independent action control
  • Adaptive Power: Double pump confluence system boosts excitation force for hard soil
  • Space Optimization: Compact design ensures flexibility in confined work areas
  • Economic Operation: Eliminates need for separate driving systems
  • Quick Learning Curve: Experienced excavator operators can master operation rapidly

Application Range

  • Hard soil foundation projects
  • Rural reconstruction initiatives
  • Infrastructure development
  • Residential foundation work
  • Challenging geological conditions

Frequently Asked Questions

Q: How does your pile driver handle hard soil conditions?

A: Our two-stage vibration system with double pump confluence generates 172KN centrifugal force, specifically engineered to break through challenging soil structures and reduce friction for efficient pile driving.

Q: Are you a direct manufacturer?

A: Yes, we have over 12 years of manufacturing experience with our factory in Suzhou, and we welcome client visits to see our production facilities and quality control processes.

Q: What is the maximum depth achievable in hard soil?

A: The FV-150 model can drive piles up to 8 meters in hard soil conditions, making it ideal for deep foundation projects in challenging terrain.

Q: What is your warranty and delivery terms?

A: We provide 12-month warranty on main components with delivery within 7-35 days to Shanghai port. Minimum order is one set with T/T and D/P payment options.

Q: Do you serve international markets?

A: Yes, we have customers in New Zealand, Malaysia, Indonesia, and work with major brands including XCMG, SANY, Zoomlion, Caterpillar, and Hyundai.

Why Choose VIBRA

  • Specialized hard soil piling technology
  • Proven performance in challenging conditions
  • Direct manufacturing with quality control
  • Global customer base and recognition
  • Continuous innovation since 2014
  • Professional technical advisory services
