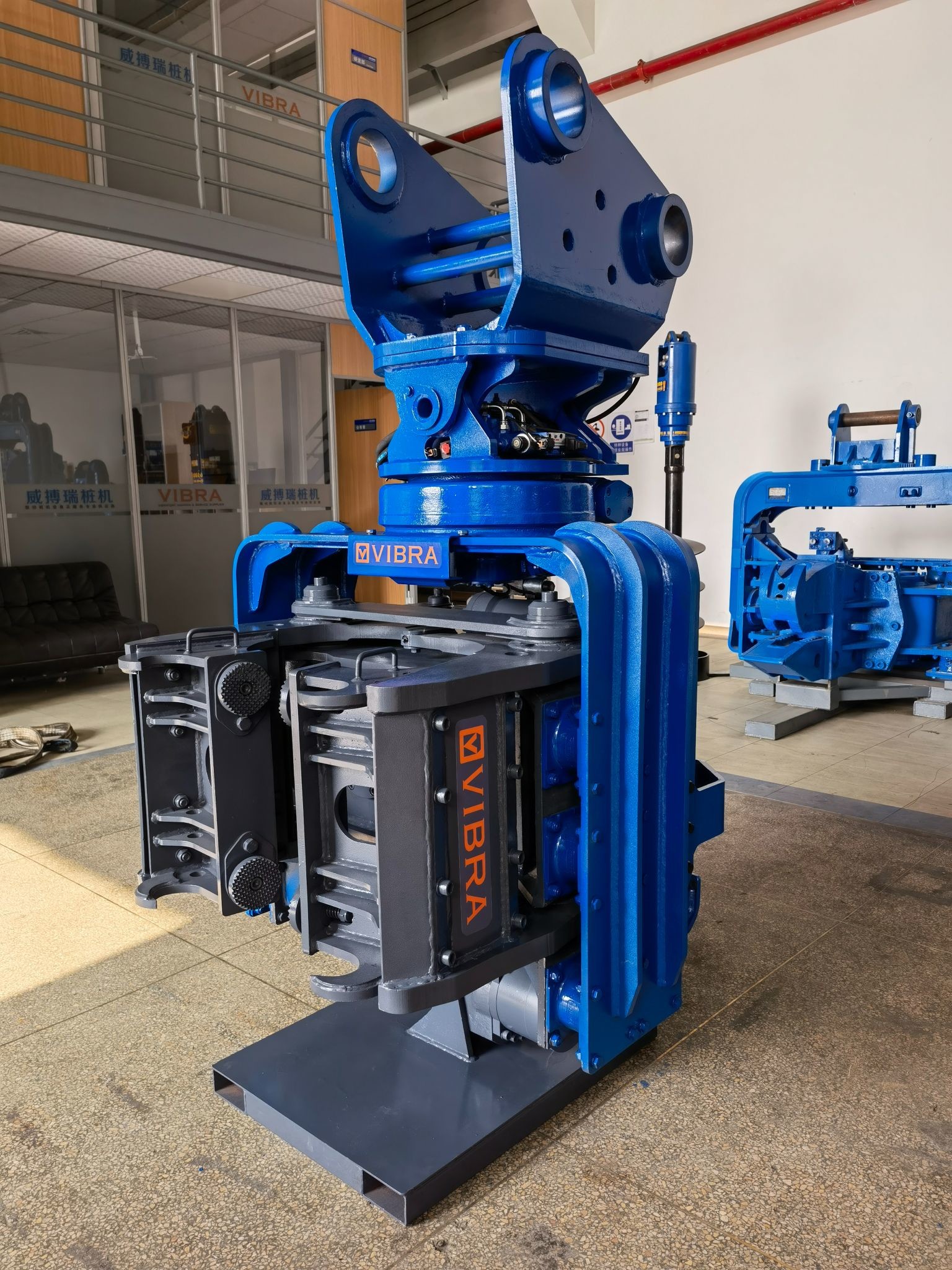

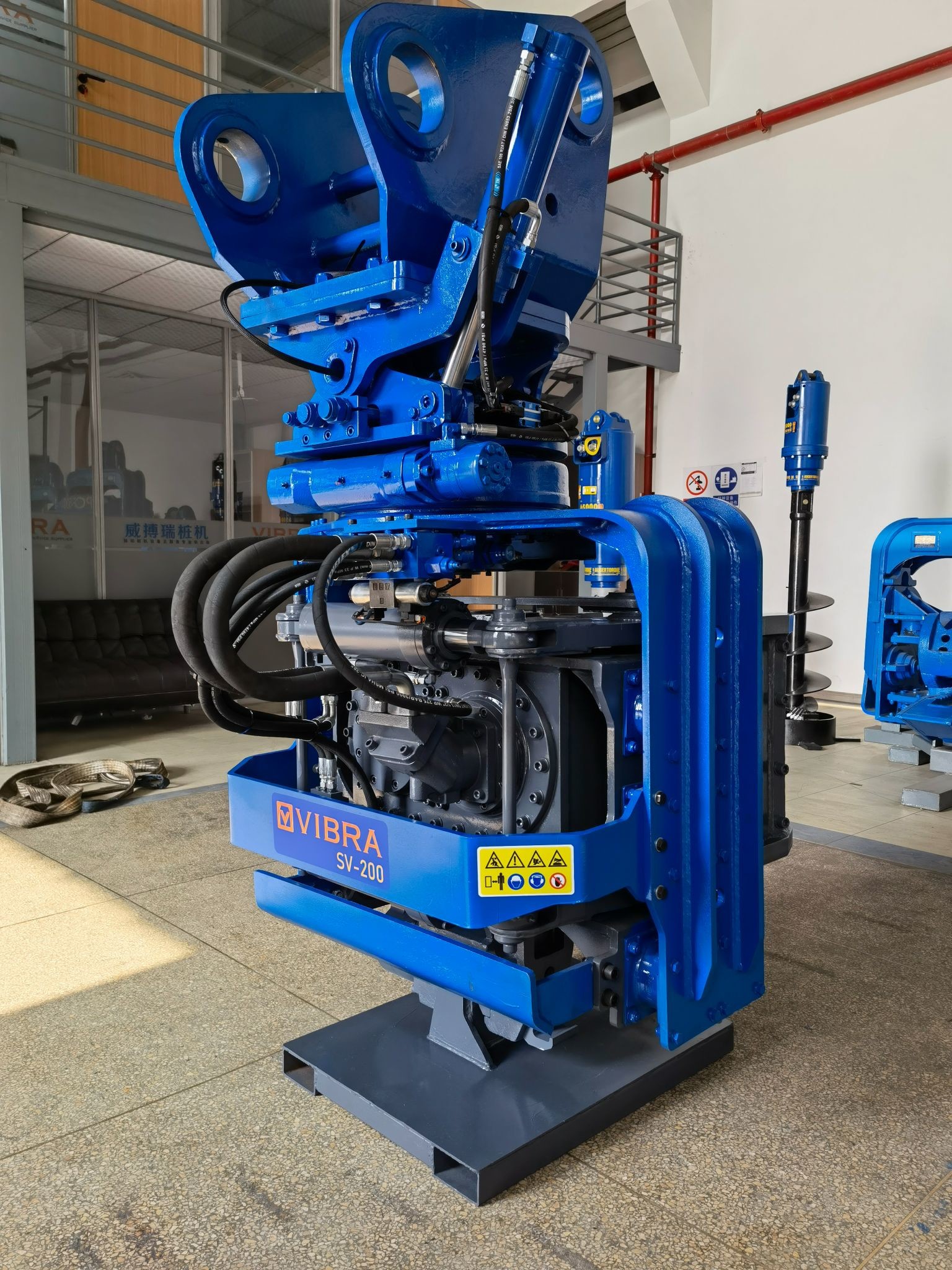

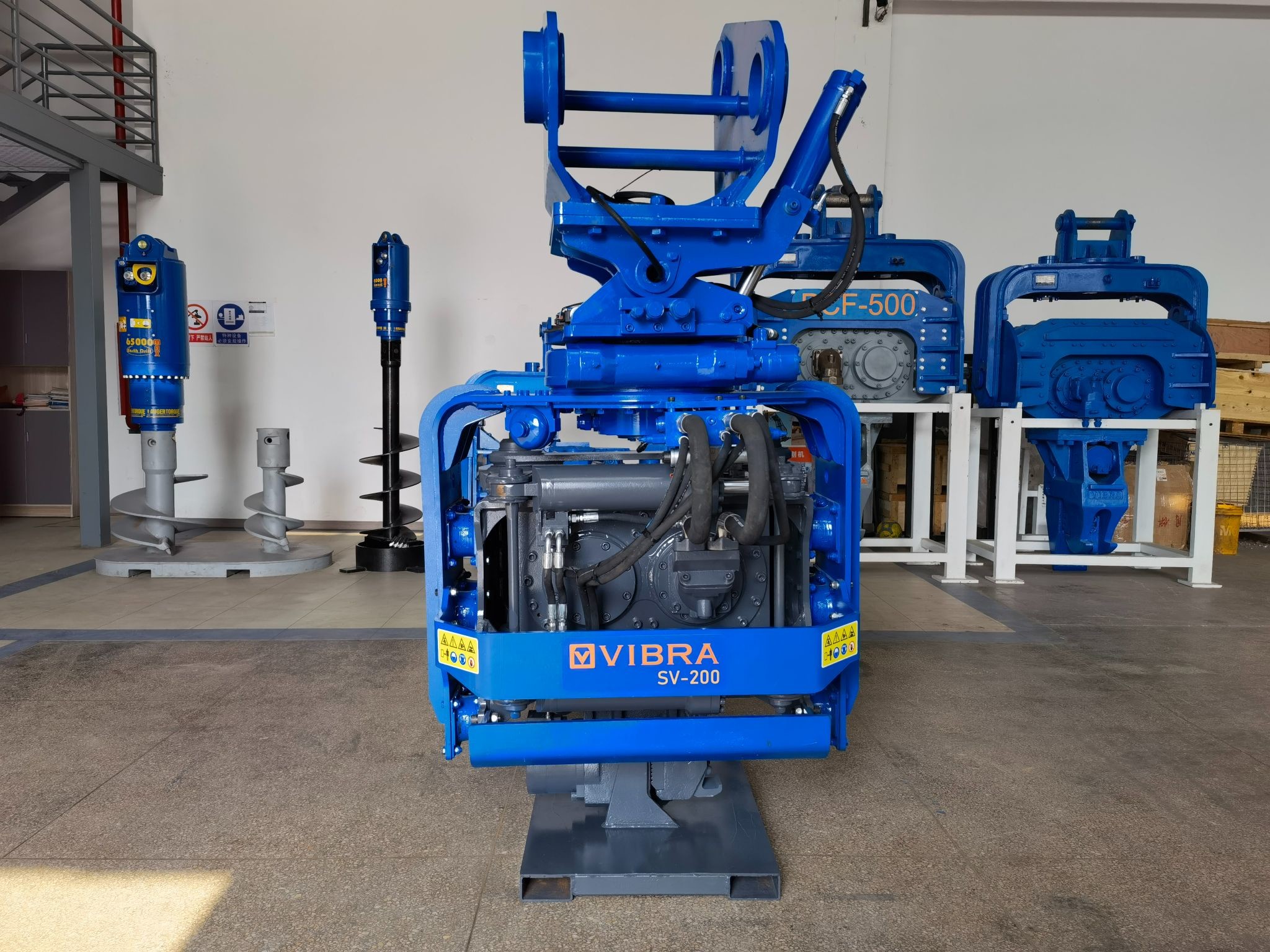

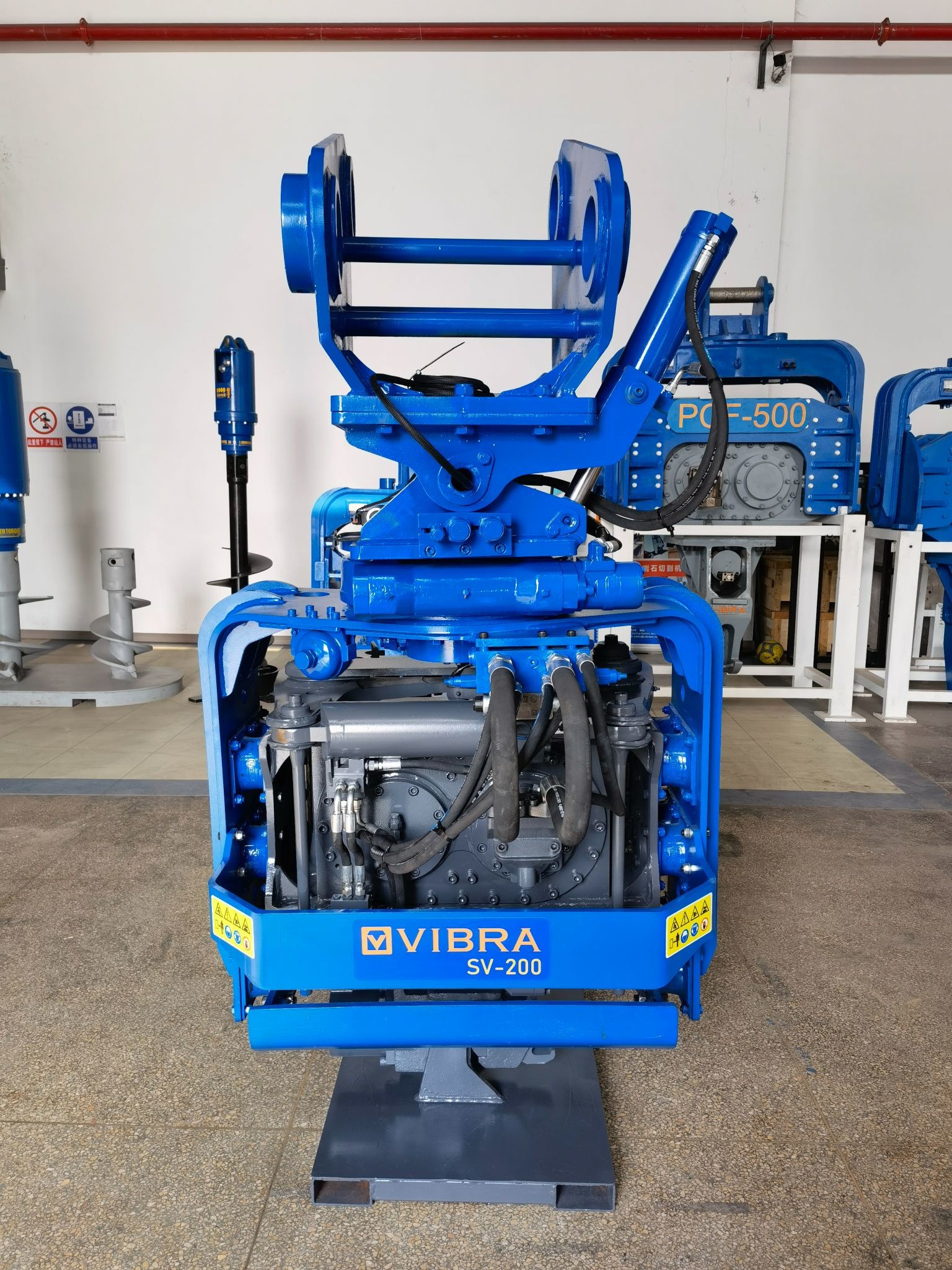

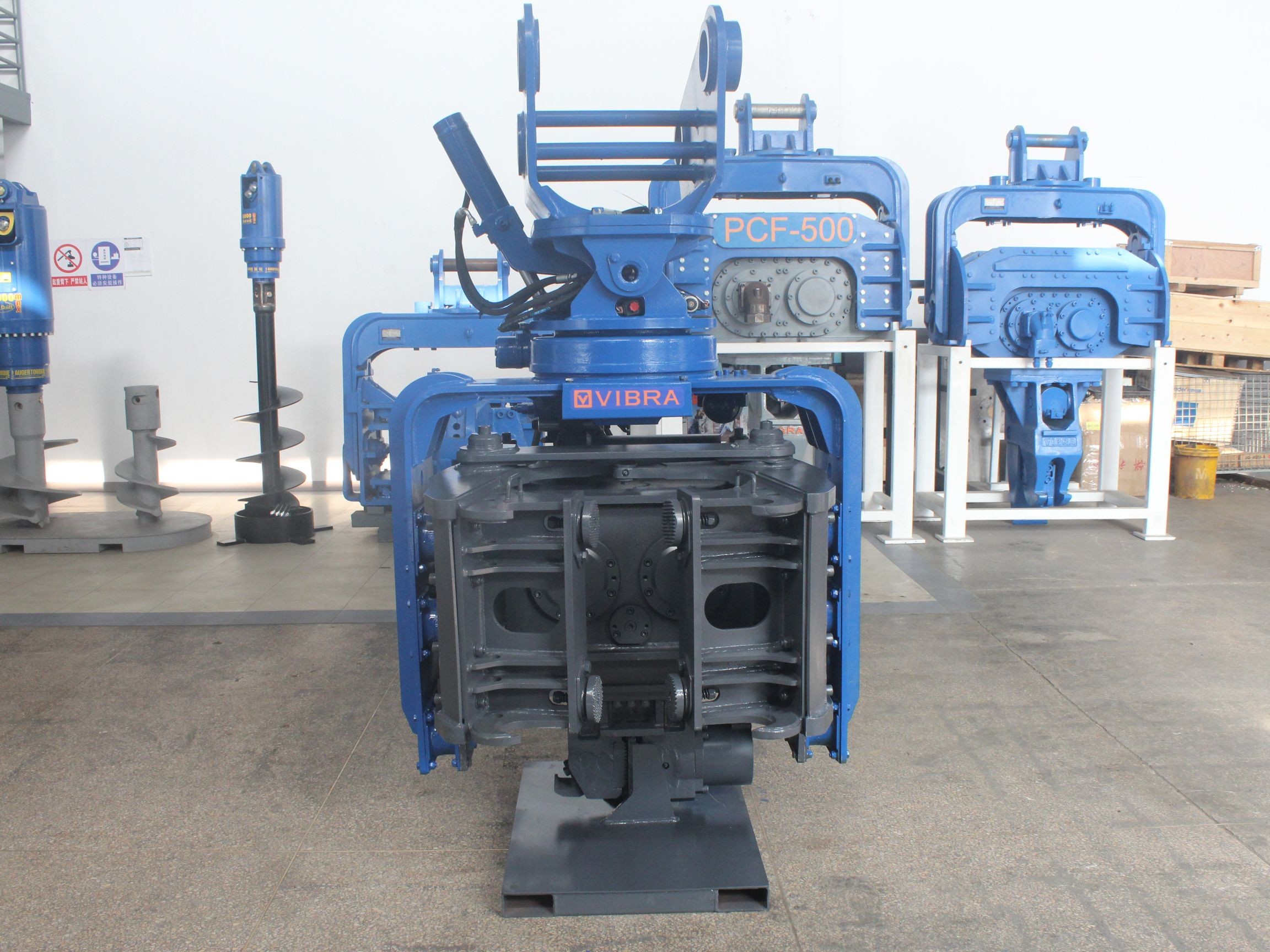

Pile Driver - Hydraulic Side Grip & Narrow Space Operation

  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
  • Pile Driver - Hydraulic Side Grip & Narrow Space Operation
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number SV-200
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 4 CBM
Delivery Time 15-35 days
Payment Terms T/T,D/P,Western Union,MoneyGram,L/C
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Side Grip Pile Driver Feature Pile Driving In Any Narrow Spaces
Vibration 3000 Rpm Centrifugal Force 332-384 KN
Hammer 1400-1700 Kg Excavator 20T
Material Steel, Core Materials Are All Imported Color Blue/Yellow, Customized Color Available
HS Code 8430100000 Size (LxWxH) 1320X1160X1820
Rotation/tilt Angle 360/+-30 Degree Eccentric Torque 3.07kgm
Highlight

Mini Excavator Sheet Pile Driver

,

Hydraulic Pile Driver For Mini Excavator

,

Side Grip Excavator Mounted Pile Driver
Leave a Message
Product Description
Product Name: VIBRA Hydraulic Side Grip Pile Driver

Core Keywords: pile driver, side grip pile driver, hydraulic pile driver, excavator mounted pile driver, narrow space pile driver, construction pile driver

Product Overview

The VIBRA Hydraulic Side Grip Pile Driver represents advanced engineering excellence in construction equipment. Manufactured by Shanghai Yekun Machinery since 2009, this innovative machine features a revolutionary side grip system that enables efficient pile driving in confined working areas. With its 360° rotation capability and versatile pile compatibility, it has become the preferred choice for challenging construction projects worldwide.

Design Features
Rotary Oscillation Mechanism
  • High torque slewing support
  • High pressure swing cylinder
  • Split control valve with compact central swivel
  • Front oil circuit interface
Gantry Hanger
  • One-piece structure design
  • High pressure accumulator
  • Split control valve system
  • Front oil circuit interface
Holding Clip System
  • High strength arm construction
  • Dual high pressure cylinders
  • Interchangeable collet system
  • Simultaneous clamping and release mechanism
Vibrating Body
  • Imported drive motor
  • High strength box design
  • High speed gear system
  • Symmetrical eccentric arrangement
  • Enhanced oil drainage system
Bottom Clip System
  • One-piece cast steel construction
  • Integrated cylinder design
  • Durable tooth plate
  • Pile hook mechanism
Product Benefits
  1. Wide Compatibility: Suitable for sheet piles, casing piles, H-beams, I-beams, and tube piles
  2. Ground Adaptability: Effective in various soil conditions and ground types
  3. Efficient Energy Transfer: Optimal driving energy transmission to piles
  4. Precision Control: Successful shifting and turning mechanism for accurate placement
  5. Durability: Robust construction ensures long service life with simple maintenance
  6. Easy Handling: Simple pile handling and pitching operation
  7. Flexible Operation: Wide opening with synchronized movement
  8. Full Rotation: 360°±30° rotation capability for versatile positioning
Technical Advantages
  • Enhanced Efficiency: Symmetrical eccentric arrangement maximizes vibration force
  • Reliable Performance: Imported drive motor ensures consistent operation
  • Quick Setup: Split control valve system enables fast installation
  • Safety Assurance: Dual cylinder system provides secure clamping
  • Low Maintenance: Optimized design reduces downtime and service requirements
Frequently Asked Questions
Q: What types of piles can your side grip pile driver handle? A: Our equipment is compatible with various pile types including sheet piles, casing piles, H-beams, I-beams, steel and tube piles, making it suitable for diverse construction applications.
Q: What is the rotation capability of your pile driver? A: The machine features full 360° rotation with ±30° adjustment capability, allowing precise positioning and operation in confined spaces.
Q: What is your warranty and delivery terms? A: We offer 12-month warranty on main components with delivery within 7-35 days to Shanghai port. Minimum order quantity is one set with T/T and D/P payment options.
Q: Can you provide custom branding? A: Yes, we can incorporate your logo and provide customized solutions based on specific project requirements.
Q: Do you support dealer partnerships? A: We welcome dealers and offer comprehensive support including technical training and marketing assistance for successful market development.
Why Choose VIBRA Pile Driver
  • 15+ years of specialized manufacturing experience
  • Advanced German hydraulic technology integration
  • Strict quality control following international standards
  • Continuous innovation through international technical cooperation
  • Comprehensive after-sales service network
  • Global project references and case studies
