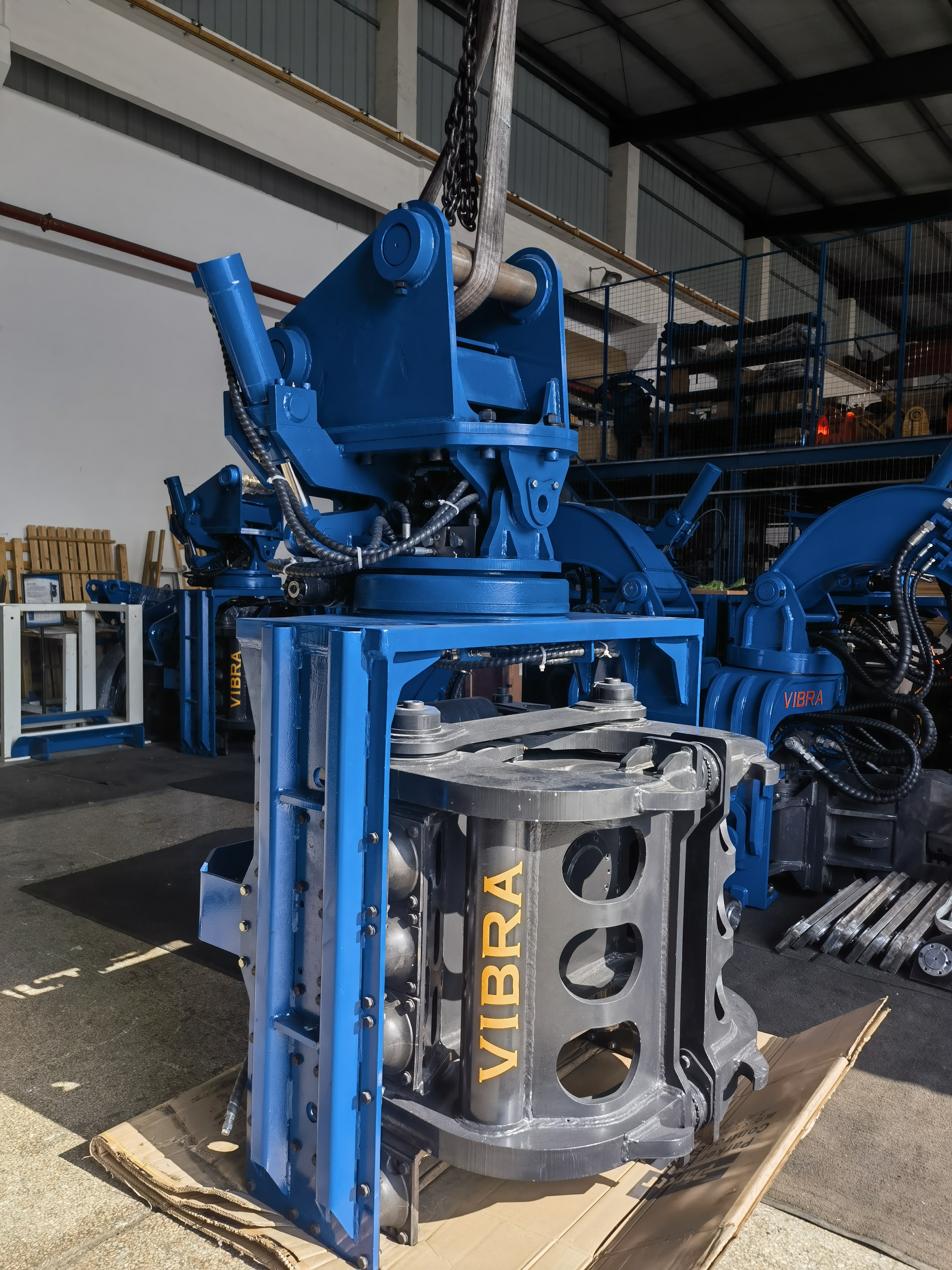

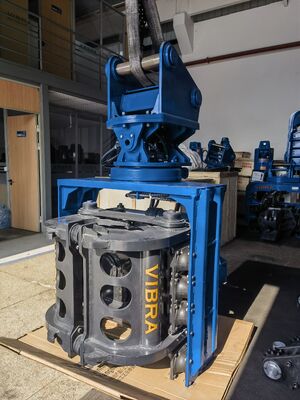

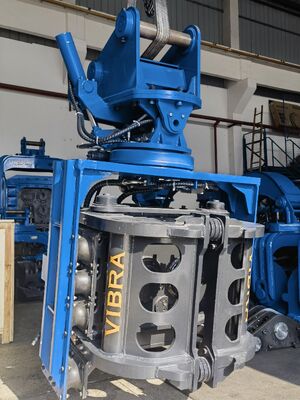

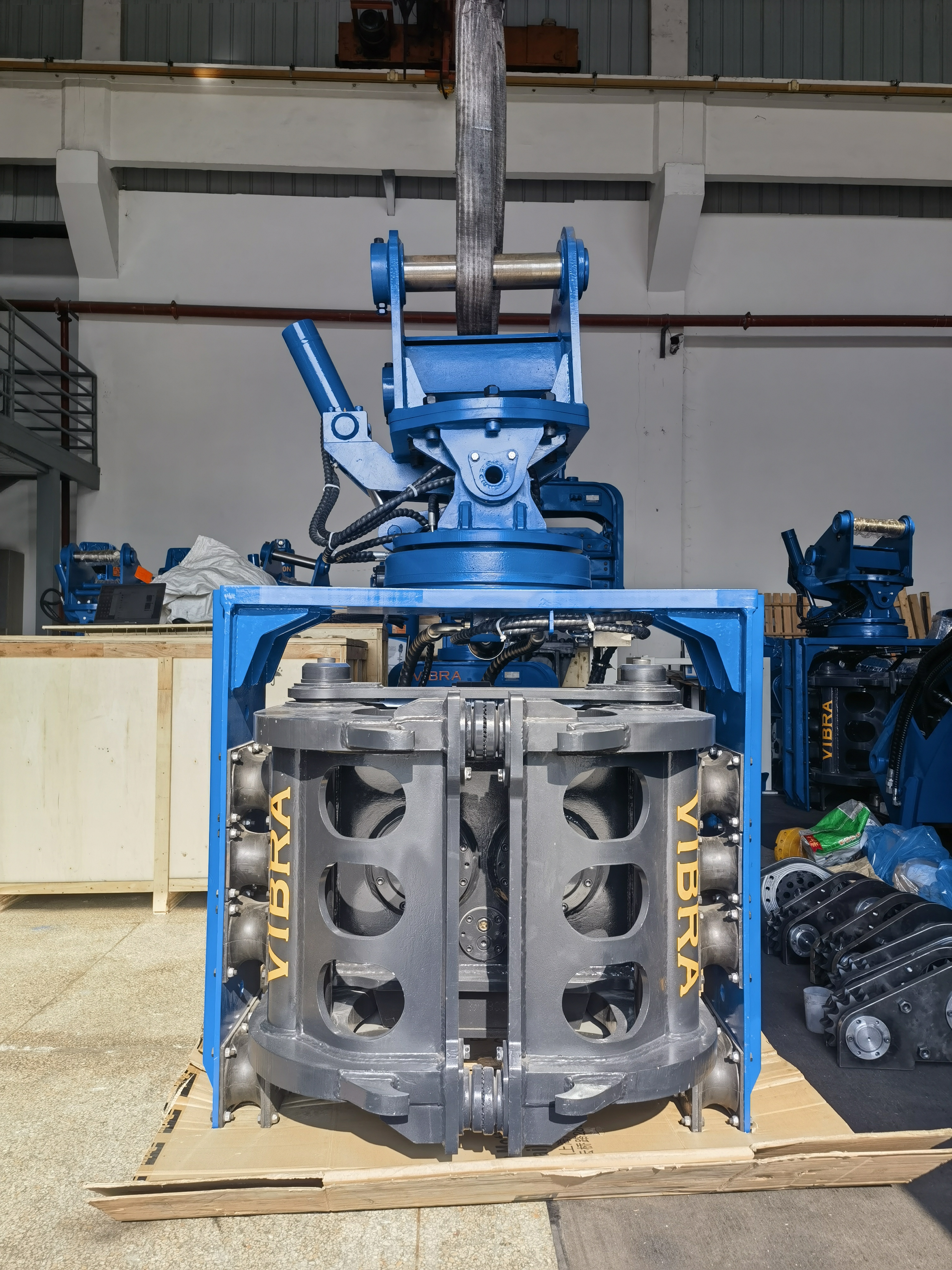

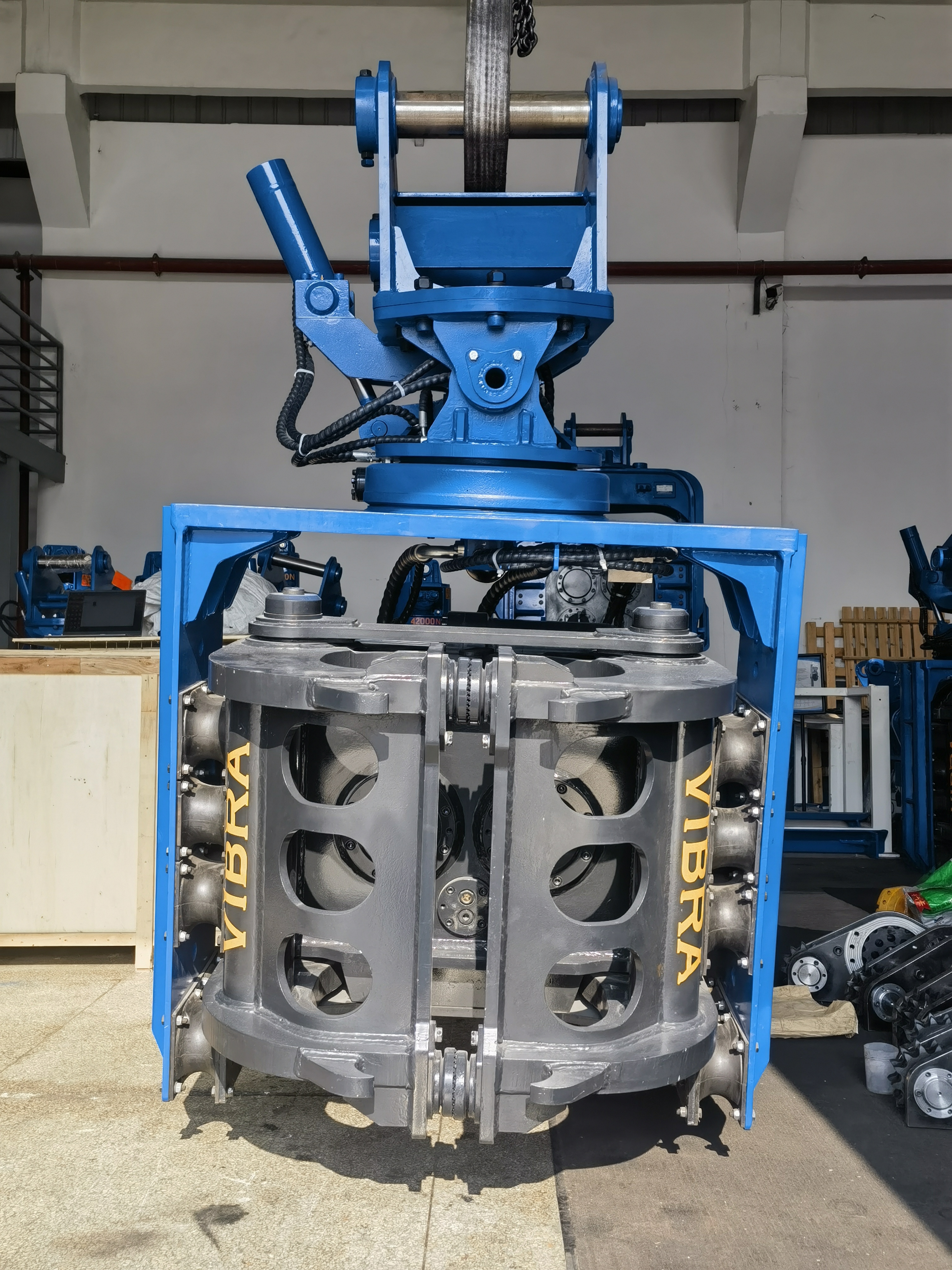

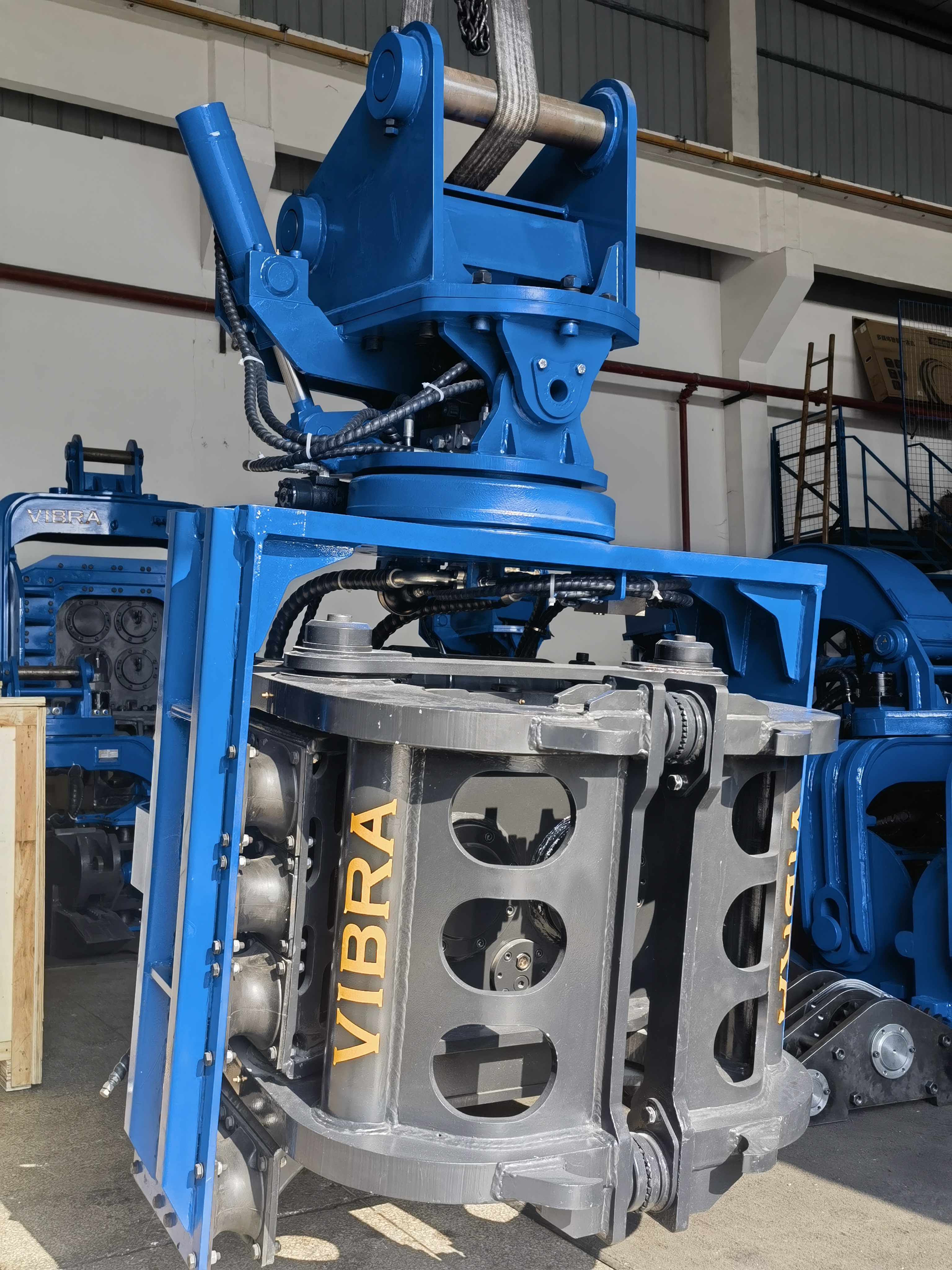

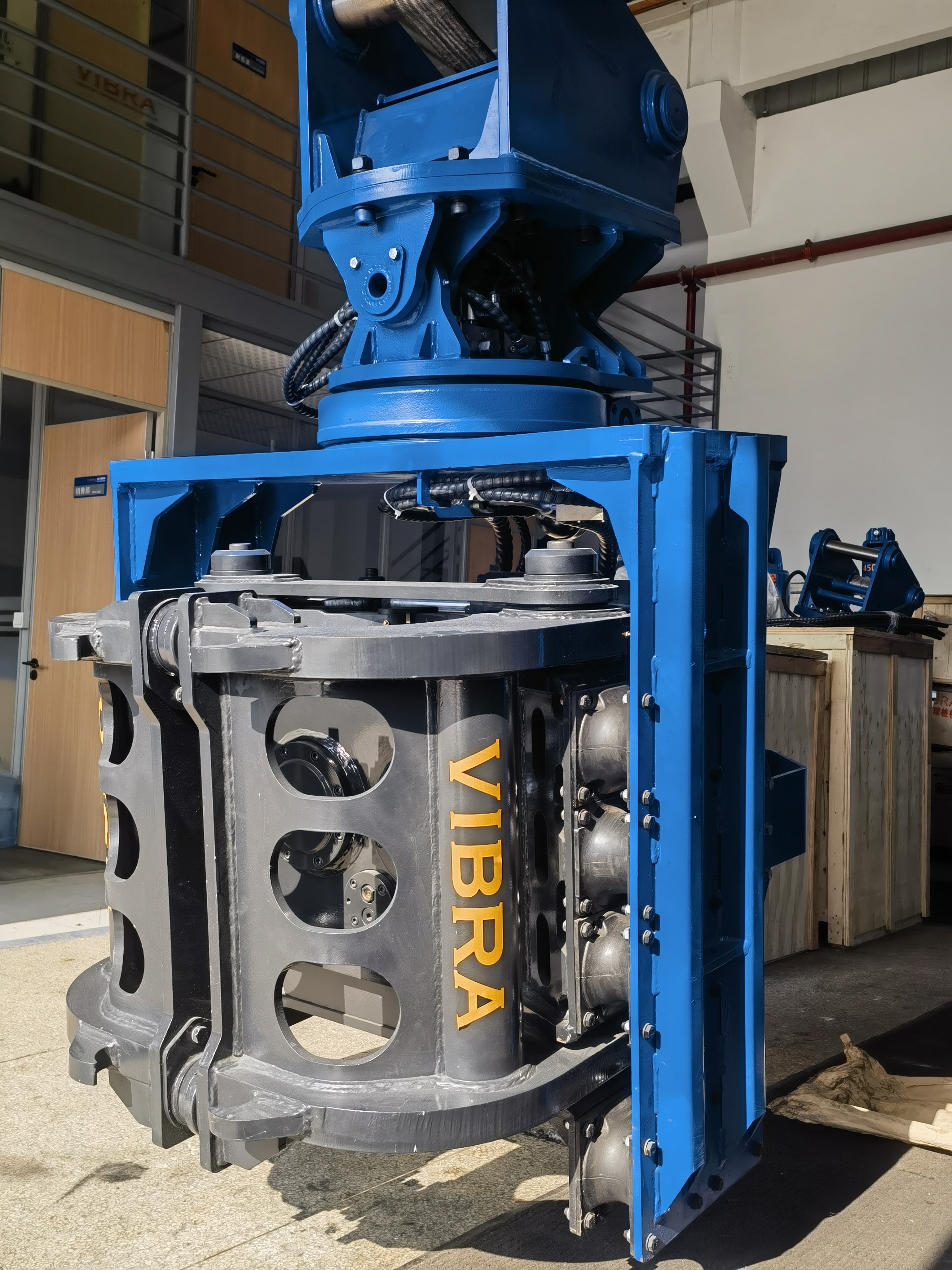

Powerful SV300 Hydraulic Side Grip Pile Driver for Bridges & Factories

The SV300 Side Grip Pile Driver is a robust and highly efficient hydraulic vibratory hammer system, specifically engineered to meet the demanding requirements of medium to large-scale foundation projects. Designed for seamless integration with 25-32 ton standard excavators, this model transforms your existing machinery into a powerful, multi-functional piling rig. The SV300 excels in environments with low overhead clearance and confined job sites, such as factory expansions, bridge underpasses, and urban infrastructure development. Equipped with a dual-clamp system offering 360-degree continuous rotation and bidirectional side tilt, it provides complete control over pile handling, positioning, driving, and extraction without the need for auxiliary cranes or support equipment.

At the heart of the SV300 is its advanced dual-clamp mechanism, combining a powerful side clamp and a stable bottom clamp to secure piles firmly during operation. This design is critical for maintaining precision and safety in low-headroom conditions where traditional piling leaders cannot operate. The machine features a multi-function fixture system with a replaceable standard clamp seat interface, enabling quick adaptation to various pile profiles including steel sheet piles, H-shaped steel beams, and circular pipe piles. Its direct excavator-mount design ensures minimal modification is required, significantly reducing setup time and investment costs compared to dedicated piling rigs. The reinforced frame and high-torque hydraulic motor ensure durability under continuous heavy-duty use.

• Superior Low Clearance Performance: Engineered to operate efficiently in spaces with restricted vertical height, making it the ideal choice for indoor projects, tunnel construction, and bridge rehabilitation.
• Complete Operational Freedom: The combination of 360° continuous rotation and ±30° side tilt allows for precise pile alignment from any angle, reducing excavator repositioning and increasing overall productivity.
• Exceptional Clamping Power: With a side clamp force of 385 kN and a bottom clamp force of 490 kN, the SV300 securely grips heavy and oversized piles, ensuring stable vibration transmission and preventing slippage during both driving and extraction.
• Versatile Pile Compatibility: Handles a wide range of pile types including steel sheet piles, H-beams, and pipe piles, maximizing equipment utilization across different projects.
• Robust Performance: Delivers a centrifugal force of 558 kN with a variable frequency range up to 3000 rpm, allowing adaptation to various soil conditions from soft ground to dense, compacted soils.
• Easy Integration: Designed for quick attachment to 25-32 ton excavators, utilizing the host machine's hydraulic system for simplified operation and maintenance.

• Unit Weight (Incl. Connector & Clamp): 3150 kg
• Eccentric Moment: 5.6 kgm
• Centrifugal Force: 558 kN
• Frequency Range: 2300-3000 rpm
• Side Clamp Force: 385 kN
• Bottom Clamp Force: 490 kN
• System Operating Pressure: 32 Mpa
• System Operating Flow: 220-280 L/min
• Rotation / Tilt Angle: 360° / ±30°
• Dimensions (LxWxH): 1343 x 1230 x 2923 mm
• Applicable Excavator: 25-32 Ton

The SV300 is ideally positioned for contractors in Southeast Asia, India, and Russia who require a balance of power and compactness. In Southeast Asia, it is perfect for urban infrastructure, riverbank protection, and industrial plant construction. For the Indian market, where infrastructure modernization is accelerating, the SV300 excels in railway overpasses, metro rail projects, and bridge foundation work. In Russia, with its diverse geological conditions ranging from soft soils to permafrost regions, the high centrifugal force and adjustable frequency make it adaptable to challenging ground conditions, while its low-clearance capability is valuable for industrial facility maintenance and expansion.
