Product Details
| Highlight | 656kN hydraulic vibratory hammer,side grip pile driver for excavators,SV-400 vibratory hammer with warranty |
||
|---|---|---|---|
Product Description

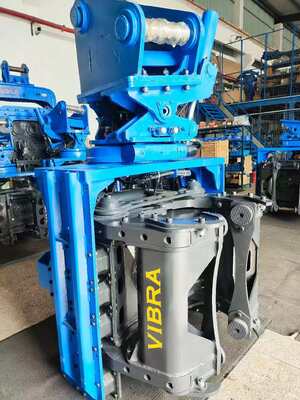

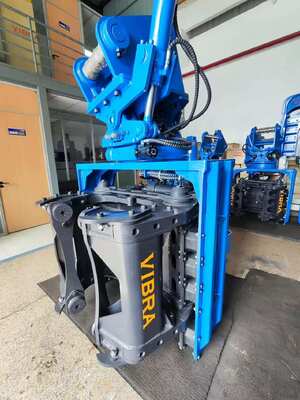

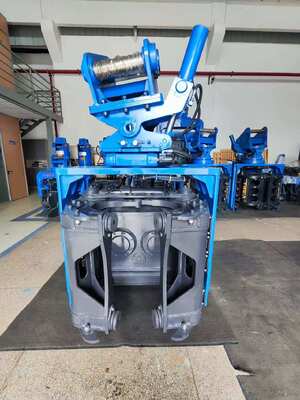

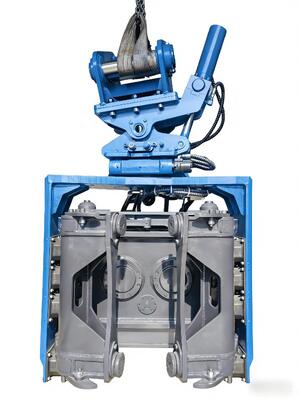

Side Grip Pile Driver SV-400 - 656kN Hydraulic Vibratory Hammer For Excavators
The Side Grip Pile Driver SV-400 is a high-performance hydraulic vibratory hammer designed for efficient sheet pile driving and extraction in confined construction environments. Mounted on 32-40 ton excavators, this Side Grip Pile Driver provides powerful vibration force, flexible positioning, and precise pile handling.
Unlike traditional top-mounted pile hammers, the Side Grip Pile Driver clamps the pile from the side, allowing construction in restricted spaces such as under bridges, inside factory buildings, or near existing structures. This design improves safety, efficiency, and installation accuracy.
The SV-400 model delivers 656kN centrifugal force and up to 3000 rpm vibration frequency, ensuring fast and stable pile driving performance for demanding infrastructure projects.
Key Features
- Powerful Hydraulic Vibration System: Generates up to 656 kN centrifugal force for strong penetration capability with steel sheet piles, pipe piles, and concrete piles
- Flexible 360° Rotation and ±30° Tilt: Advanced hydraulic system enables accurate pile positioning without repositioning the excavator
- High Clamping Force for Stability: Side clamp force: 465 kN, Bottom clamp force: 520 kN for safe and stable gripping during operations
- Designed for Tight Construction Spaces: Operates in confined environments where traditional pile drivers cannot work
- Excavator-Mounted Efficiency: Powered directly by excavator hydraulic system, eliminating need for separate piling rigs
Technical Specifications
| Model | SV-400 Side Grip Pile Driver |
| Type | Hydraulic Vibratory Pile Driver |
| Centrifugal Force | 656 kN |
| Frequency | 2300-3000 rpm |
| Side Clamp Force | 465 kN |
| Bottom Clamp Force | 520 kN |
| Rotation / Tilt | 360° / ±30° |
| Operating Pressure | 32 MPa |
| Hydraulic Flow | 280-360 L/min |
| Weight | 3870 kg |
| Suitable Excavator | 32-40 Ton |
Applications
- Bridge Construction: Efficient installation of steel sheet piles for bridge foundations
- Building Foundations: Suitable for high-rise buildings and deep foundation works
- Port & Harbor Engineering: Driving piles for dock structures and retaining walls
- Urban Construction: Ideal for construction sites with limited space or height restrictions
Why Choose Our Side Grip Pile Driver
- 15+ years of pile driving equipment manufacturing experience
- High-efficiency hydraulic vibration technology
- OEM and customized solutions available
- Global export to Southeast Asia, Middle East and South America
- Reliable after-sales service and spare parts support
Frequently Asked Questions
- What is a Side Grip Pile Driver?
An excavator-mounted hydraulic vibratory hammer that clamps piles from the side to drive them into the ground, making it suitable for confined construction sites. - What types of piles can it install?
Steel sheet piles, pipe piles, H-beams, and concrete piles. - What excavator size is suitable for the SV-400?
Designed for 32-40 ton excavators. - Can the pile driver work in tight spaces?
Yes. The side clamp design allows operation in low clearance and narrow construction areas, such as under bridges or inside industrial facilities.
