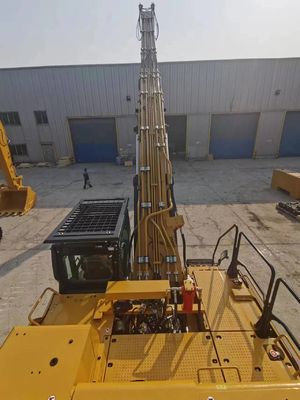

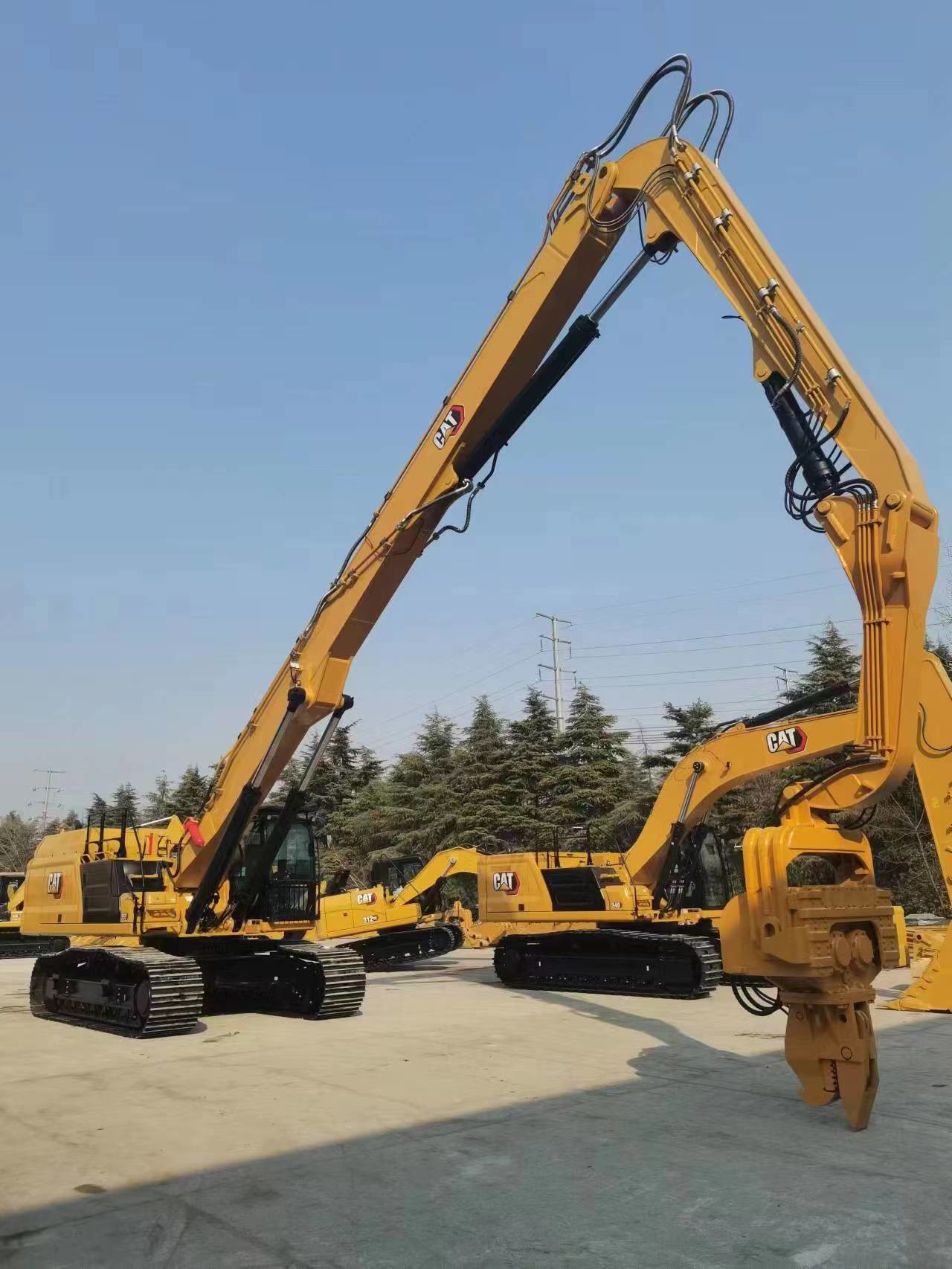

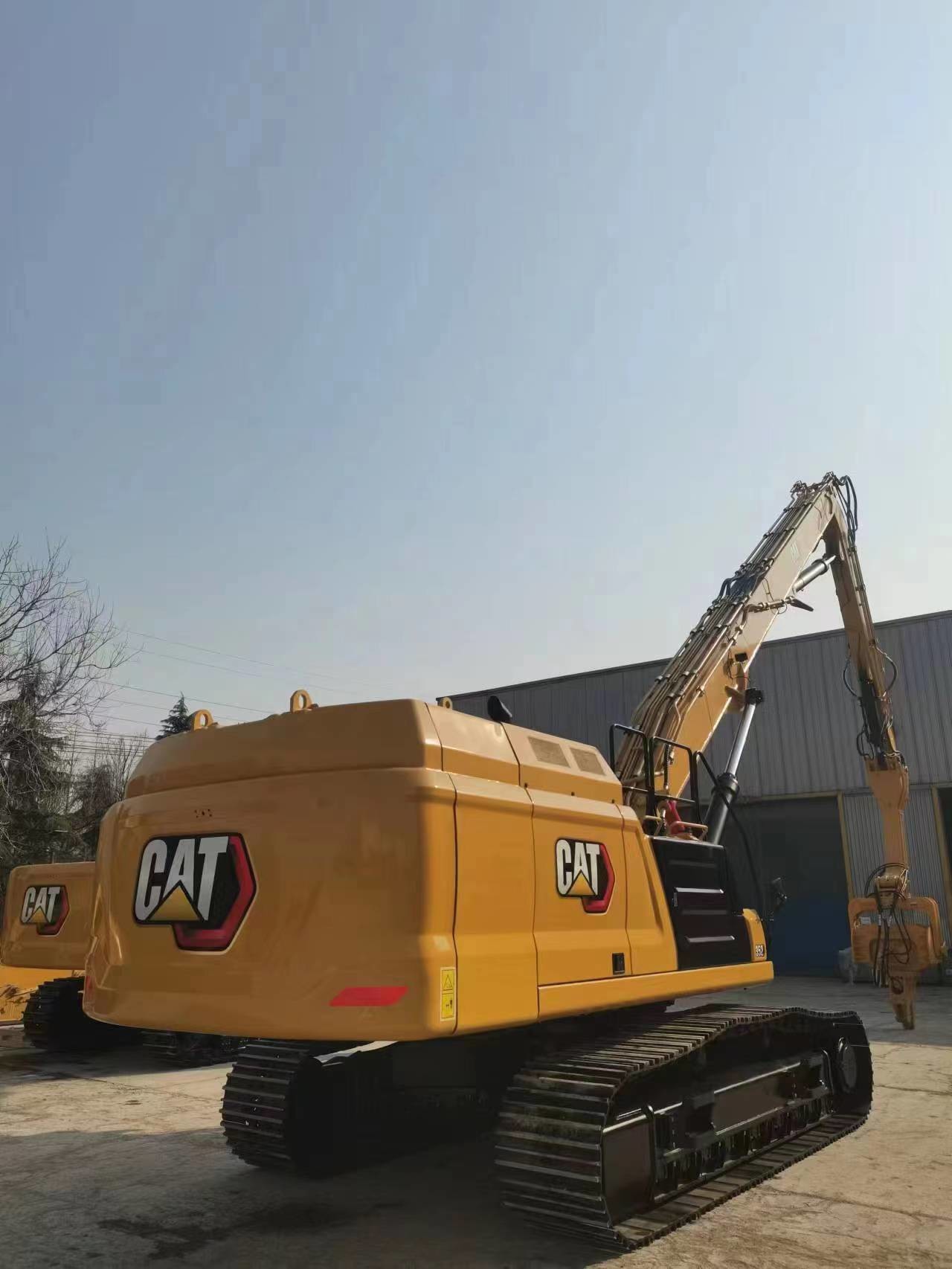

Construction Projects Excavator Mounted Pile Driver Over 12 Meters Depth
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Excavator Mounted Pile Driver::Piling And Pulling||Feature||Capable Of Driving Long Piles In Hard Soil Condition|
|Arm Weight||500kg||Operation Pressure||32Mpa|
|Hammer Weight||1900kg||Vibration Frequency||2800rpm|
|Color||Blue/Yellow/Red/White, Customized Color Available||HS Code||84301000|
|Material||Steel, Core Materials Are All Imported||Type||New And Used Both Available|
Construction Projects Excavator Mounted Pile Driver,
12 Meters Excavator Mounted Pile Driver,
2800rpm Hydraulic Pile Driver
Sheet piling work over 12 meters depth with vibro hammer for construction projects
In the market today there are two main types of vibratory hammers - electric and hydraulic. Electric hammers and hydraulic hammers have many differences but in a very basic sense they similar traits. Both electric and hydraulic hammer use a “power unit” that powers the hammer, both have clamps allowing the hammer to connect to the pile, both use wires or hoses to connect the hammer to the power unit. VIBRA offers more than 15 models of hydraulic vibrating pile drivers which can be fitted with excavator from 6 to 60 ton. Customer can drive more than 24 meters of piles using any brand of excavator. VIBRA has very collaboration with almost all leading excavator company in the world including Caterpillar, Volvo, Hyundai, Hitachi, XCMG, SANY, Zoomlion, Doosan and many more. VIBRA provides all the necessary accessories required to set up with the excavator, easy installation and fast pile driving with long lasting performance earns the praises of clients from around the world!
|Vibration Frequency (rpm)||2500||2800||3200||3200||3200||3200||3200|
|Operation Pressure (Mpa)||30||32||32||32||32||32||32|
|Centrifugal Force (KN)||265||335||350||372||435||455||485|
|Max.Pile Length (m)||10||12||12||12||15||15||18|
|Arm Weight (kg)||500||500||670||670||670||750||750|
|Hammer Weight (kg)||1700||1900||2100||2300||2400||2600||2700|
Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.
The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.
- The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
- The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
- Mini and light weight design make application flexible.
- Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
- The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice
Q: Are you a manufacturer?
A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,
Q: Who is your main customer?
A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
