10 Meter Vibrating Pile Driver For Long Lasting Construction 2800 Rpm

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-250
Minimum Order Quantity 1
Price 10000 to 32000 USD
Packaging Details 4.5 CBM
Delivery Time 7-35 work days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 10 set/month
Product Details
Name Mini Excavator Mounted Hydraulic Pile Driver Feature Easy To Install And Possible To Drive Any Pile
Vibration Frequency 2800 Rpm Operation Pressure 32 Mpa
Centrifugal Force 265KN Max.Pile Length 10m
Arm Weight 500kg Hammer Weight 1700kg
Material Steel, Core Materials Are All Imported Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 Type Hydraulic Vibrating Hammer
High Light

10 Meter Vibrating Pile Driver

,

Construction Vibrating Pile Driver 2800 Rpm

Leave a Message
Product Description

10 meter vibrating pile driver made with European brands inner parts for long lasting use in construction projects

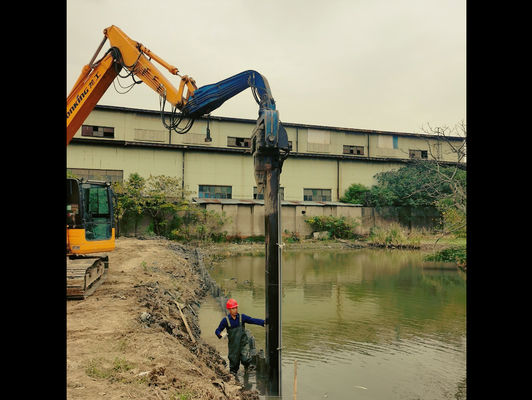

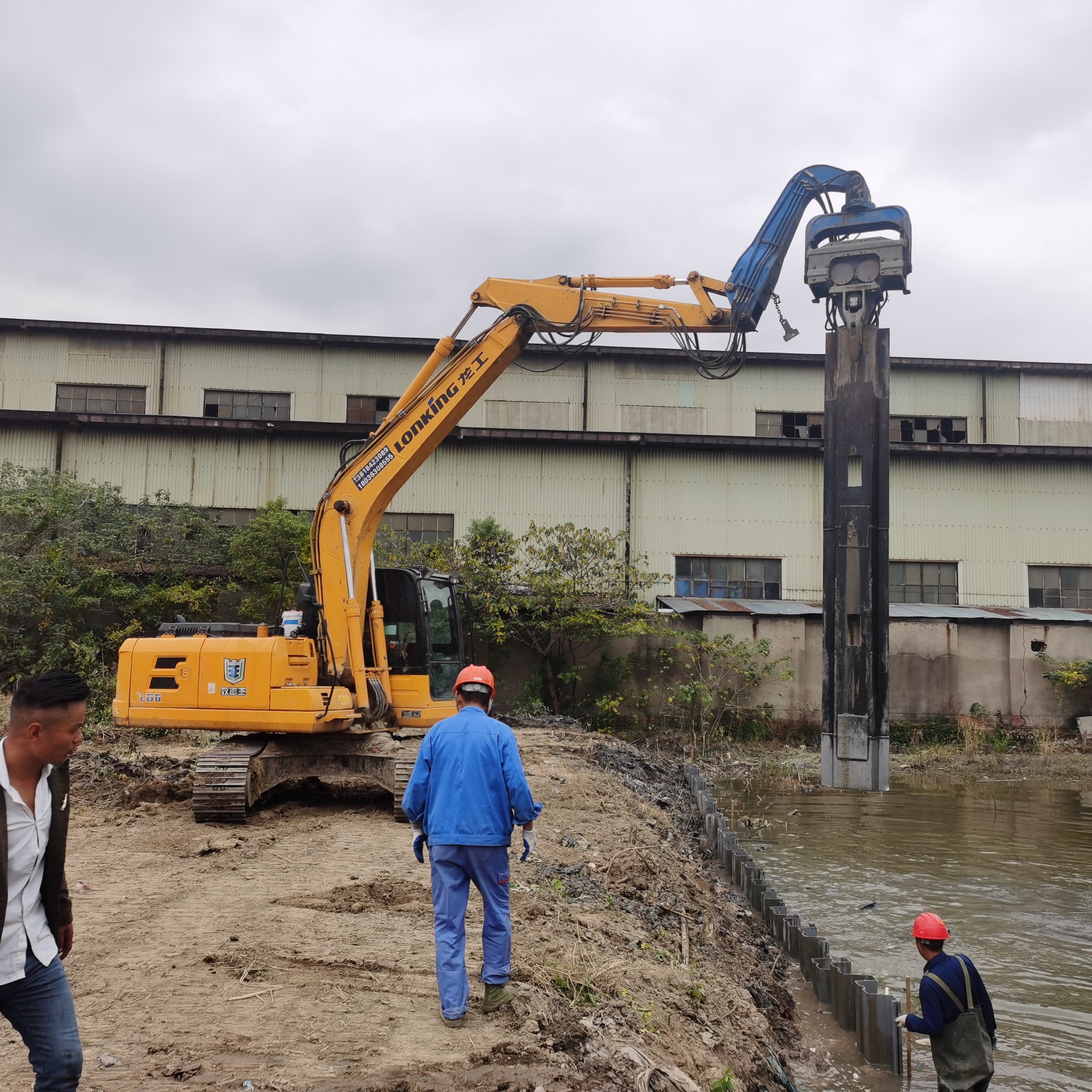

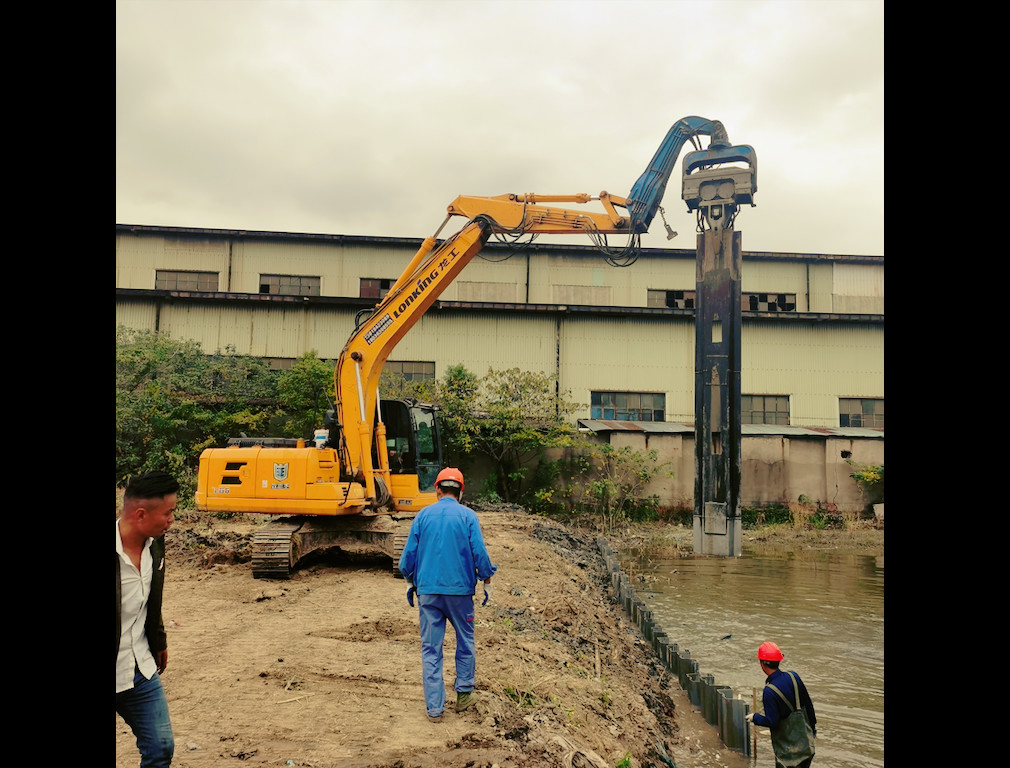

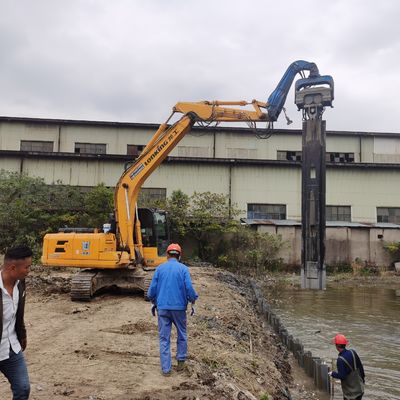

VIBRA pile driver can be use for multi purposes piling work including plastic sheet pile driving. It has multiple types of piling works including watercourse embankment, house foundation, municipal network, bridge and other construction fields. FV-250 one of the popular pile drivers in the industry with 10-meter pile driving capacity suitable for medium type excavator ranging from 20 to 30 ton. Easy to operate and reliable, capable enough of driving cement sheet, steel plate, steel tube, H steel, wooden etc. VIBRA pile driver FV250 fitted with Lonking excavator for driving 9 meter plastic sheet piles nearby a canal, customer is satisfied having FV250 as its fulfill his requirements at the same time ensure more profits!


Technical Parameter

Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2800 3200 3200 3200 3200 3200 3200
Operational Pressure (Mpa) 32 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice

Equipment Advantage

  • Mini structure type.light weight with maximum vibrate momend.
  • The latest fourth generation with optimized structure and enhance performance stability.
  • Flexible in limited operation space, such asnarrow watercourse and private house foundation with various type pile, like steel pile concrete pile and wood pile.


10 Meter Vibrating Pile Driver For Long Lasting Construction 2800 Rpm 0


FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How to order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
