Excavator Mounted Side Grip Piling Machine Hydraulic Vibro Pile Hammer

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number SV-200
Minimum Order Quantity 1 set
Packaging Details 4.5 CBM
Delivery Time 15-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability 10 set/month
Product Details
Name SIde Grip Pile Hammer Feature Pile Driving In Any Condition
Vibration 2300-3000 Rpm Centrifugal Force 332-384 KN
Arm 500 Kg Hammer 1400-1700 Kg
Excavator 20-30 T Material Steel, Core Materials Are All Imported
Color Blue/Yellow, Customized Color Available HS Code 84301000
High Light

Excavator Mounted Side Grip Piling Machine

,

Hydraulic Vibro Pile Hammer

Leave a Message
Product Description

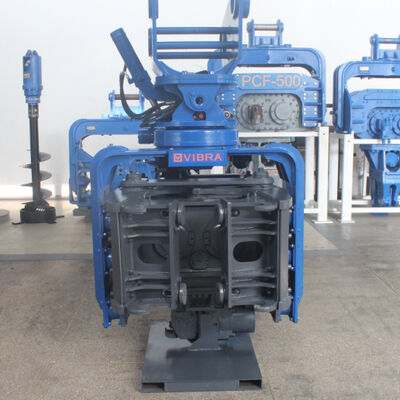

Excavator Mounted Side Grip Piling Machine Hydraulic Vibro Pile Hammer



More secure and quicker than conventional Pile Drivers available, this model highlights a side and base clip to effectively pick up, tilt and turn piles for more precise outcomes.



VIBRA Side Grip Pile Driver is extraordinarily designed as excavator mounted vibro hammers. Side grip is handily adjusted to the excavator by association section created by VIBRA. They are hydraulically determined by the excavator and effortlessly worked by the excavator operator. With an ergonomic design and superior execution, different capacities excavator mounted VIBRA side grip pile drivers give long life, issue free piling application.



VIBRA side grip pile driver saves time and money with elite execution and pile driving/extracting power. Side Grip Vibratory Hammer, can deal with, pitch and drive the sheet and tube piles. It is able to achieve the entire pile driving cycle without the requirement for manual treatment of the piles or helping machinery.



Benefits OF VIBRA SIDE GRIP PILE DRIVER

  • Appropriate for wide scope of piles like sheet piles, casing piles, H, I-beams, steel and tube piles,
  • Appropriate for different ground conditions,
  • Ideal for conveying the driving energy to the pile,
  • Successful shifting and turning mechanism,
  • Has durability and simple maintenance,
  • Simple pile handling and pitching,
  • Wide opening and synchronized development,
  • Can perform 360º rotation.



Advantages



VIBRA Side grip pile driver



❑ Specially designed for low clearance and narrow space construction environment such as workshop and bridge foundation.



❑ Suitable for 9~40 tons of standard excavator, through simple modification, installation difficulty is very low.



❑ Multi-functional fixture system, replaceable standard clamp interface, to meet the needs of steel sheet piles, H-beams and pipe piles and other pile types.



❑ Optional VIBRA NCS pile driver control system to provide auxiliary reference for pile driving operation, can display the hydraulic control system function information.





Hydraulic 3000rpm Side Grip Pile Driver One Piece Structure



Design Details
Rotary Oscillation Mechanism

  • High torque slewing support
  • High pressure swing cylinder
  • Split control valve Compact central swivel
  • Front oil circuit interface

Gantry Hanger

  • One-piece structure
  • High pressure accumulator
  • Split control valve
  • Front oil circuit interface

Holding Clip System

  • High strength arm
  • Dual high pressure cylinders
  • Interchangeable collet
  • Simultaneous clamping and release of both arms

Vibrating Body

  • Imported drive motor
  • High strength box
  • high speed gear
  • Symmetrical eccentric arrangement
  • Increase the oil drain

Bottom Clip System

  • One-piece cast steel
  • Integrated cylinder
  • tooth plate
  • Pile hook mechanism

Description

Our philosophy: with a high sense of responsibility and mission to develop and manufacture each equipment.
Development goal: to lead the future innovation and change of the industry.
Value embodiment view: the realization of customer value for the self-worth.
Safety and Quality: Extremely high safety is the foundation of manufacturing, and durable and stable quality is the life of products.
Environmental protection and contribution: to achieve the maximum efficiency with very low energy consumption, to contribute to the green environment.

In view of the national photovoltaic industry, our company has developed a number of photovoltaic pile special models, and is also the only manufacturer of customized pile machines for this industry.

This series of models has broken through the technical bottleneck of small vibration force and low construction efficiency of the traditional medium pile machine, and achieved the matching of the special type of pile machine with the same tonnage excavator to the same pile driving capacity, thus exceed saving equipment and fuel costs and improving construction efficiency.


About Us

Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.

We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time , we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.

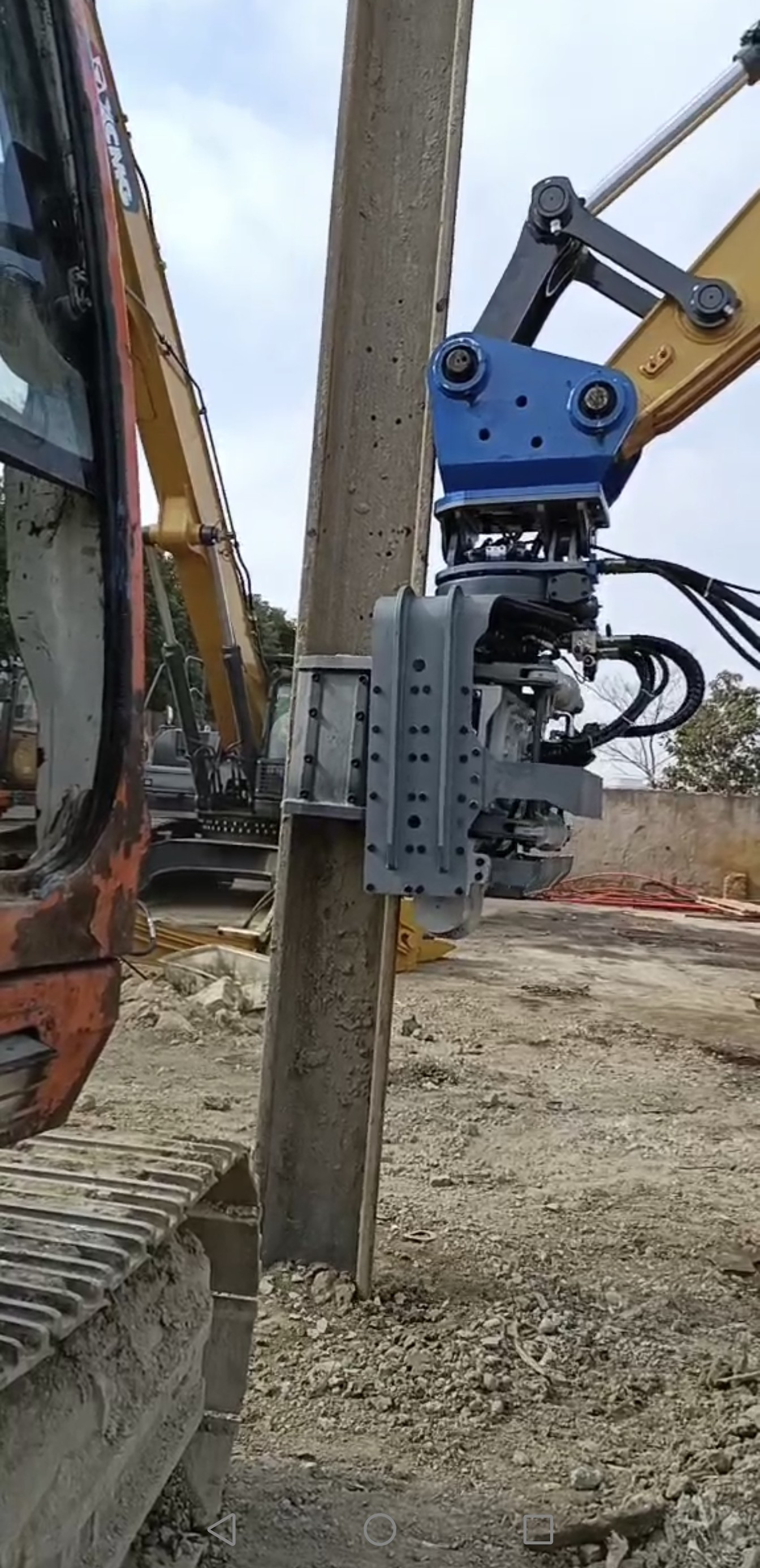

Excavator Mounted Side Grip Piling Machine Hydraulic Vibro Pile Hammer 0
FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: 1 set is available.

Q: What's the payment method ?

A: We accept T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises ".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!

Q: How To Order?

A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
