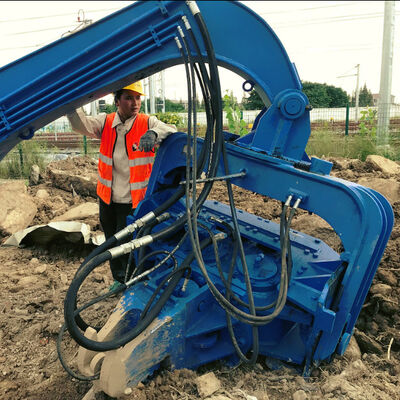

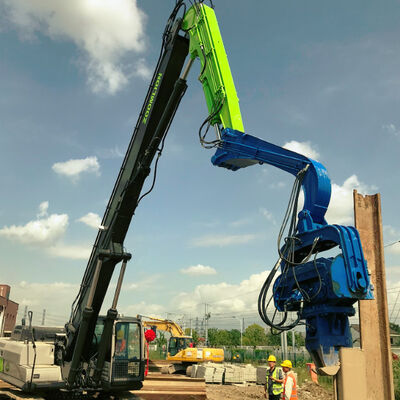

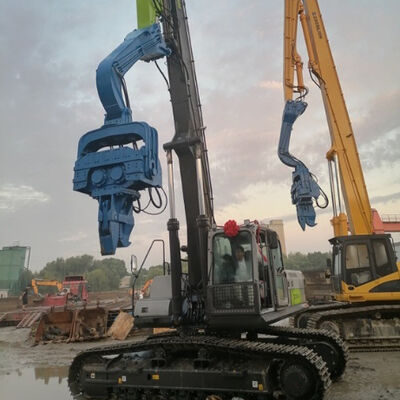

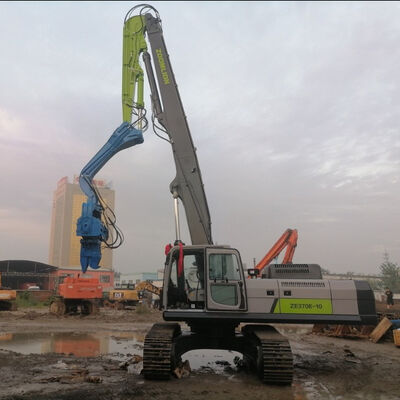

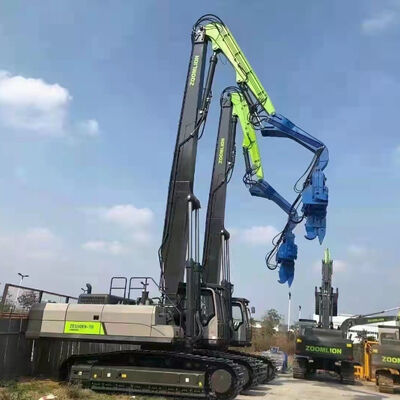

Heavy-Duty Pile Driver | PCF Series 3500 RPM Vibro Hammer for Sheet Pile Construction
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | PCF Series Vibro Hammer/Pile Driver Excavator Mounted | Feature | Higher Vibration Frequency For Faster Working Projects |
|---|---|---|---|
| Vibration Frequency | 3500rpm | Hammer Weight | 2950kg |
| Arm Weight | 750kg | Max.Pile Length | 15m |
| Centrifugal Force | 470KN | Excavator | 40~45 Ton |
| Material | Steel, Core Materials Are All Imported | Color | Blue/Yellow/Red/White, Customized Color Available |
| HS Code | 8430100000 | Type | Hydraulic Vibrating Hammer |
| Highlight | 3500 RPM Sheet Pile Vibro Hammer,Construction Sheet Pile Vibro Hammer,Excavator Mounted Piling Vibro Hammer |
||
Product Description
Heavy-Duty Pile Driver | PCF Series 3500 RPM Vibro Hammer for Sheet Pile Construction
Pile Driver, Hydraulic Pile Driver, Vibratory Pile Hammer, High-Speed Pile Driver, Sheet Pile Driver, Construction Piling Equipment
Product Overview
The VIBRA PCF Series Hydraulic Vibratory Pile Driver is engineered for efficient and reliable long sheet pile driving in demanding construction projects. Utilizing advanced high-frequency vibration technology up to 3500 RPM, this equipment transforms soil structure through liquefaction, significantly reducing friction and enabling smooth pile installation and extraction. Ideal for municipal, bridge, cofferdam, and foundation projects, it delivers low-noise, high-efficiency performance with minimal environmental impact.
Key Features & Working Principle
High-Frequency Vibration Technology:
Transmits vertical vibration energy to the pile body, causing soil liquefaction around the pile and drastically lowering frictional resistance between the pile and soil.
Dual Eccentric Axis System:
The hydraulic motor drives two eccentric axes rotating at high speed in opposite directions. Horizontal forces cancel each other out, while vertical forces combine to create powerful vertical-frequency vibration.
Multi-Functional Application:
Suitable not only for driving and extracting sheet piles and pipes, but also for soil densification and vertical drainage in various foundation engineering scenarios.
Equipment Advantages
- High Vibration Frequency & Exciting Force: Ensures efficient pile penetration even in challenging soil conditions.
- Enhanced Structural Integrity: All structural components are built with high strength for durability and safety.
- Heavy-Duty Cast Steel Fixture: Equipped with enlarged oil cylinders and connecting rods for enhanced reliability.
- Premium Core Components: Features imported Rexroth vibration motors from leading European brands, ensuring high machine configuration and performance stability.
- Environmental & Operational Benefits: Low noise, non-polluting, and non-damaging to piles, making it suitable for urban and sensitive environments.
- Versatile Compatibility: Can be mounted on excavators ranging from 27 to 70 tons, with quick adaptation to different pile types through interchangeable chucks.
Technical Parameters
| Model | Vibration Frequency (rpm) | Centrifugal Force (kN) | Max. Pile Length (m) | Operating Pressure (Mpa) | Hammer Weight (kg) | Excavator (T) |
|---|---|---|---|---|---|---|
| PCF-300 | 3500 | 385 | 12 | 32 | 2750 | 27–30 |
| PCF-330 | 3300 | 420 | 12 | 32 | 2850 | 33–38 |
| PCF-350 | 3500 | 470 | 15 | 32 | 2950 | 40–45 |
| PCF-450 | 3300 | 535 | 18 | 32 | 3150 | 47–55 |
| PCF-500 | 3200 | 585 | 21 | 32 | 3350 | 55–70 |
Frequently Asked Questions (FAQ)
Q: Are you a manufacturer?
A: Yes, we have over 12 years of industry experience. Our factory is located in Suzhou, and we welcome visits during working hours.
Q: Who are your main customers?
A: Our clients are located throughout China and internationally, including New Zealand, Malaysia, Indonesia, and others. We also serve leading brands such as XCMG, SANY, Zoomlion, Caterpillar, and Hyundai.
Q: What is the warranty period?
A: We offer a 12-month warranty from the date of installation completion, covering the mainframe and key components (excluding wear parts).
Q: What is the minimum order quantity?
A: Orders can start from 1 set.
Q: What payment methods are accepted?
A: We accept T/T (Telegraphic Transfer).
Q: What is the delivery timeline?
A: Delivery typically takes 7–35 days to Shanghai Port, with additional shipping time depending on the destination.
Q: Can you apply our company logo to the machine?
A: Yes, logo customization is available upon request.
Q: How do you ensure product quality?
A: All manufacturing strictly complies with the national "Technical Conditions for Pile Driver Enterprises" standards.
Q: Can I become a dealer?
A: We welcome dealership inquiries and are eager to develop regional agency partnerships and long-term collaborations.
Q: What is the ordering process?
- Confirm model, quantity, and requirements.
- Receive a Proforma Invoice.
- Production begins upon receipt of deposit.
- We notify you once goods are ready to ship and provide tracking information.
- We assist until the safe delivery of your order.
Why Choose VIBRA PCF Series Pile Drivers?
With high-frequency vibration up to 3500 RPM, superior structural strength, and premium European components, the PCF Series delivers reliable performance for long sheet pile projects in diverse ground conditions. Designed for efficiency, durability, and environmental compliance, it is the trusted choice for contractors and engineers worldwide.
