2700kg Excavator Vibro Hammer For 18 Meter Sheet Pile Driving

Place of Origin SHANGHAI
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-400
Minimum Order Quantity 1 set
Price 15000 to 38000 USD
Packaging Details 8.5 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P, D/A, D/P, Western Union, MoneyGram
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver Feature Low Noise
Vibration Frequency 3200rpm Operation Pressure 32Mpa
Hammer 2700kg Arm 750kg
Max.Pile 18m Centrifugal Force 485 Kn
Excavator Operating Weight 45~60 Ton Material Steel, Core Materials Are All Imported
Type Hydraulic Vibrating Hammer Condition New And Used Both Available
Color Yellow/Blue/Red/White, Customized Color Available HS Code 8430100000
High Light

2700kg Vibro Sheet Pile Driver

,

18 Meter Sheet Pile Driving Machine

,

Excavator Sheet Pile Vibro Hammer

Leave a Message
Product Description

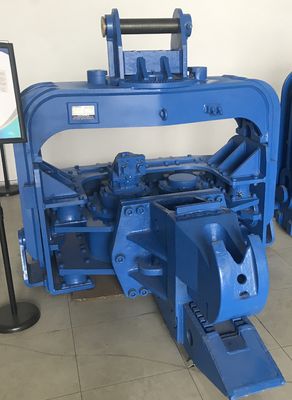

Blue color 2700kg vibro hammer for 18 meter sheet pile driving work



Large Excavator Mounted Hydraulic Vibrating Pile Driver



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



This series of models have higher requirements for the overall design and manufacturing level. Drawing on the advanced technology of large hydraulic vibration hammer from Europe and America and our years of experience in the industry, we have developed a unique box structure with high reliability and longer average service life of bearings, which is in the leading position in the same industry.



10 ~ 21 meters of sheet pile construction is the mainstream of the market, we provide a variety of eccentric groups for selection, strength optimization for each component, with higher safety and a wide range of adaptability to various geological conditions.



Equipment advantages:

High frequency vibration, large vibration force, high strength of the structural parts;

Super-heavy cast steel fixture, increase the oil cylinder and connecting rod, high reliability.

The machine has high configuration, German Rexroth vibration motor, the core components are imported first-line brands.





  • Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
  • Quick converting operation; Applied to various working environments.
  • Compared to other systems, less force required for pile pulling
  • Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Not damage the building even often work near it.
  • Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short; It is helpful to overcome environmental problems.
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.





Technical Parameters



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm (kg) 500 500 670 670 670 750 750
Hammer (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.





About Us



Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.



We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver leads the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we cooperate actively with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.



Our company is consisting of a young, enthusiastic professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.



2700kg Excavator Vibro Hammer For 18 Meter Sheet Pile Driving 0



2700kg Excavator Vibro Hammer For 18 Meter Sheet Pile Driving 1



FAQ



Q: How long is the warranty period?

A: The warranty period is 12 months from the date of completion of installation, except for wearing parts.



Q: What is the MOQ?

A: 1 set is available.



Q: What's the payment method?

A: We accept L/C, T/T and D/P payment.



Q: What is the delivery time?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine?

A: Of course you can.



Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
