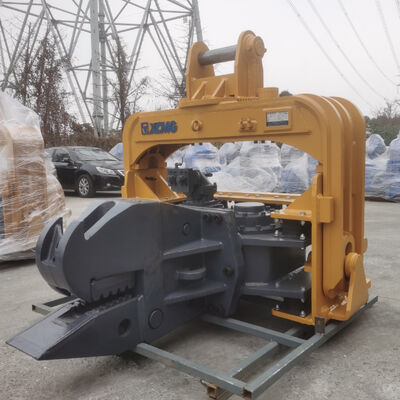

12M Vibro Pile Driver - 420KN Centrifugal Force & Pile-Protective Design

Pile Driver, 420KN Pile Driver, Vibro Hammer Pile Driver, 12M Pile Driver, Hard Soil Pile Driver, Hydraulic Vibrating Pile Driver, PCF-330 Pile Driver, Heavy-Duty Pile Driver

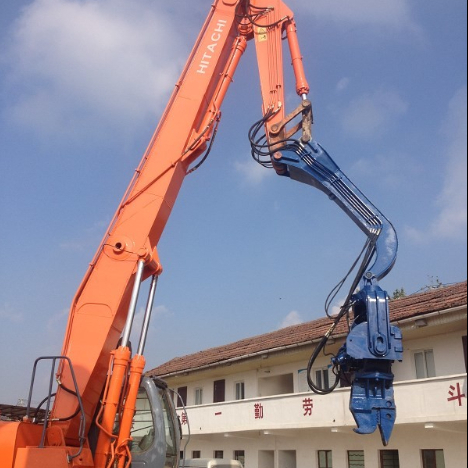

The 420KN Centrifugal Force Vibro Hammer Pile Driver (PCF-330 model) is a high-performance hydraulic vibrating equipment engineered specifically for 12-meter hard soil piling work. Designed to tackle challenging geological conditions, this pile driver leverages high-frequency vibration technology to liquefy surrounding soil, reduce friction, and ensure efficient pile driving for infrastructure, industrial, and foundation projects.

As a core product of the VIBRA brand, it is manufactured by Shanghai Yekun Machinery Co., Ltd.—a professional manufacturer with over 12 years of experience—serving global customers across China, New Zealand, Malaysia, Indonesia, and more, including renowned brands like XCMG, SANY, and Caterpillar. With its robust design, advanced control system, and strong adaptability, it stands out as a reliable solution for hard soil piling tasks.

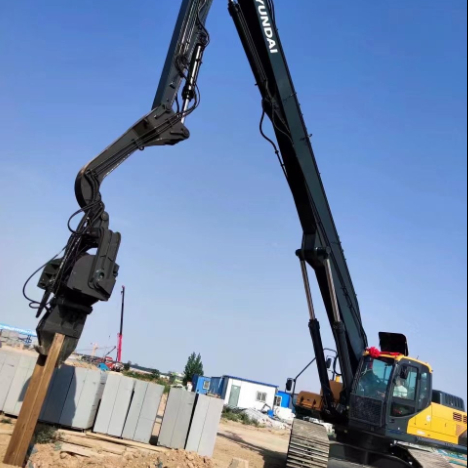

The hydraulic vibrating pile driver utilizes high-frequency vibration (3300rpm for PCF-330) generated by a hydraulic motor, transmitting this vibration force to the pile body. This vibration breaks down the structure of hard soil, liquefies the surrounding soil layer, and significantly reduces frictional resistance between the pile and soil. The excavator then applies downward force, combined with the weight of the hammer and pile body, to drive the pile 12 meters deep into hard soil.

For pile extraction, the hammer maintains vibration while the excavator’s lifting force pulls the pile out smoothly. The hydraulic motor drives two eccentric axes to rotate at high speed in opposite directions: horizontal forces cancel each other out to eliminate lateral vibration, while vertical forces superimpose to generate strong, stable vertical vibration—ensuring precise and efficient piling performance.

1. Integrated Imported Control Valve: The control system adopts imported integrated valves, allowing independent control of each action for convenient maintenance, inspection, and troubleshooting.
2. Two-Stage Vibration Frequency Control: The second-stage vibration uses double-pump confluence to greatly increase excitation force, enabling the pile driver to overcome the challenges of hard soil and special geological conditions.
3. Compact & Lightweight Design: Mini and lightweight structure (hammer weight: 2850kg, arm weight: 750kg) ensures flexible application across diverse construction sites, with easy transportation and installation.
4. Excavator Hydraulic System Compatibility: Leverages the excavator’s existing hydraulic system (32Mpa operation pressure) without requiring additional driving equipment, saving fuel oil and transportation costs.
5. User-Friendly Operation: Simple to learn and operate; excavator operators with basic experience can master the equipment after short-term practice, minimizing training time and labor costs.

1. 420KN Strong Centrifugal Force: Delivers powerful impact to penetrate hard soil efficiently, ensuring stable driving of 12-meter piles in challenging geological environments.
2. 3300rpm High-Frequency Vibration: Optimized vibration frequency liquefies hard soil quickly, reducing friction and improving piling efficiency compared to conventional equipment.
3. Hard Soil Specialization: Specifically engineered for hard soil piling work, with enhanced excitation force and structural design to adapt to high-resistance soil conditions.
4. Wide Excavator Compatibility: Matches 33–38 ton excavators, compatible with leading brands like Caterpillar, Hyundai, and XCMG for versatile project application.
5. Multi-Pile Adaptability: Suitable for driving steel sheet piles, steel protective cylinders, and PC mixed piles, meeting diverse foundation construction needs.

1. Hard Soil Piling Efficiency: 420KN centrifugal force and high-frequency vibration enable fast penetration of hard soil, shortening construction cycles and improving project progress.
2. Cost-Effective Operation: No need for additional driving systems reduces fuel consumption; compact design lowers transportation costs; easy operation cuts labor and training expenses.
3. Reliable Performance: Manufactured in strict compliance with Technical Conditions for Pile Driver Enterprises, with imported core components ensuring long service life and stable operation in heavy-duty work.
4. Flexible Procurement Terms: Accepts 1-set MOQ, supports T/T and offers LOGO customization to meet diverse customer needs.
5. Global Customer Recognition: Trusted by international clients and leading engineering machinery brands, with a proven track record in hard soil piling projects worldwide.

1. Please inform us of your required model, quantity, and any additional specifications (e.g., LOGO customization).
2. We will issue a Proforma Invoice (PI) after confirming the price and all relevant details.
3. We will arrange production upon receipt of the confirmed PI and your deposit.

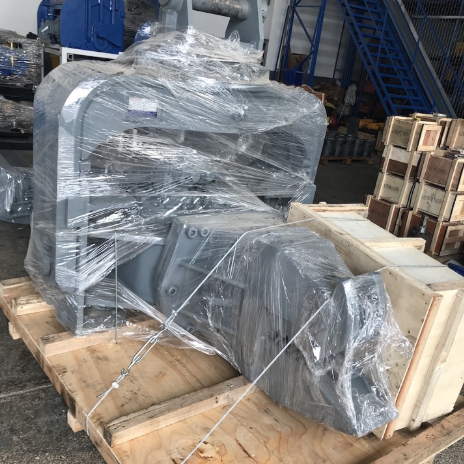

4. Once the goods are ready for shipment, we will notify you of the shipment date and other relevant information via email.
5. We will assist in tracking the shipment until you safely receive the products.
