Versatile Sheet Pile Pile Driver - High Speed Performance & Easy Maintenance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Excavator Mounted Sheet Pile Driver | Feature | High Speed |
|---|---|---|---|
| Vibration Frequency | 3200rpm | Operation Pressure | 32Mpa |
| Hammer Weight | 2600kg | Arm Weight | 750kg |
| Max.Pile Length | 15m | Centrifugal Force | 455kn |
| Excavator | 40~45 Ton | ||
| Highlight | excavator mounted wood pile driver,excavator mounted vibro hammer |
||
Product Description

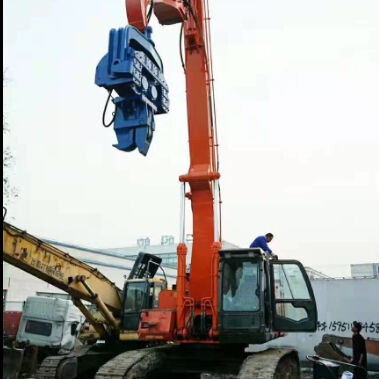

Versatile Sheet Pile Pile Driver - High Speed Performance & Easy Maintenance
Core Keywords: Pile Driver, Hydraulic Pile Driver, Modular Pile Driver, Excavator-Mounted Pile Hammer, Vibratory Pile Driver
Product Overview

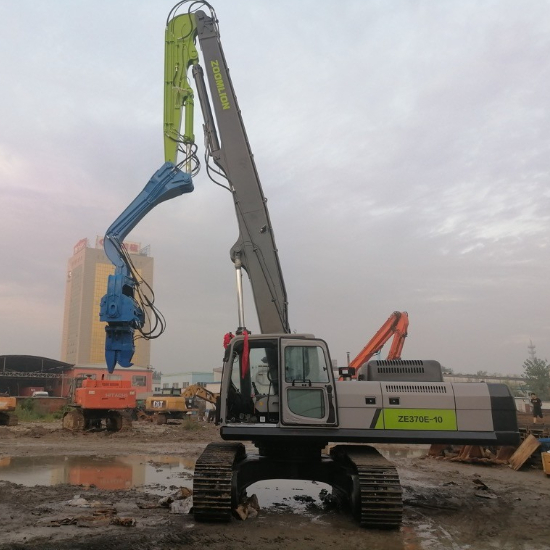

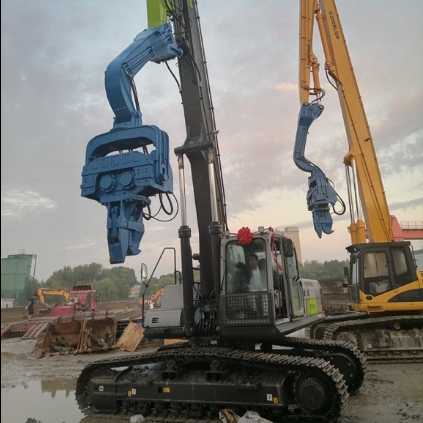

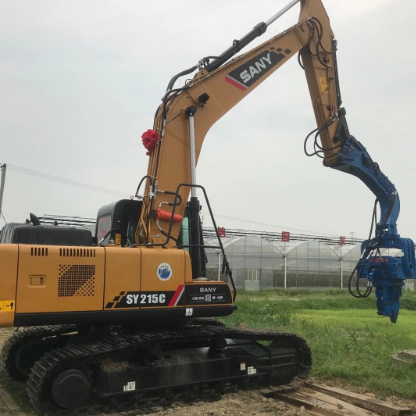

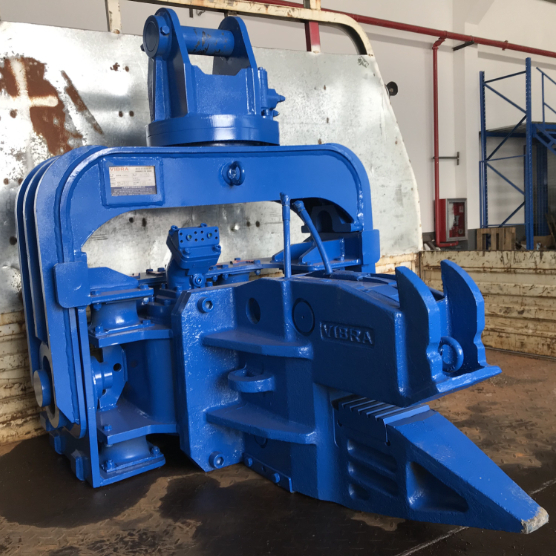

The VIBRA Series Modular Hydraulic Pile Driver is engineered for maximum efficiency and convenience in modern foundation work. Designed for seamless integration with excavators from 20 to 60 tons, this pile driver excels in driving and extracting a wide range of piles including steel sheet piles, H-beams, and concrete piles. Its innovative modular design sets a new industry standard for ease of disassembly, transport, and maintenance, directly reducing downtime and operational costs.
Key Features & Advantages
1. Unmatched Modularity & Serviceability:
- Easy Disassembly & Transport: A thoughtfully improved design allows every major component to be quickly taken apart. The unique connection and layout of the long and short boats make our units significantly easier to ship and handle compared to competitors.
- Simplified Maintenance: The modular construction provides direct access to key parts, facilitating faster on-site servicing and repairs, which minimizes project delays.
2. Superior Operational Versatility:
- Universal Excavator Compatibility: Can be mounted on excavators of any major brand, offering exceptional flexibility for rental fleets and contractors.
- Quick-Change Chucks & 180° Rotation: Enables rapid adaptation to different pile types (sheet pile, H-beam, pipe pile) and allows for clamping/lowering in any direction to suit tight or complex site conditions.
- Multi-Pile Proficiency: Effectively handles steel sheet piles, concrete piles, steel rail piles, and H-beams with quick conversion between tasks.
3. High-Efficiency, Site-Sensitive Performance:
- Powerful yet Compact Hydraulics: Features a high-power, high-speed hydraulic motor with a small footprint and light weight, delivering substantial centrifugal force.
- Adjustable Two-Stage Vibration: A two-level frequency adjustment combined with a dual-pump system provides a massive excitation force for faster driving cycles. Frequency can also be finely tuned via a variable pump.
- Reduced Pulling Force & Non-Destructive: Engineered to extract piles with less required force and without damaging the pile heads, preserving material value.
4. Eco-Friendly Operation:
- Low Noise & Vibration: Equipped with rubber sheaths to significantly dampen noise and vibration, making it suitable for urban projects and sensitive environments near existing structures.
Technical Parameters
| Model | Vibration Frequency (rpm) | Centrifugal Force (KN) | Max. Pile Length (m) | Operating Pressure (Mpa) | Compatible Excavator (T) |
|---|---|---|---|---|---|
| FV-250 | 2500 | 265 | 10 | 30 | 20-30 |
| FV-280 | 2800 | 335 | 12 | 32 | 20-30 |
| FV-300 | 3200 | 350 | 12 | 32 | 30-35 |
| FV-330 | 3200 | 372 | 12 | 32 | 33-40 |
| FV-350S | 3200 | 435 | 15 | 32 | 35-40 |
| FV-350 | 3200 | 455 | 15 | 32 | 40-45 |
| FV-400 | 3200 | 485 | 18 | 32 | 45-60 |
Hammer weights range from 1700kg to 2700kg for optimal impact and stability.
Frequently Asked Questions (FAQ)
Q: What is the warranty for this pile driver?
A: We provide a 12-month warranty on the mainframe and key components from the date of installation completion, excluding normal wear parts.
Q: What is the Minimum Order Quantity?
A: You can order starting from one (1) set.
Q: What are the accepted payment terms?
A: We accept T/T (Telegraphic Transfer).
Q: How long is the delivery time?
A: Delivery typically takes 1-8 days to Shanghai Port. International shipping duration depends on the final destination.
Q: Is custom branding available?
A: Yes, we can apply your company logo to the machine upon request.
Q: How is product quality ensured?
A: All manufacturing strictly adheres to the national "Technical Conditions for Pile Driver Enterprises" standards, guaranteeing industry-leading quality and performance.
Q: Can we become a dealer or agent?
A: We welcome dealership inquiries and are eager to develop strategic partnerships with regional agents.
About Shanghai Yekun Machinery Co., Ltd.
Founded in 2014, Shanghai Yekun Machinery is a professional manufacturer, seller, and service provider specializing in hydraulic vibratory pile drivers. We focus on the latest high-speed hydraulic technology, with our mini pile drivers leading industry trends and our mid-to-large models earning high client recognition. Our young, passionate, and professional team is committed to putting clients first, prioritizing quality, and striving to be the most comprehensive and reliable supplier of hydraulic pile driving solutions. We actively collaborate with machinery factories and construction firms to develop specialized, high-performance equipment.
