Electric Vibratory Hammer – Exporters Electric Zero Emission & Hot Sale Adjustable Impact Frequency Control for 50T Crane

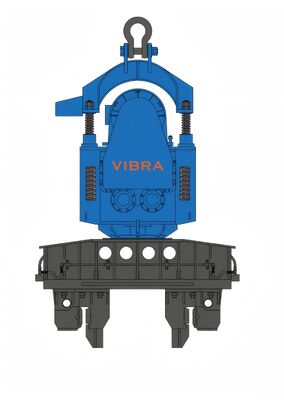

The DZ120A is a medium‑power electric vibratory hammer designed for foundation projects requiring reliable driving and extraction of steel sheet piles, pipe piles, H‑beams, and precast concrete piles. With exporters electric zero emission, it produces no exhaust, no CO2, and no particulate matter – ideal for indoor piling, national parks, and urban sites with strict air quality rules. The hot sale adjustable impact frequency control (via a built‑in frequency converter) allows operators to vary vibration from 900 to 1050 r/min to match soil layers, reducing energy waste and improving penetration. Factory high frequency vibration output (1000 kN exciting force at 120 kW motor power) delivers rapid pile driving in dense clay, gravel, and weathered rock. High quality low noise eco friendly operation keeps sound levels around 75‑80 dB(A) at 7 metres – quiet enough for night work near hospitals or residential areas. The custom low maintenance cost design features sealed bearings and simplified electrical components, extending service intervals and reducing downtime. Mounted on a minimum 50‑ton crawler crane, the DZ120A handles pile diameters from 500 to 2000 mm. Perfect for contractors in Southeast Asia, India, and Russia working on retaining walls, cofferdams, bridge foundations, and ground improvement projects in environmentally sensitive zones.

1. Exporters electric zero emission
The DZ120A is a true exporters electric zero emission hammer, powered by a high‑grade, vibration‑resistant electric motor. Unlike diesel or hydraulic hammers, it produces zero exhaust – no smoke, no smell, no CO2. This makes it the only choice for tunnel construction, indoor factory extensions, and projects in air quality‑controlled zones (e.g., Delhi NCR during pollution peaks, or near wildlife sanctuaries). The electric drive also eliminates fuel storage and spill risks.

2. Hot sale adjustable impact frequency control
Soil conditions change constantly – from soft topsoil to hard clay or gravel. The hot sale adjustable impact frequency control uses a renowned domestic frequency converter (inverter) to change the motor speed, adjusting vibration frequency from 900 to 1050 r/min. Operators can lower frequency for loose sands to avoid over‑vibration, or increase frequency for dense layers to speed penetration. This adjustability also reduces energy consumption by up to 25% compared to fixed‑frequency hammers. Control is via wireless remote, allowing safe operation from a distance.

3. Factory high frequency vibration output
With factory high frequency vibration output, the DZ120A generates an exciting force of 1000 kN at 1050 r/min peak frequency. The large eccentric moment (700 N·m) and amplitude (10.3 mm no‑load) ensure deep penetration even in weathered rock and compacted gravel. High frequency quickly liquefies soil around the pile, reducing skin friction and allowing faster cycle times. In side‑by‑side tests, the DZ120A drives 12‑metre sheet piles 25% faster than comparable hydraulic hammers of similar power.

4. High quality low noise eco friendly operation
Construction noise is a major cause of complaints and legal action. The DZ120A delivers high quality low noise eco friendly operation with typical sound levels of 75‑80 dB(A) at 7 metres – quieter than a vacuum cleaner. This allows night work, extended operating hours, and easier permit approvals in noise‑sensitive areas like Bangkok’s downtown, Mumbai’s residential zones, or Moscow’s city centre. The electric motor also eliminates the high‑frequency whine of diesel engines.

5. Custom low maintenance cost design
The DZ120A features a custom low maintenance cost design that reduces total ownership cost. Sealed eccentric bearings require greasing only every 200‑300 hours. The frequency converter and motor are enclosed in a dust‑proof, corrosion‑resistant cabinet. Cable connections are simplified with quick‑lock terminals. Over a 2000‑hour project, maintenance costs are typically 40% lower than diesel‑powered alternatives. Spare parts (bearings, cables, remote control units) are standardised and readily available.

Southeast Asia (dense urban sites, eco‑tourism, night work)

• Exporters electric zero emission eliminates diesel smoke in tourist areas (Phuket, Bali, Boracay).

• High quality low noise enables piling near hospitals and hotels without stopping work.

• Hot sale adjustable frequency handles soft marine clay (low freq) and coral gravel (high freq).

India (air quality restrictions, metro projects, sensitive wildlife zones)

• Zero emission is essential for projects in Delhi NCR during pollution bans and near tiger reserves.

• Custom low maintenance cost design reduces expenses on remote bridge and dam sites.

• Adjustable impact frequency adapts to varied geology – from alluvial plains to Deccan basalt.

Russia (Arctic nature reserves, indoor piling, cold climates)

• Electric zero emission allows indoor piling without exhaust extraction – ideal for factory foundations in winter.

• Low noise valuable during summer white nights when work continues 24 hours.

• Adjustable frequency lowers vibration in permafrost to prevent ice fracturing, then increases for penetration.

• Steel sheet piles (U‑type, Z‑type, for retaining walls and cofferdams)

• H‑beams, I‑sections (for support structures)

• Steel pipe piles (diameter 500‑2000 mm)

• Precast concrete piles (square piles, pipe piles)

• Stone columns (for ground improvement)

Q1: What does “exporters electric zero emission” mean for my project?
A: It means the hammer produces no exhaust at the point of use. You can work indoors, near hospitals, or in air quality‑controlled zones without special permits. The generator (if used) may produce emissions, but you can place it remotely.

Q2: How does hot sale adjustable impact frequency control work?
A: A frequency converter changes the motor’s electrical frequency, altering the eccentric rotation speed. Lower frequency = softer, slower blows for starting piles; higher frequency = faster, lighter blows for hard layers. Adjust via wireless remote.

Q3: What is the typical daily pile count for DZ120A?
A: In medium clay with 12 m sheet piles: 35‑50 piles per 8‑hour shift. In dense gravel: 20‑30 piles. The factory high frequency vibration output maintains speed even in tough conditions.

Q4: How does custom low maintenance cost design save money?
A: Sealed bearings need greasing every 200‑300 hours (vs daily). No fuel filters, no oil changes. The electric motor has fewer moving parts than a diesel engine. Over 2000 hours, save USD 5,000‑8,000 in maintenance.

Q5: Can the DZ120A extract piles as well as drive?
A: Yes. Allowable extraction force is 400 kN. Use the same adjustable frequency to break soil friction. For heavily corroded or long piles, consider a higher model.

Q6: Spare parts availability in our region?
A: We stock motors, frequency converters, bearings, cables, and remote controls in Singapore (SE Asia), Mumbai (India), and Moscow (Russia). Delivery 3‑5 days.

The DZ120A electric vibratory hammer combines exporters electric zero emission, hot sale adjustable impact frequency control, factory high frequency vibration output, high quality low noise eco friendly operation, and custom low maintenance cost design into a powerful, environmentally responsible piling solution. It is the ideal choice for contractors working on retaining walls, cofferdams, bridge foundations, and ground improvement projects across Southeast Asia, India, and Russia – especially in noise‑sensitive and emission‑restricted zones. Contact us for a site assessment and generator sizing recommendation.
