12M Max Pile Length Solar Pile Driver With 1900 Kg Hammer Weight

Core Keywords: pile driver, photovoltaic pile driver, solar pile driver, hydraulic vibratory hammer, excavator mounted pile driver, solar farm foundation equipment, hydraulic pile driver

Target Markets: Southeast Asia, India, Russia – regions with booming solar energy capacity, where fast, fuel‑efficient, and rugged piling equipment is essential for utility‑scale and commercial solar projects.

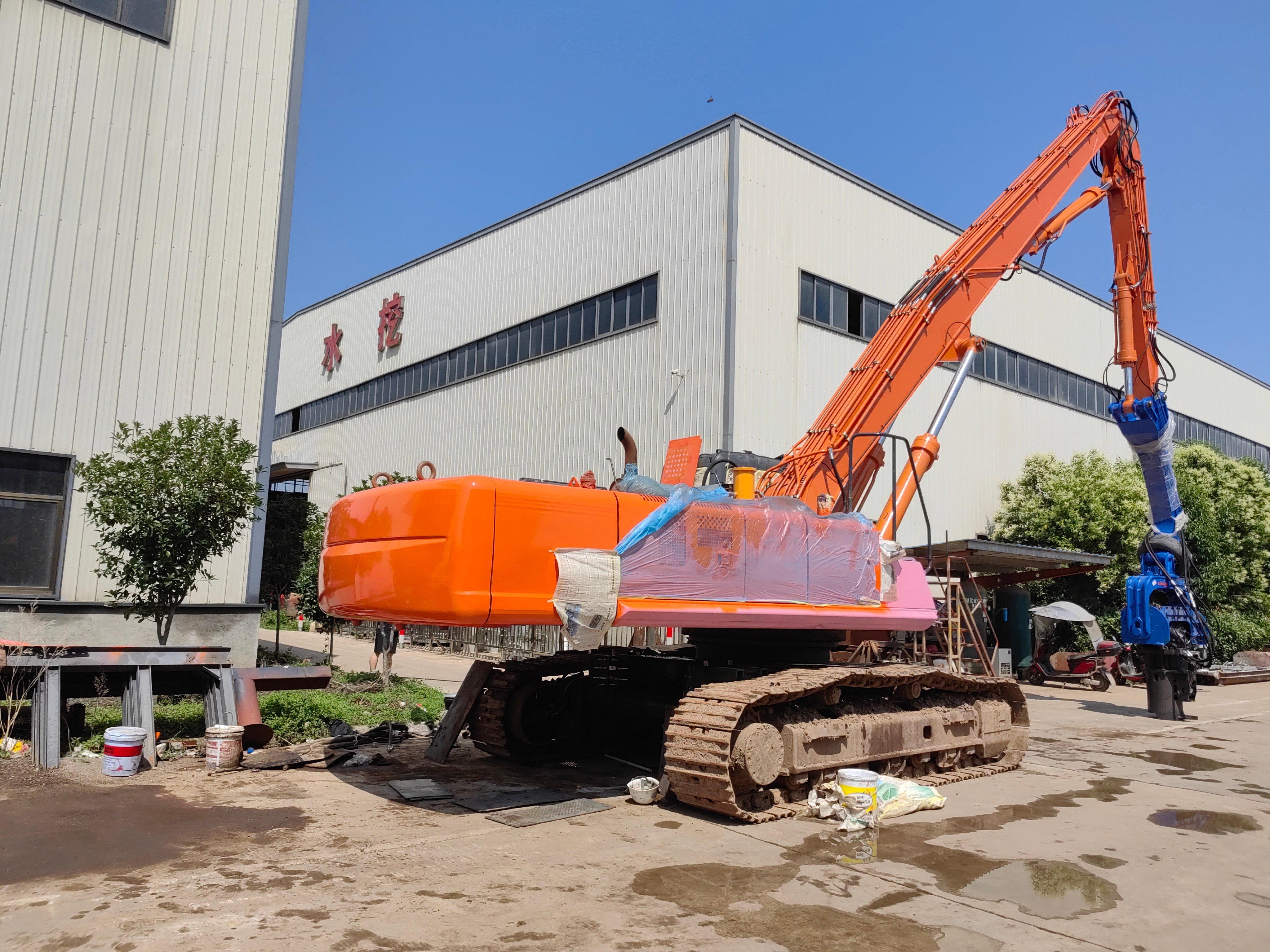

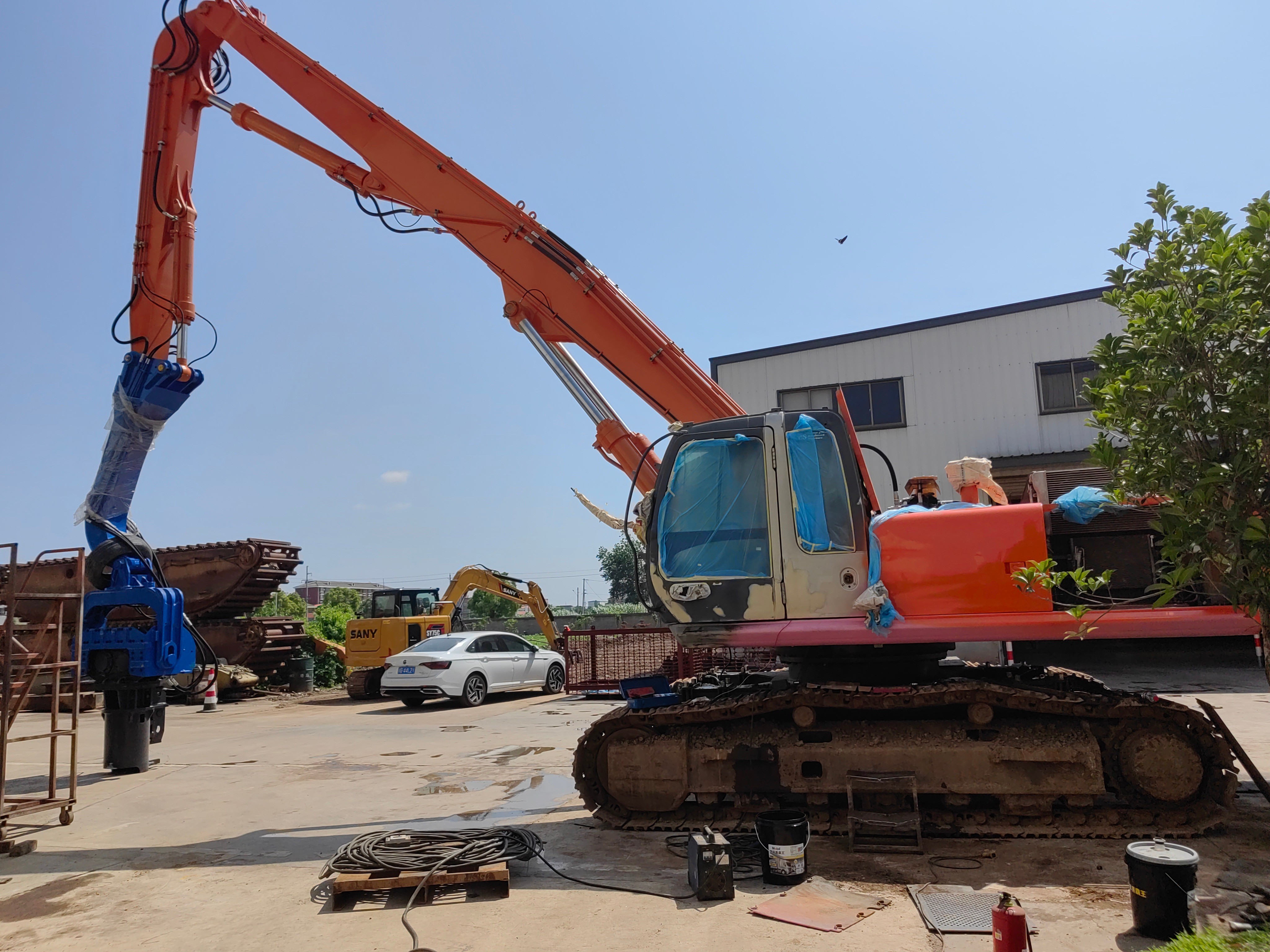

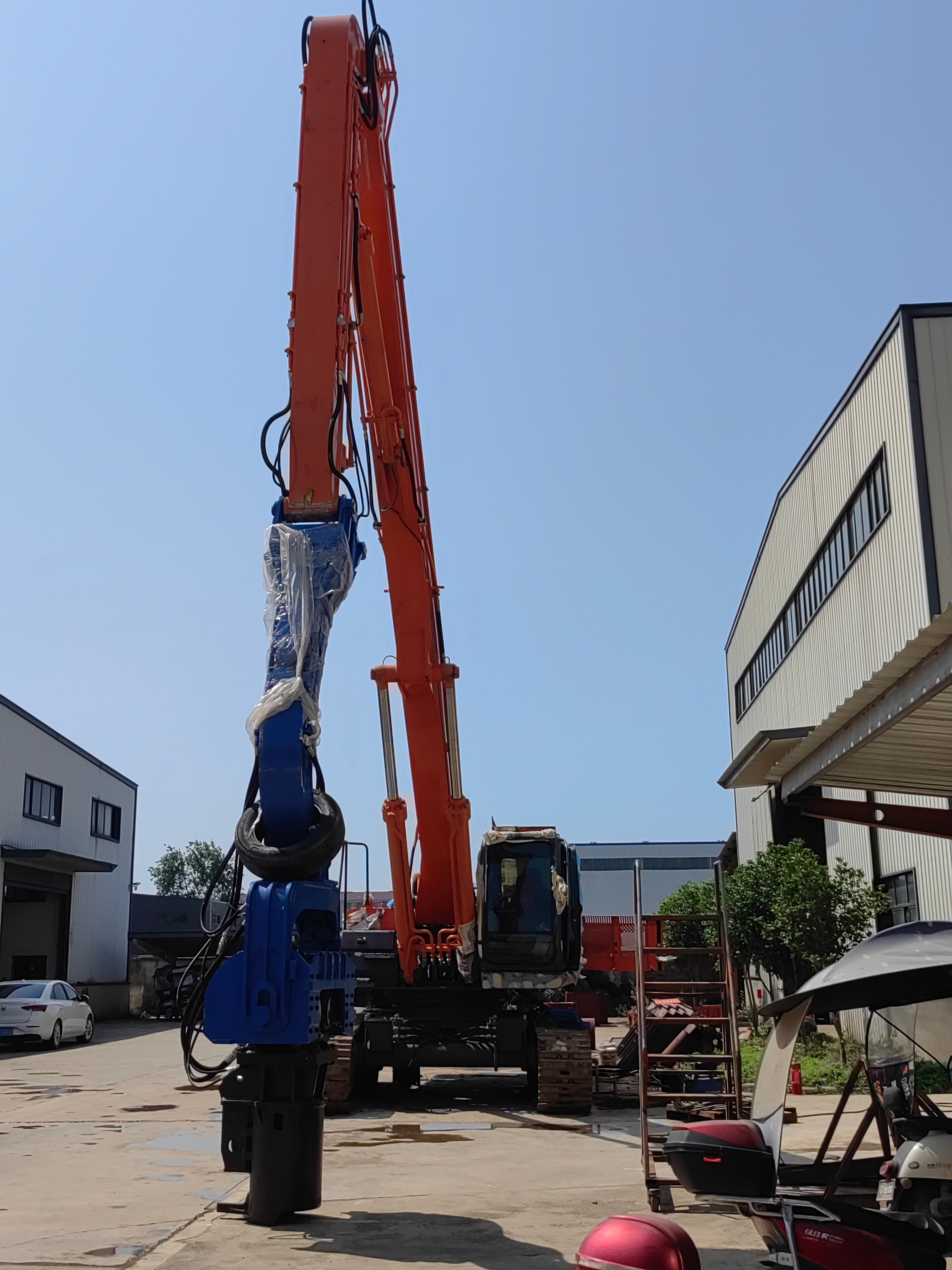

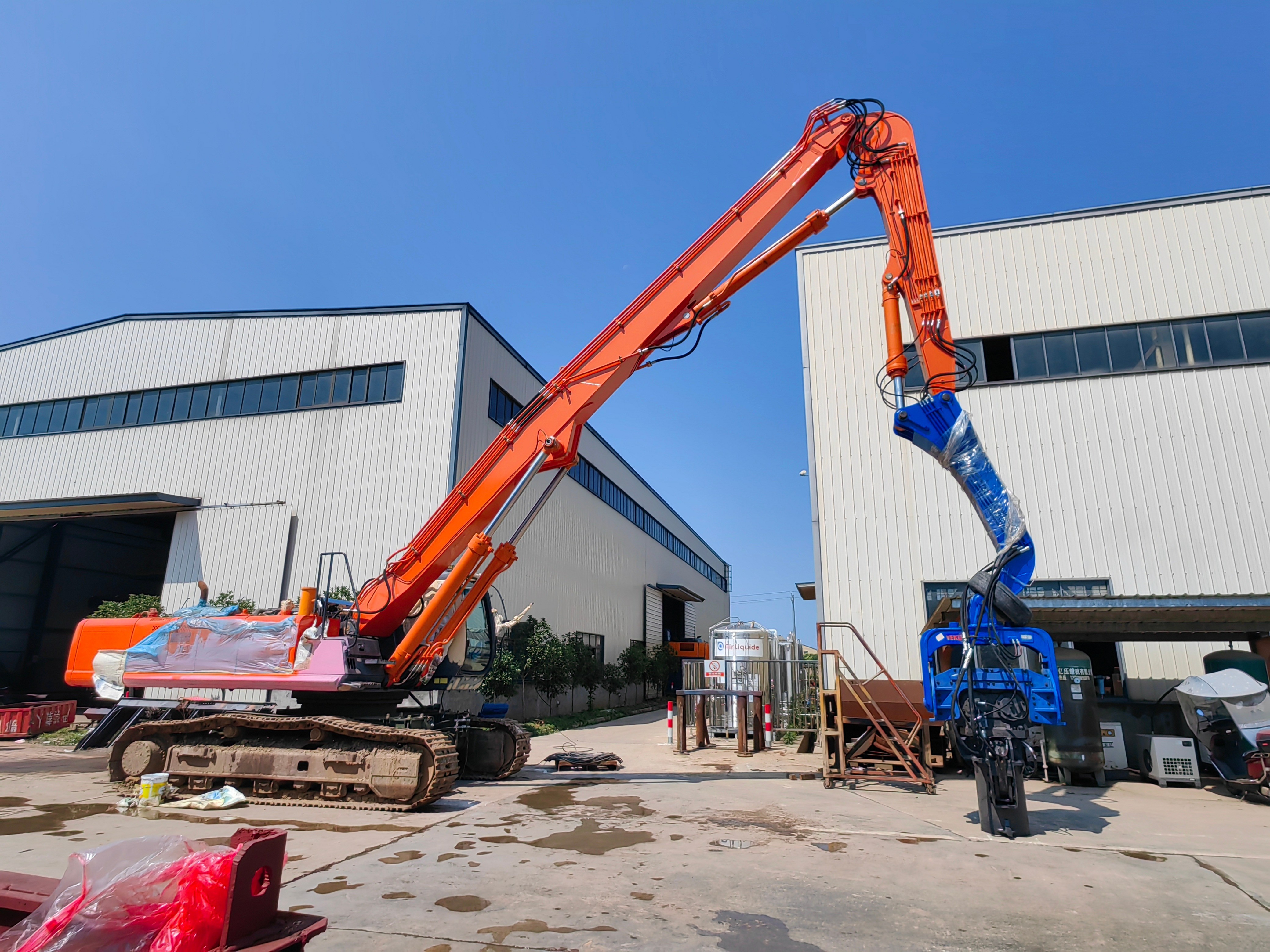

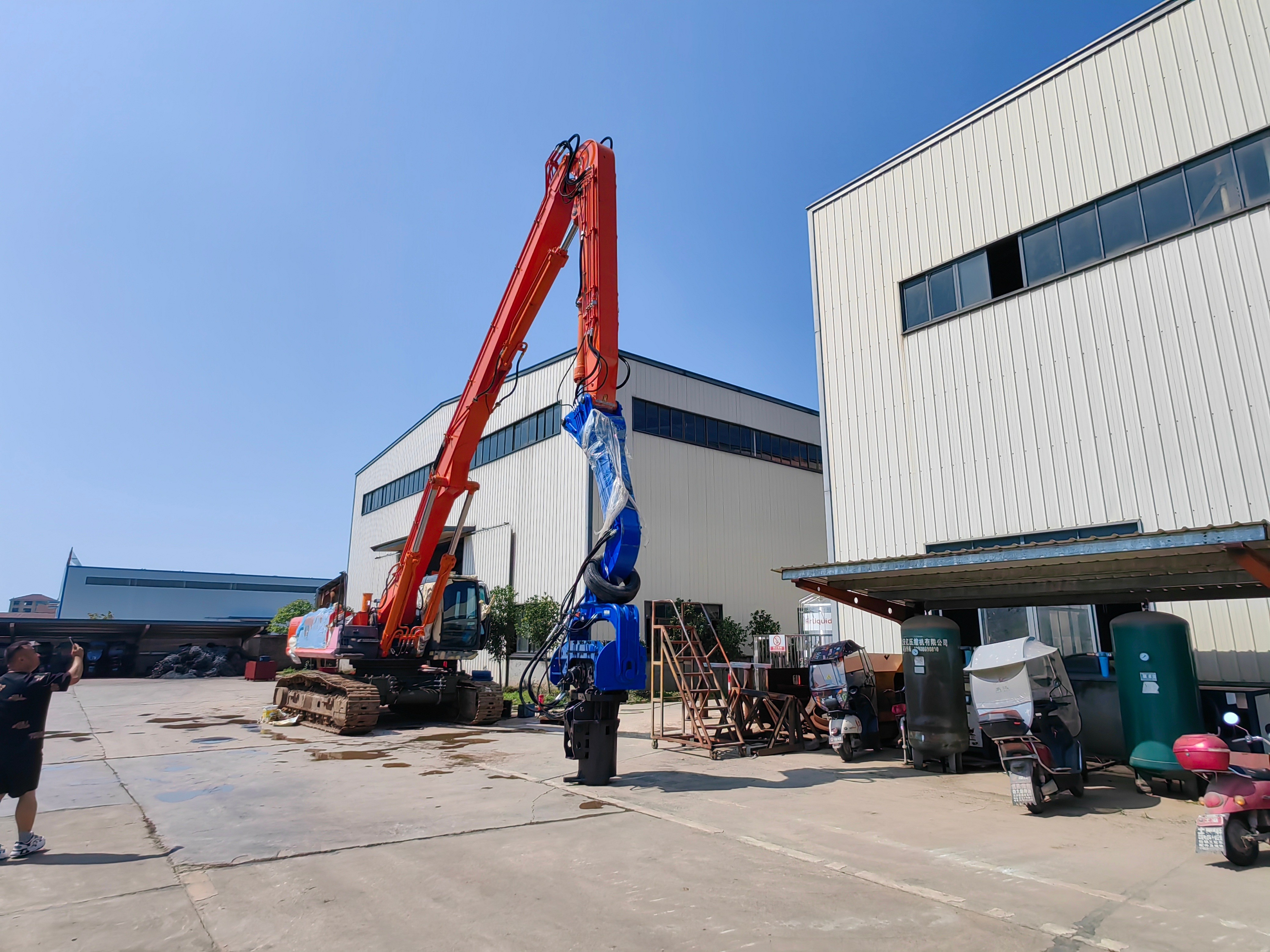

The VIBRA FV‑280 Photovoltaic Pile Driver is a dedicated hydraulic vibratory hammer designed specifically for driving piles in solar farm foundations. Unlike general‑purpose pile drivers, the FV‑280 is optimized for speed, precision, and low operating cost – helping contractors complete solar projects on time and within budget.

This pile driver attaches directly to 20‑30 ton excavators, using the excavator’s own hydraulic system. No external power pack, no generator – just one machine, one operator, and the ability to drive hundreds of piles per day.

Important clarification: The FV‑280 is a hydraulic pile driver. The term “Photovoltaic" refers to its application – installing piles for photovoltaic (solar) power plants. It does not run on solar energy.

• Designed for Solar Piles – Optimized for spiral steel piles, precast concrete piles, and H‑beams up to 12 meters in length – the standard for modern solar trackers and fixed arrays.

• Powerful Hydraulic Hammer – Hammer weight 1900 kg, arm weight 500 kg, delivering 335 kN centrifugal force at 2800 rpm.

• High‑Frequency Vibration – Rapid soil liquefaction reduces friction, allowing fast penetration even in compacted gravel, clay, or weathered rock.

• Direct Hydraulic Drive – Powered by your excavator’s auxiliary hydraulics (flow 240–320 L/min). No fuel‑hungry external power pack needed.

• Two‑Stage Vibration Control – Second stage boosts force when hitting hard layers – eliminates pile refusal.

• Compact & Balanced – Arm weight of 500 kg provides excellent stability without making the excavator nose‑heavy.

• 1‑Year Warranty – Full manufacturer’s warranty covering defects and workmanship.

• Easy Clamp Change – Quickly switch between different pile types and diameters.

✅ Faster Installation – Drive 80–120 solar piles per day (depending on soil and pile length). Compared to conventional hydraulic hammers, cycle time is reduced by 30–40%.
✅ Lower Operating Cost – Uses excavator’s own hydraulics – no extra fuel for a power pack, no additional machine to transport.
✅ Works in Remote Locations – Solar farms are often off‑grid. The FV‑280 only needs your excavator – perfect for desert or rural sites.
✅ Precision Depth Control – Operator can stop vibration at exact depth, ensuring uniform pile heights for mounting rails.
✅ Minimal Ground Disturbance – High‑frequency vibration liquefies soil locally without shaking nearby piles or damaging existing structures.
✅ Easy to Learn – Any experienced excavator operator becomes a solar piling specialist within one day.
✅ Built for Tough Climates – Sealed against dust (common in Indian and Russian semi‑arid regions) and designed for high ambient temperatures (up to 45°C). Cold‑climate options available for Russia.

*Required excavator hydraulic flow: 240–320 L/min. Compatible with all major brands (Cat, Komatsu, Hitachi,  SANY, XCMG, Liugong, etc.)*

• ☀️ Utility‑scale solar farms – Driving spiral steel piles for single‑axis trackers or fixed‑tilt arrays.

• ☀️ Commercial & industrial solar rooftops – Ground‑mounted systems on prepared sites.

• ☀️ Floating solar projects – Anchor pile installation on reservoir edges.

• ☀️ Agrivoltaic sites – Driving piles without damaging crops.

•
