Side Clamp Vibro Hammer Pile Driving Force for Heavy Duty Pile Driving Applications

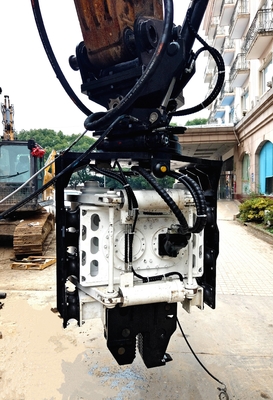

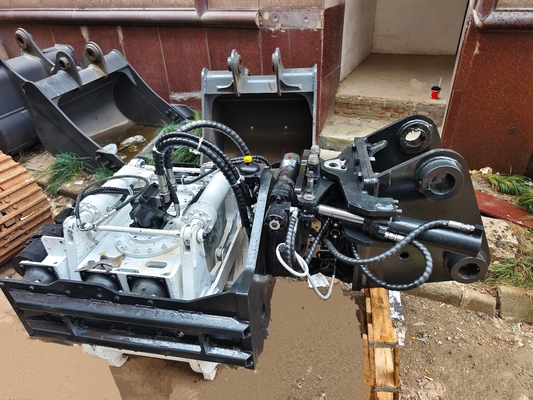

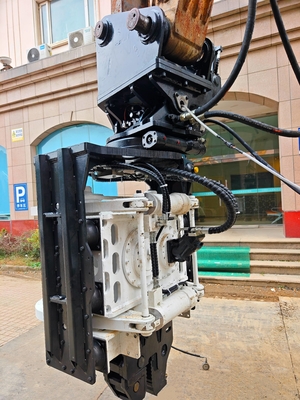

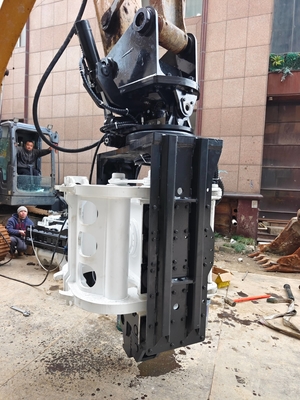

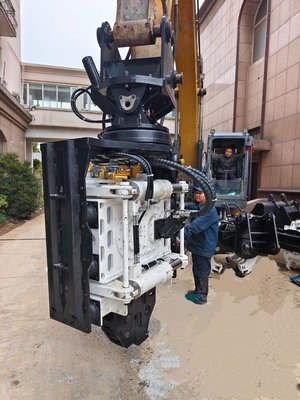

The VIBRA SV Series Side Grip Pile Driver (Models SV‑150 to SV‑500) is a next‑generation hydraulic vibratory hammer featuring side clamping technology and full 360° rotation with ±30° tilt. Unlike conventional top‑grip pile drivers, the side grip design allows operators to pick, position, and drive piles from the side – ideal for sheet pile walls, retaining structures, and foundation work in tight or uneven terrain.

Manufactured in China, the SV series attaches directly to 15–50 ton excavators, using the excavator’s hydraulic system (no external power pack). Whether you are driving steel sheet piles along a narrow riverbank or placing concrete piles for a bridge abutment, the VIBRA side grip pile driver delivers unmatched flexibility and control.

• Side Grip Clamping System – Dual clamps (side and bottom) securely hold piles of various shapes (U‑type, Z‑type sheet piles, pipe piles, H‑beams, concrete piles). Clamping force up to 565 kN (SV‑500).

• 360° Continuous Rotation + ±30° Tilt – Drive piles at any angle without repositioning the excavator. Perfect for raked piles, sloping ground, or working around obstacles.

• High Vibration Force – Centrifugal force from 310 kN to 772 kN depending on model. Vibration frequency adjustable from 2300–3100 rpm.

• Wide Excavator Compatibility – Matches 15‑ton (SV‑150) up to 50‑ton (SV‑500) excavators. One machine for multiple job sites.

• Heavy‑Duty Construction – Unit weight from 1950 kg to 4250 kg, built with high‑strength steel and German‑branded bearings for long service life.

• Hydraulic Direct Drive – Powered by excavator auxiliary hydraulics. No external power pack – lower fuel and transport costs.

• Compact Dimensions – Small footprint (e.g., SV‑300: 1343×1230×2923 mm) allows work in urban trenches and between existing piles.

✅ Superior Maneuverability – 360° rotation + side grip means you can drive piles parallel to walls, under overhead lines, or along curved alignments without moving the excavator. Saves 30–50% cycle time on sheet pile walls.

✅ Strong & Secure Clamping – Dual clamp design (side + bottom) prevents pile slippage even with heavy or lubricated piles. Clamping force independently controlled.

✅ Adjustable Vibration Frequency – Dial in the optimal frequency (2300–3100 rpm) for different soil types – soft clay, dense sand, gravel, or frozen ground (Russia). Two‑stage vibration optional.

✅ Works in Confined Spaces – Ideal for Indian narrow lanes, Indonesian dense urban sites, Russian industrial zones with limited access.

✅ Angled Pile Driving – ±30° tilt allows raked piles for retaining walls, bridge abutments, and solar tracker mounts – no special adapter needed.

✅ Easy to Operate – Any excavator operator learns side grip controls within hours. Intuitive joystick or valve control for clamp, rotation, tilt, and vibration.

✅ Low Maintenance – Simple modular design. Bearings and seals are standard sizes, available locally. Spare parts stocked in Shanghai for fast export.

✅ Built for Extreme Climates – High‑temperature hydraulics for India/SE Asia (up to 45°C). Low‑temp options for Russia (‑20°C synthetic oil, heated hoses).

Max pile diameter: up to 800 mm (depending on clamp jaws).
