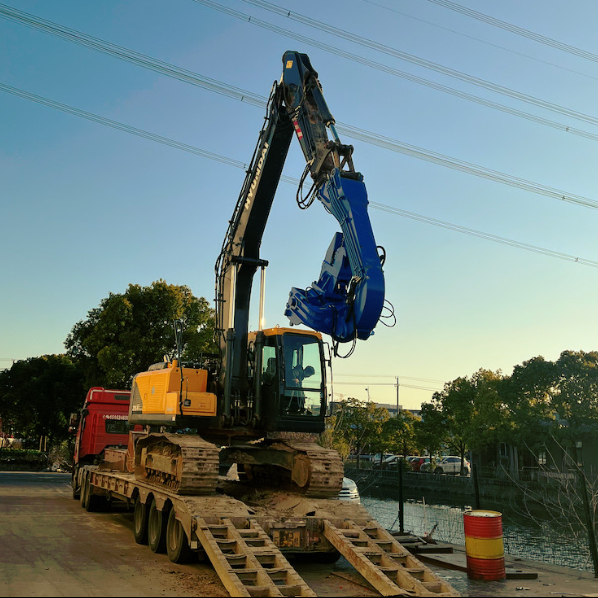

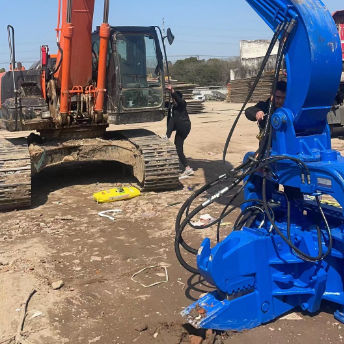

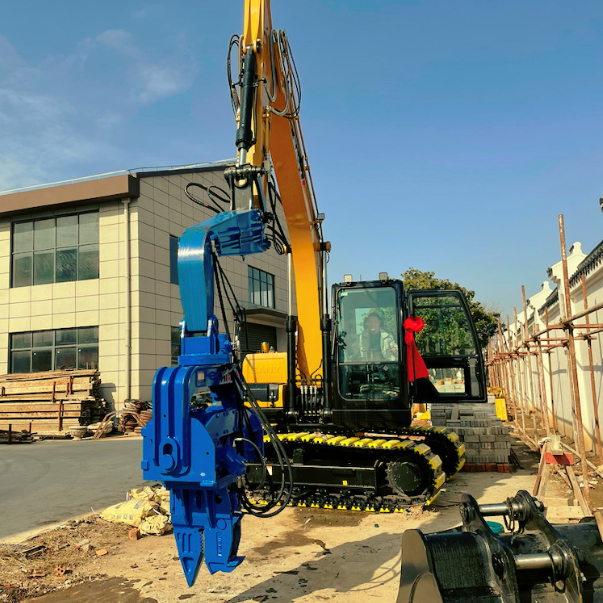

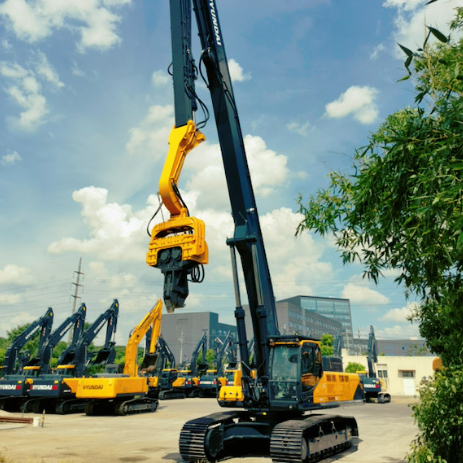

12 Meter Pile Driving Vibro Hammer For Sheet Piling And Pulling Construction Projects

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-330
Minimum Order Quantity 1 set
Price 17000 to 25000 USD
Packaging Details 5.824 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P, D/A, D/P, Western Union, MoneyGram
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Hammer Weight 2300 Kg
Feature Easy To Install And Possible To Drive Any Pile Vibration Frequency 3200rpm
Operation Pressure 32Mpa Centrifugal Force 372KN
Max.Pile Length 12m Arm Weight 670kg
Excavator 33~40Ton Color Blue/Yellow/Red/White, Customized Color Available
Material Steel, Core Materials Are All Imported HS Code 8430100000
High Light

12 Meter Pile Vibro Hammer

,

Sheet Pulling Vibro Hammer

,

2300kg Sheet Pile Driving Machine

Leave a Message
Product Description

12 meter pile driving vibro hammer for sheet piling and pulling construction projects



A "vibratory hammer/vibro hammer" is a tool used to drive piles in or out of the ground for building marinedocks, bridges, buildings, roads, rail, walls, and many other types of foundations. Traditional pile drivers are very loud and use a large weight to strike the pile. Vibratory hammers however are very quiet and have many advantages. A few advantages of VIBRA vibratory hammers are that they can drive piles much more quickly, extract old piles out of the ground, can be used underwater, are light weight, protect the environment (especially animal life), can be used in close proximity to residential areas without noise complaints, and are small and easy to ship.



Advantages

1. Can pull steel sheet pile, cement pile, rail pile, iron plate, H steel, steel pipe, and will not hurt steel pipe pile, steel sheet pile and rail pile top or bottom.
2. Pulling the pile when the required tension is much less than other systems, can be suitable for a variety of different work site needs, quality and long life.
3. Can often work in the vicinity of the building will not damage the building itself, the use of high-performance imported shock absorber rubber block, quiet operation and shorter duration, help to overcome environmental problems.

Features

  • Fast construction speed, wide range of working geology, and widely used in many fields of engineering construction at home and abroad.
  • Environmental protection type: low vibration and noise during construction, not disturbing the residents.
  • Novel design, small volume and convenient transportation.
  • Powerful and multiple function: Applied to various types of steel sheet piles, steel casing piles, vibro driven cast-in-place piles, surface compaction, deep compaction and cast-in-place thin-walled pile construction; also be used as PHC pile, steel sheet pile and steel casing.
  • Application range: widely used in municipal, water conservancy, construction, bridge, wharf, marine engineering and other pile foundation construction.
  • Main application fields of hydraulic vibration hammer at present: Steel sheet pile engineering, road and bridge engineering construction, vibration compaction construction, rotary pile driver construction, sinking pipe cast-in-place pile foundation construction, concrete sheet pile construction, offshore pile construction, pile foundation construction in sensitive areas, etc.
  • Permanent projects: wharf, water conservancy dike revetment, retaining wall, retaining wall, breakwater, diversion dike, dock, gate; offshore pile foundation construction, road and bridge engineering, civil construction, municipal engineering, water conservancy engineering, etc.
  • Temporary projects: Mountain sealing, temporary bank expansion, cut-off, bridge and cofferdam construction, earth retaining, water retaining and sand retaining for excavation of temporary ditches for large-scale pipeline laying; it can also be used for flood control, collapse prevention and quicksand prevention.

Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice


Technical Parameter

Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency  (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure  (Mpa) 30 32 32 32 32 32 32
Centrifugal Force  (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight  (kg) 500 500 670 670 670 750 750
Hammer Weight  (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator  (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60


About Us

Shanghai Yekun Construction Machinery Co., Ltd. was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.

We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.

Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.

FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: One set is available.

Q: What's the payment method ?

A: We accept L/C, T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 1-8 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
