Side Grip Excavator Mounted Hydraulic Vibro Hammer For Narrow Construction Projects

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number SV-200
Minimum Order Quantity 1 set
Price 40,000 to 60,000 USD
Packaging Details 5 CBM
Delivery Time 15-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Side Grip Pile Driver Feature Pile Driving In Small Working Areas
Vibration 3000 Rpm Centrifugal Force 332-384 KN
Hammer 1400-1700 Kg Excavator 20T
Material Steel, Core Materials Are All Imported Color Blue, Customized Color Available
HS Code 84301000 Size (LxWxH) 1320X1160X1820
Rotation/tilt Angle 360/+-30 Degree Eccentric Torque 3.07kgm
High Light

Narrow Construction Hydraulic Vibro Hammer

,

Excavator Mounted Vibratory Hammer

,

3000rpm Side Grip Vibro Hammer

Leave a Message
Product Description

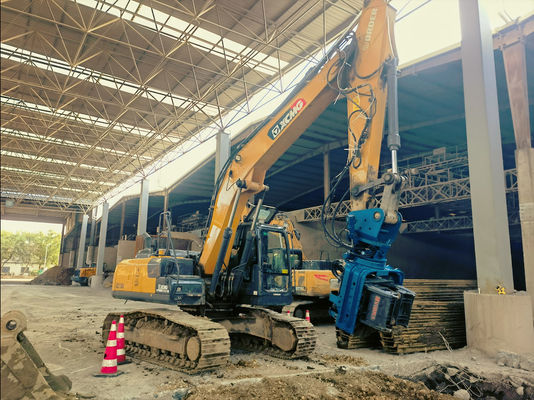

Side grip excavator mounted hydraulic vibro hammer for narrow construction projects

More secure and quicker than conventional Pile Drivers available, this model highlights a side and base clip to effectively pick up, tilt and turn piles for more precise outcomes.

VIBRA Side Grip Pile Driver is extraordinarily designed as excavator mounted vibro hammers. Side grip is handily adjusted to the excavator by association section created by VIBRA. execution, different capacities excavator mounted VIBRA side grip pile drivers give long life, issue free piling application.

VIBRA side grip pile driver saves time and money with elite execution and pile driving/extracting power. Side Grip Vibratory Hammer, can deal with, pitch and drive the sheet and tube piles. It is able to achieve the entire pile driving cycle without the requirement for manual treatment of the piles or helping machinery.



Advantages

VIBRA Side grip pile driver

❑ Specially designed for low clearance and narrow space construction environment such as workshop and bridge foundation.

❑ Suitable for 9~40 tons of standard excavator, through simple modification, installation difficulty is very low.

❑ Multi-functional fixture system, replaceable standard clamp interface, to meet the needs of steel sheet piles, H-beams and pipe piles and other pile types.

❑ Optional VIBRA NCS pile driver control system to provide auxiliary reference for pile driving operation, can display the hydraulic control system function information.


Parameter itemUnitSV-200SV-300
Eccentric momentKgm3.15.2
Vibration forceKn310518
range of rotationRpm2300-30002300-3000
Side clamp clamping forceKn332375
Bottom clamp clamping forceKn384435
Working pressureMpa3232
Working flow l/minl/min130-180200-280
Swivel/roll angle degrees °Degrees360/±30°360/±30°
Dimensions LxWxHMm1320x1160x18201310x1295x2410
Weight (including connection and fixture)kg17502380


Application Condition

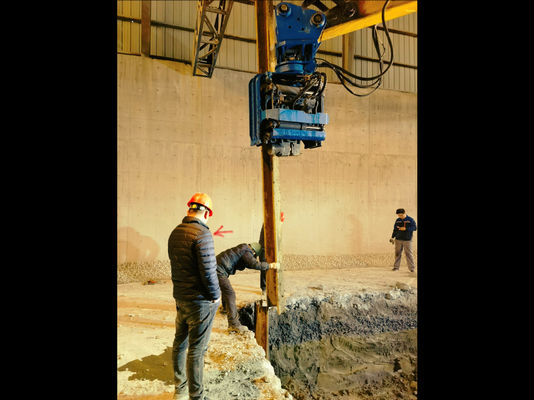

***It is specially developed and designed for low headroom and narrow space construction environments such as workshops and bridge foundations.

***Suitable for 9~40 tons of standard excavators, it can be easily modified and it is easy to install as well.

***Multifunctional clamp system, replaceable standard clamp interface, meet steel sheet pile, H type and v arious pile types such as steel and round pipe piles .

***Optional VIBRA NCS pile driver control system provides auxiliary parameters for piling operations. It can display various functional information of the hydraulic control system.

FAQ

Q: How long is the warranty period?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ?

A: 1 set is available.

Q: What's the payment method?

A: We accept T/T and D/P payment.

Q: What is the delivery time?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine?

A: Of course you can.

Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!

Q: How to order?

A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods are ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
