Small Excavator Mounted Sheet Pile Driver / Vibro Hammer For Construction Projects

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-150
Minimum Order Quantity 1 set
Price 13000 to 32000 USD
Packaging Details 4 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 15 set/month
Product Details
Name Mini Excavator Mounted Hydraulic Pile Driver Feature Fast Moving Technology For Fast Working Project
Vibration Frequency 2500rpm Operation Pressure 30Mpa
Arm Weight 260kg Hammer Weight 1100kg
Centrifugal Force 172KN Excavator 12-17T
Material Steel, Core Materials Are All Imported Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 As Pile Driver Accessories Type Hydraulic Vibrating Hammer
High Light

Small Excavator Mounted Sheet Pile Driver

,

Construction Excavator Mounted Sheet Pile Driver

,

2500rpm Hydraulic Vibro Hammer

Leave a Message
Product Description

Small excavator mounted sheet pile driver/vibro hammer for construction projects

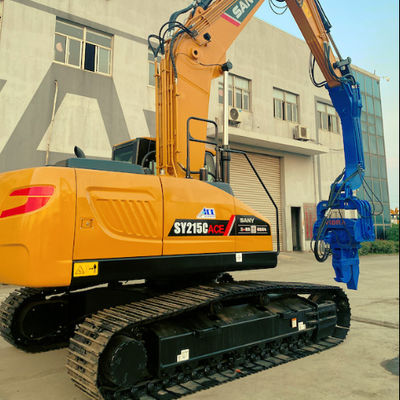

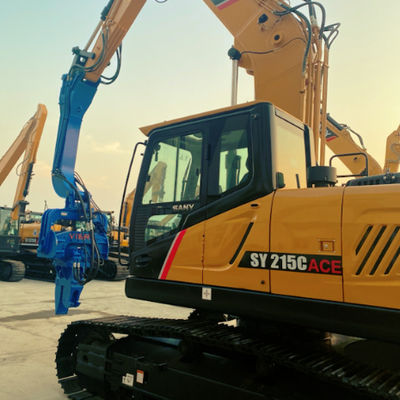

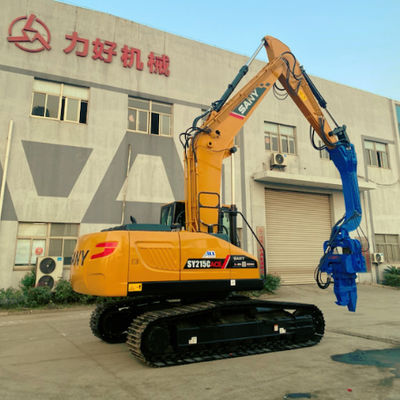

There was a time when people used to know that small excavator cannot be fitted with pile driver! In 2009 VIBRA research and development team solve the problem that small foundation pile cannot be mechanized construction piling work. Its birth fills the industry gap and changed the history, VIBRA has 3 models of mini pile driver namely FV100, FV150 and FV250 can be fitted with excavator from 6 to 18 ton. The structures are ultra-small and lightweight, and the vibration force is maximized. It can be use in the construction of narrow river course and house foundation, drawing steel sheet piles, cement piles, wooden piles, etc. VIBRA FV150 fitted with SANY SY215C ACE excavator which will be use for 8-meter sheet pile driving work nearby a cannel in Jiading District, Shanghai, China. Customer is happy for the easy installation of mini pile driver!



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60





Small Excavator Mounted Sheet Pile Driver / Vibro Hammer For Construction Projects 0

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
