Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects

  • Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects
  • Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects
  • Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects
  • Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects
  • Side Grip Excavator Mounted Hydraulic Vibro Hammer - Space-Saving & High Efficiency For Narrow Construction Projects
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number SV-200
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 5 CBM
Delivery Time 15-35 days
Payment Terms T/T,D/P,Western Union,MoneyGram,L/C
Supply Ability 10 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Side Grip Pile Driver Feature Pile Driving In Small Working Areas
Vibration 3000 Rpm Centrifugal Force 332-384 KN
Hammer 1400-1700 Kg Excavator 20T
Material Steel, Core Materials Are All Imported Color Blue, Customized Color Available
HS Code 84301000 Size (LxWxH) 1320X1160X1820
Rotation/tilt Angle 360/+-30 Degree Eccentric Torque 3.07kgm
Highlight

Narrow Construction Hydraulic Vibro Hammer

,

Excavator Mounted Vibratory Hammer

,

3000rpm Side Grip Vibro Hammer
Leave a Message
Product Description

Core Keywords

Side Grip Pile Driver, Excavator Mounted Side Grip Pile Driver, Narrow Space Side Grip Pile Driver, Hydraulic Vibro Side Grip Pile Driver, SV-200/SV-300 Side Grip Pile Driver

Product Overview

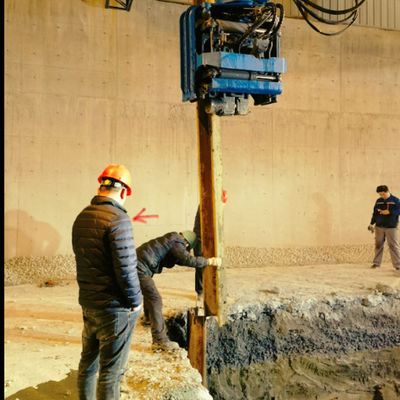

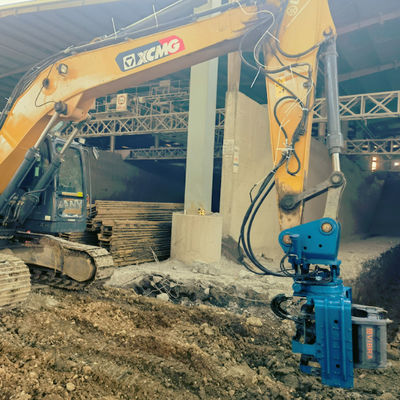

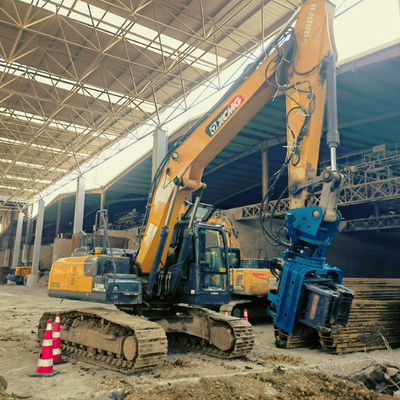

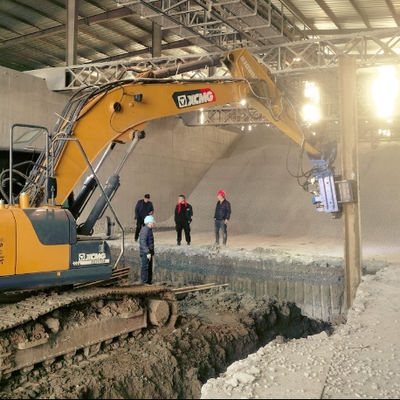

VIBRA Side Grip Pile Driver is an excavator-mounted hydraulic vibro hammer, specially designed for low clearance and narrow space construction (e.g., workshops, bridge foundations). It fits 9~40-ton standard excavators via VIBRA’s custom connection section, with easy modification and low installation difficulty. This equipment efficiently handles pile driving/extracting, can tilt and turn sheet/tube piles, and completes the entire piling cycle without manual handling or auxiliary machinery, saving time and costs.

Key Features

  1. Space-Adaptable Design: Optimized for narrow and low-headroom environments, solving space constraints in workshop or bridge foundation construction.
  2. Excavator Compatibility: Easily mounts on 9~40-ton standard excavators; simple modification reduces installation complexity.
  3. Multi-Functional Fixtures: Replaceable standard clamp interface supports steel sheet piles, H-beams, pipe piles, and other pile types.
  4. Efficient Operation: Achieves full piling cycles independently, no need for manual pile handling or helping machinery; optional VIBRA NCS control system provides hydraulic function info for auxiliary operation.
  5. Durable Performance: Delivers reliable, long-lasting piling applications with strong vibration force and stable clamping, ensuring trouble-free use.

Equipment Advantages

  • Saves time and money with high performance and powerful pile driving/extracting capabilities.
  • 360° swivel and ±30° roll angles enable precise pile positioning for accurate construction.
  • Strictly complies with "Technical Conditions for Pile Driver Enterprises" to guarantee product quality.
  • Strong clamping force (side clamp: 332~375 KN; bottom clamp: 384~435 KN) ensures stable pile handling.

Technical Parameters

Parameter Item Unit SV-200 SV-300
Eccentric Moment Kgm 3.1 5.2
Vibration Force Kn 310 518
Range of Rotation Rpm 2300-3000 2300-3000
Side Clamp Clamping Force Kn 332 375
Bottom Clamp Clamping Force Kn 384 435
Working Pressure Mpa 32 32
Working Flow l/min 130-180 200-280
Swivel/Roll Angle Degrees 360/±30° 360/±30°
Dimensions (LxWxH) Mm 1320x1160x1820 1310x1295x2410
Weight (Including Connection & Fixture) kg 1750 2380

FAQ

Q: How long is the warranty period?

A: The warranty period is 12 months from the date of completion of installation, covering the mainframe and key components, except for wearing parts.

Q: What is the MOQ?

A: 1 set is available.

Q: What's the payment method?

A: We accept T/T and D/P payment.

Q: What is the delivery time?

A: The delivery time is generally 7-35 days, with goods arriving at Shanghai Port. Shipping time should be considered for overseas orders.

Q: Can I have our LOGO on the machine?

A: Of course you can.

Q: How is your product quality?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!

Q: How to order?

A: 1. Please tell us the model, quantity, and other requirements you need. 2. We issue the Proforma Invoice to you after confirming the price and other details. 3. We arrange the order production upon receipt of the confirmed PI and your deposit or original L/C. 4. After the goods are ready to ship, we will inform you of the shipment date and other information by email at the same time. 5. We will help to track your goods until you receive them safely.
