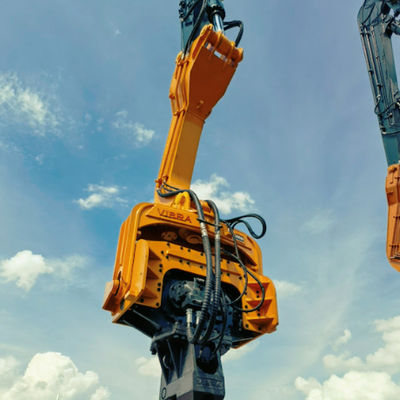

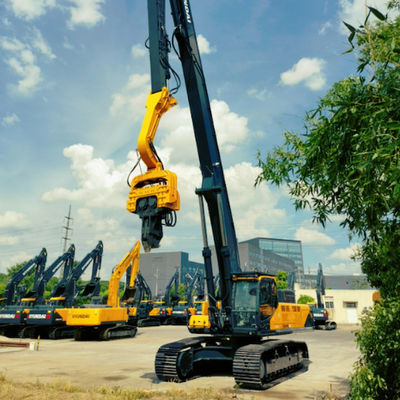

Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions

  • Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions
  • Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions
  • Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions
  • Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions
  • Sheet Pile Driver with Vibro Hammer for Excavators - Built for Hard Soil Conditions
Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-350L
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 7.824 CBM
Delivery Time 7-35 days
Payment Terms L/C,T/T,D/P,D/A,D/P,Western Union,MoneyGram
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Arm Weight 670kg
Hammer Weight 2400kg Operation Pressure 32Mpa
Vibration Frequency 3200 Rpm Max.Pile Length 15m
Centrifugal Force 435kn Excavator 35~40 Ton
Material Steel, Core Materials Are All Imported Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 Type Hydraulic Vibrating Hammer
Highlight

15 Meter Excavator Mounted Vibro Hammer

,

Hard Soil Sheet Pile Driver Machine

,

35T Sheet Pile Driving Machine
Leave a Message
Product Description

Core Keyword: Pile Driver

Product Tagline: Powerful. Adaptable. Engineered for Hard Soil.

Our FV Series Hydraulic Vibro Pile Driver is a high-performance, excavator-mounted attachment designed to conquer the most challenging ground conditions. From hard soil to complex terrains, this pile driver delivers unmatched efficiency and reliability for your piling projects. By integrating advanced European and American hydraulic technology with our robust engineering, we offer a solution that stands out in the industry for its durability and power.


Key Features & Advantages

Our excavator-mounted pile driver is packed with features that translate into real-world advantages on your job site.

Feature Advantage & Benefit
High-Power Vibro Hammer Generates immense centrifugal force for effective pile driving and extraction in hard soil.
Advanced Box Structure Design Ensures high reliability, extends bearing service life, and reduces long-term maintenance costs.
Two-Stage, Adjustable Vibration Allows operators to match the frequency and power to the soil conditions, maximizing efficiency.
180° Rotational Clamp Provides exceptional flexibility in positioning sheet piles in tight or complex sites.
Integrated Noise & Vibration Dampening Rubber sheath minimizes noise and vibration, making it ideal for urban and environmentally sensitive areas.
Universal Excavator Compatibility Works with any brand of excavator (20T-60T), requiring only a change of chucks for different piles.
Compact & Lightweight Design Offers high power-to-weight ratio, preserving machine mobility and reducing fuel consumption.
Non-Destructive Clamping Carefully grips piles without damaging the top or bottom, preserving your materials.
Simple Operation & Control Features an integrated import control valve; any experienced excavator operator can learn it quickly.

Technical Parameters

Find the perfect model for your project's requirements.

Model FV-250 FV-280 FV-300 FV-330 FV-350S FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max. Pile Length (m) 10 12 12 12 15 15 18
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Recommended Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60

Frequently Asked Questions (FAQ)

Q: What is the warranty period for the pile driver?

A: We offer a 12-month warranty from the date of installation, covering the mainframe and key components (wearing parts excluded).

Q: What is the Minimum Order Quantity (MOQ)?

A: The MOQ is one set, making it easy to equip your fleet.

Q: What payment methods do you accept?

A: We offer flexible payment options, including L/C, T/T, and D/P.

Q: What is the delivery time?

A: Delivery is typically within 1-8 days to Shanghai Port. Final delivery times will vary based on your destination.

Q: Can I add my company's LOGO to the machine?

A: Yes, we welcome logo customization to meet your branding needs.

Q: How is your product quality ensured?

A: Our pile drivers are manufactured in strict accordance with the "Technical Conditions for Pile Driver Enterprises" standards, guaranteeing high quality and performance.

Q: Can I become your dealer or agent?

A: Absolutely! We are actively seeking dealers and regional agents to join us as strategic partners and grow together.
