CMD Chain Cutter For High-Efficiency Soil Stabilization in Dam & Embankment Construction

  • CMD Chain Cutter For High-Efficiency Soil Stabilization in Dam & Embankment Construction
  • CMD Chain Cutter For High-Efficiency Soil Stabilization in Dam & Embankment Construction
Place of Origin CHINA
Brand Name VIBRA YEKUN
Certification ISO 9001:2015
Model Number CMD 5000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details 10 CBM
Delivery Time 15-45 days
Payment Terms T/T
Supply Ability 5 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CMD Series Chain Cutters Feature High Torque
Excavator 35 ~ 50 Ton Power 130 Kw
Mix Width 400~500 Mm Mixing Depth 1000~5000 Mm
Length Of Cutter 3200~7200 Mm Color Blue/Yellow/Red/White, Customized Color Available
Highlight

Soil Stabilization Construction Chain Cutters

,

CMD Chain Cutters

,

Bore Drilling Hydraulic Chain Cutter
Leave a Message
Product Description

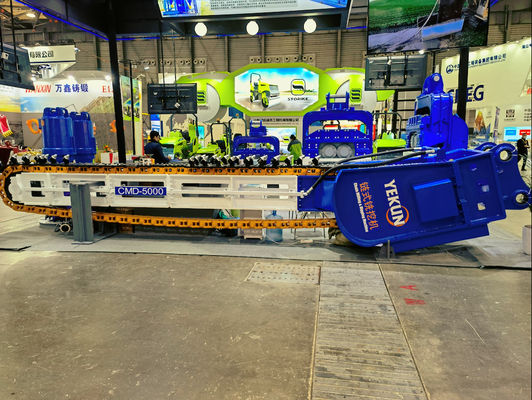

CMD Chain Cutter For High-Efficiency Soil Stabilization in Dam & Embankment Construction
Core Product Keywords

CMD Chain Cutter, Soil Stabilization Cutter, Deep Soil Mixing Equipment, Hydraulic Chain Cutter, Dam Embankment Construction, Soil Cement Mixing Machine, VIBRA YEKUN.


Product Introduction

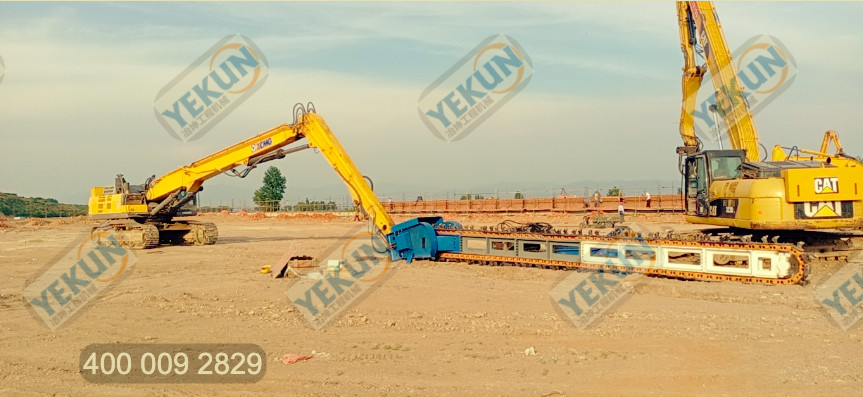

The CMD Series Chain Cutter is an innovative, R&D-driven solution designed for in-situ soil stabilization and improvement. It revolutionizes dam embankment and foundation construction by simultaneously cutting and injecting cement slurry into the soil, creating a high-strength, watertight, and durable soil-cement structure directly on site, eliminating the need for extensive soil removal.

Key Features & Advantages
Feature Advantage & Benefit
In-Situ Soil-Cement Mixing Simultaneously cuts and injects binder slurry to transform weak, non-load-bearing soil into a stable, waterproof, and freeze-resistant soil-cement structure. This eliminates costly soil excavation and transportation.
High-Torque Hydraulic Drive Powered by dual high-torque motors and planetary reducers (up to 80,000 Nm), delivering maximum cutting power and efficiency for deep soil consolidation (up to 10m).
Integrated Mixing & Infusion System A complete upper and lower mixing tank system with slurry pumps ensures precise, consistent slurry preparation and injection for uniform soil improvement.
Wear-Resistant Construction Built with specially designed, highly wear-resistant chain plates, pick blocks, and teeth for extended service life and reduced downtime in abrasive conditions.
Environmentally Efficient Extremely low vibration minimizes impact on surroundings. The process saves time, increases construction efficiency, and meets strict environmental requirements for dam projects.
Product Technical Parameters
Parameter Unit CMD5000 CMD10000
Recommended Excavator Weight Tons 35~50 50~80
Mixing Depth Meters 1.0~5.0 1.5~10.0
Mix Width mm 400~500 500~600
Theoretical Output Torque Nm 40,000 80,000
Power Rating kW 130 220
Recommended Oil Flow Rate l/min 300~350 350~500
Cutting Machine Weight kg 6,182 10,082
Frequently Asked Questions (FAQ)

Q1: What is the core working principle of the CMD Chain Cutter?

A1: It performs Deep Soil Mixing (DSM). While its heavy-duty cutting chain excavates, it simultaneously injects a cement-based binder slurry into the soil. This creates a homogeneous, cured soil-cement column or wall in place, dramatically improving load-bearing capacity and watertightness.

Q2: What are the main advantages over traditional soil replacement methods?

A2: The key advantages are major cost and time savings (no need to remove/transport poor soil), minimal environmental disruption (low vibration, in-situ treatment), and the creation of a superior, engineered structure that is waterproof, stable, and durable.

Q3: What types of projects is this machine best suited for?

A3: It is ideally suited for dam and levee embankment stabilization, foundation improvement for large structures, creating underground cut-off walls for water retention or pollution control, and any project requiring deep, in-situ soil enhancement.

Q4: How do I select between the CMD5000 and CMD10000 models?

A4: The choice depends on your project's required depth and excavator size. The CMD5000 (for 35-50T excavators) handles depths up to 5 meters, while the CMD10000 (for 50-80T excavators) can reach depths of 10 meters. The larger model also provides greater torque and mixing width.

Q5: What is your company's background in manufacturing such specialized equipment?

A5: Shanghai Yekun Machinery Co., Ltd., with over a decade of expertise in hydraulic construction machinery like pile drivers, invests in R&D and collaborates with industry experts to develop innovative solutions like the CMD Series. We ensure high quality and provide full technical support to global clients.


About VIBRA YEKUN / Shanghai Yekun Machinery

We are a professional manufacturer focused on advanced hydraulic equipment for the global infrastructure sector. Through continuous Research and Development, we create patented solutions like the CMD Chain Cutter to solve complex engineering challenges. Our commitment to quality, innovation, and partnership allows us to deliver equipment that enhances productivity, profitability, and project outcomes for our clients worldwide.

Innovate. Stabilize. Build to Last.
