Heavy-Duty Pile Driver | 3.3 Ton Vibrating Hammer for Large Steel Plate Pile Construction

Heavy-Duty Pile Driver | 3.3 Ton Vibrating Hammer for Large Steel Plate Pile Construction

Core Keywords: Pile Driver, Hydraulic Pile Driver, Heavy-Duty Pile Driver, Vibrating Pile Hammer, Steel Plate Pile Driver, Large Pile Driving Equipment

Product Overview

The PCF Series Heavy-Duty Hydraulic Vibrating Pile Driver is engineered for modern steel plate pile construction, offering high-performance pile driving solutions for large-scale infrastructure and industrial projects. As pile driving equipment evolves toward specialization and increased capacity, our PCF-500 and PCF-600 models set new standards in power, precision, and reliability. Designed for driving large steel sheet piles, steel protective cylinders, and PC mixed piles up to 24 meters in depth, these heavy-duty pile drivers ensure efficient performance across diverse construction environments.

Technical Highlights

• Enhanced Hydraulic Control: Equipped with a new electric control system and a large-flow confluence valve (700L capacity), supported by 1½-inch body pipelines to improve efficiency and extend component life.

• Reinforced Structural Design: Features strengthened structural parts and an additional connection shaft to ensure balanced force distribution and eliminate weak points.

• Self-Lubricating Bearing System: The box bearing self-lubrication system enhances durability and ensures stable, long-term operation.

• High-Pressure Clamping System: Includes a super-strong cast steel chuck paired with a 160 cylinder, delivering a clamping force of 602 kN at 30 MPa for secure and stable pile handling.

• Premium Vibration Components: Powered by an imported Parker motor, Swedish SKF bearings, and high-end gear components for consistent and powerful vibration output.

• Heavy-Duty Compatibility: Designed to match 60–68 ton excavators with engine power ranging from 320–345 kW and a maximum hydraulic pump flow of 760 L/min.

Technical Parameters

Competitive Advantages

• High-Strength Construction: Structural components are made from Q420 high-strength steel plate, ensuring durability under heavy loads.

• Rigorous Quality Assurance: Each machine undergoes strict quality inspections to guarantee stable and reliable functionality.

• Full System Integration: Machines are fully run-in and tested with compatible hosts to maximize overall performance and operational harmony.

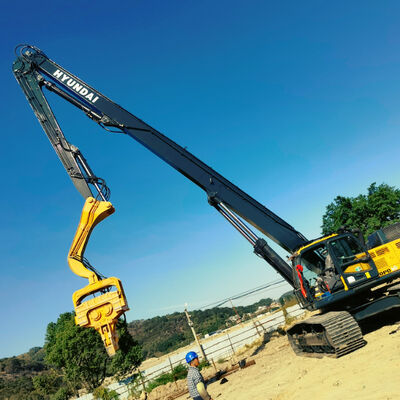

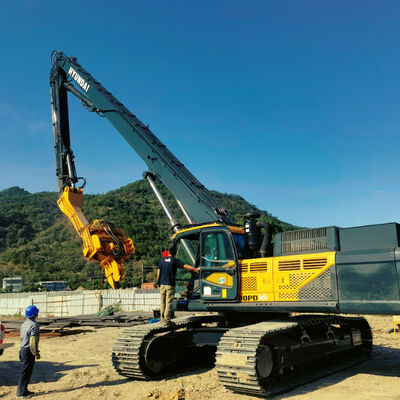

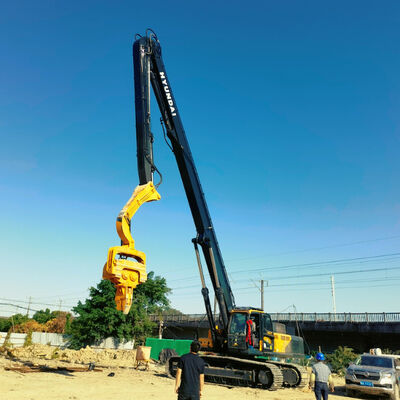

• Proven Compatibility: Successfully matched with Caterpillar 374 and Hitachi 850 excavators, delivering powerful and efficient pile driving for 24-meter piles.

Frequently Asked Questions (FAQ)

Q: Are you a manufacturer?
A: Yes, we have over 12 years of experience in the industry, with our factory located in Suzhou. Visits are welcome during working hours.

Q: Who are your main customers?
A: Our customer base spans across China and includes international clients from New Zealand, Malaysia, Indonesia, and more. We also serve leading brands such as XCMG, SANY, Zoomlion, Caterpillar, and Hyundai.

Q: What is the warranty period?
A: We offer a 12-month warranty from the installation completion date, covering the mainframe and key components (excluding wear parts).

Q: What is the minimum order quantity?
A: Orders start from 1 set.

Q: What payment methods do you accept?
A: We accept T/T (Telegraphic Transfer).

Q: What is the delivery time?
A: Delivery typically takes 7–35 days to Shanghai Port, plus international shipping time based on destination.

Q: Can you apply our company logo to the machine?
A: Yes, we offer logo customization upon request.

Q: How do you ensure product quality?
A: All equipment is manufactured in strict compliance with national “Technical Conditions for Pile Driver Enterprises” standards.

Q: Can I become a dealer?
A: We welcome dealers and are keen to develop regional partnerships and strategic collaborations.
