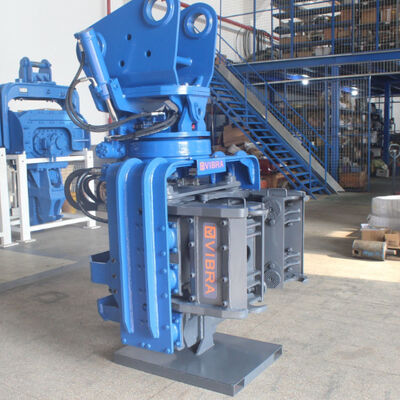

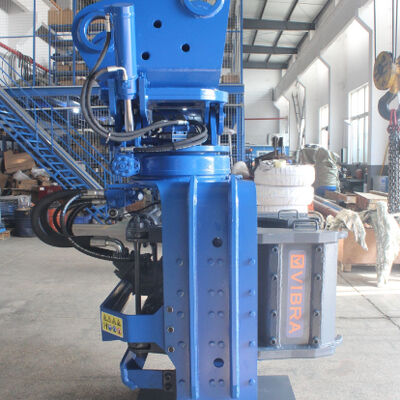

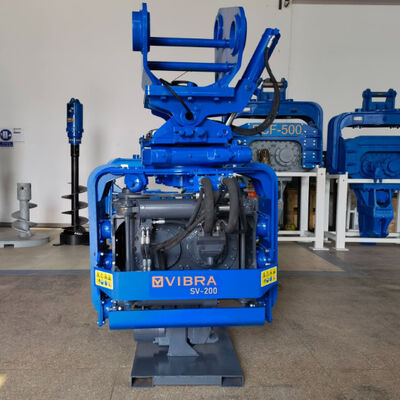

Side Grip Pile Driver for Narrow Spaces: 9-Meter Vibro Hammer for Confined Work Sites
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SIde Grip Pile Hammer | Feature | Can Work In Narrow Working Space |
|---|---|---|---|
| Vibration | 2300-3000 Rpm | Operation Pressure | 32 Mpa |
| Centrifugal Force | 310 KN | Max.Pile Length | 8 M |
| Hammer | 1750 Kg | Dimension | 1320X1160X1820 |
| Highlight | 9 Meter Side Grip Vibro Hammer,Narrow Working Space Pile Drivers,3000 Rpm Side Grip Vibro Hammer |
||
Product Description
Side Grip Pile Driver for Narrow Spaces: 9-Meter Vibro Hammer for Confined Work Sites
Overview
The VIBRA Side Grip Pile Driver is a hydraulic vibratory hammer specially engineered for confined and low-clearance work environments. Designed for excavator mounting, it delivers secure, rapid, and precise pile driving – outperforming conventional pile drivers with its unique side and base clip mechanism. Ideal for applications such as bridge foundations, workshop sites, and urban construction, this versatile machine combines high efficiency, robust performance, and exceptional adaptability to multiple pile types and ground conditions.
Key Features
-
Side Grip Design – Enables easy pickup, tilting, and 360° rotation of piles, allowing precise placement without manual handling or auxiliary machinery.
-
Narrow Space Optimized – Built for low-clearance and restricted-access sites, making it perfect for workshop interiors, bridge underpasses, and urban infrastructure projects.
-
Hydraulic Excavator Integration – Compatible with 9–40 ton standard excavators; simple mounting system ensures quick installation and operation by the excavator operator.
-
Multi-Pile Compatibility – Suitable for sheet piles, casing piles, H-beams, I-beams, steel tubes, and pipe piles with a replaceable clamp interface.
-
VIBRA NCS Control System (Optional) – Provides real-time operational feedback and hydraulic system monitoring for improved accuracy and control.
Key Benefits
-
✅ Faster & More Secure – Side-grip mechanism reduces cycle time and enhances stability compared to conventional pile drivers.
-
✅ Versatile & Adaptive – Works across varied ground conditions and pile types with a synchronized, wide-opening clamp system.
-
✅ Cost & Time Efficient – Minimizes manual labor, eliminates need for additional machinery, and ensures long service life with low maintenance.
-
✅ Ergonomic & User-Friendly – Designed for ease of operation, with durable construction and simple maintenance requirements.
-
✅ High Precision & Control – Allows fine-tuned pile positioning and driving energy optimization for consistent results.
Technical Specifications
-
Model: VIBRA Side Grip Pile Driver
-
Color: Blue
-
Working Depth: Up to 9 meters
-
Mounting: Compatible with 9–40 ton excavators
-
Drive System: Hydraulic, powered by excavator
-
Clamp System: Multi-functional, replaceable interface
-
Rotation: 360° capability
-
Pile Types: Sheet, H-beam, pipe, casing, and tube piles
-
Control Option: VIBRA NCS Pile Driver Control System (optional)
Frequently Asked Questions (FAQ)
Q: What is the warranty period?
A: We offer a 12-month warranty from the date of installation completion, covering the main unit and key components (excluding wear parts).
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is 1 unit.
Q: What payment methods do you accept?
A: We accept T/T (Telegraphic Transfer).
Q: What is the delivery time?
A: Delivery typically takes 8–35 days to Shanghai Port, subject to stock availability and shipping arrangements.
Q: Can you customize the machine with our logo?
A: Yes, logo customization is available. Please inform us during the order placement process.
Q: How is your product quality assured?
A: Our equipment is manufactured in compliance with industry technical standards and supported by ISO certification. Each unit undergoes strict quality control.
Q: Can we become your dealer or distributor?
A: We welcome dealership inquiries and are open to developing long-term partnerships, including regional agency agreements.
Why Choose VIBRA?
Shanghai Yekun Construction Machinery Co., Ltd. specializes in the design, manufacturing, and service of hydraulic vibratory pile drivers. With a focus on innovation, reliability, and customer-driven solutions, our products are widely used in infrastructure and construction projects worldwide. Backed by international technical expertise and a commitment to engineering excellence, VIBRA delivers equipment that is both high-performing and durable.
One Machine – Multiple Piling Solutions.
