Sheet Piling Pulling Excavator Mounted Pile Driver 18 Meter 535KN

Place of Origin SHANGHAI
Certification ISO 9001:2015
Model Number PCF-450
Minimum Order Quantity 1 set
Price 15000 to 35000 USD
Packaging Details 7.6 CBM
Delivery Time 7-35 days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Large Excavator Mounted Sheet Pile And Pull Feature Fast Moving Technology For Fast Working Project
Vibration Frequency 3300 Rpm Operation Pressure 32 Mpa
Hammer Weight 3150 Kg Arm Weight 820 Kg
Max.Pile Length 18 M Centrifugal Force 535 Kn
Excavator 47~55 Ton HS Code 8430100000
Material Steel, Core Materials Are All Imported Type Hydraulic Vibrating Hammer
Color Blue/Yellow, Customized Color Available Condition New And Used Both Available
High Light

18 Meter Excavator Vibro Hammer


Pulling Excavator Mounted Pile Driver


Sheet Piling Pulling Vibro Hammer

Leave a Message
Product Description

535KN Vibro hammer for 18 meter sheet piling and pulling work

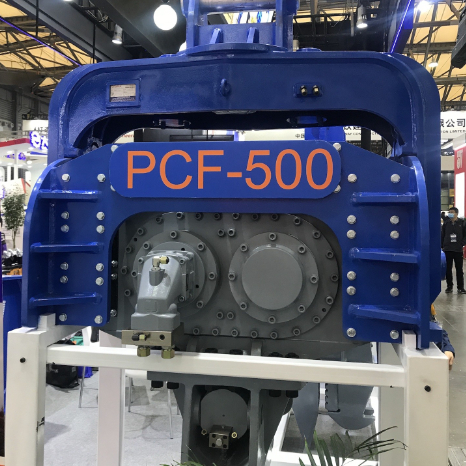

This series of machines are very popular with customers. The structure of the box body is consistant with that of the mainstream Taiwan hammer. The spare parts are interchangable. The box bearing is easy to maintain. The fabricated box structure has higher requirements for material strength, welding process and machine acccuracy. We have strict controll in all aspects of manufacturing to ensure stable quality. We also have successfully manufactured the largest model pcf-500 which fitted with CAT-365.


Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice



Technical Parameter


Item Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 21
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator T 27~30 33~38 40~45 47~55 55~70




About Us


YeKun Construction Machinery is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.


After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.


The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.


Sheet Piling Pulling Excavator Mounted Pile Driver 18 Meter 535KN 0


Sheet Piling Pulling Excavator Mounted Pile Driver 18 Meter 535KN 1




Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.


Q: What is the MOQ ?

A: One set is available.


Q: What's the payment method ?

A: We accept L/C, T/T and D/P payment.


Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.


Q: Can I have our LOGO on the machine ?

A: Of course you can.


Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".


Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
