Universal Flexible Mounted 15m Sheet Piling Easy Installation
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||Excavator Mounted Pile Driver||Feature||Easy To Install And Possible To Drive Any Pile|
|Vibration Frequency||3200rpm||Operation Pressure||32Mpa|
|Arm Weight||750kg||Max.Pile Length||15m|
|Hammer Weight||2600kg||Excavator||40~45 Ton|
|Centrifugal Force||455Kn||Color||Blue/Yellow, Customized Color Available|
|Type||New And Used Both Available||Material||Steel, Core Materials Are All Imported|
|HS Code||8430100000||Inner Parts||Imported From American And European Countries|
sheath flexible mounted pile driver,
universal hyundai excavator vibro driver,
15m hyundai excavator vibro driver

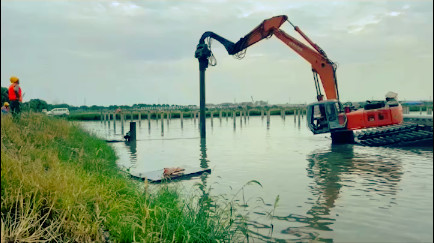

Vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.
- Pile driving steel sheet pile, cement pile, steel rail pile, iron plate, H steel
- Quick converting operation; Applied to various working environments.
- Compared to other systems, less force required for pile pulling
- Not damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
- Not damage the building even often work near it.
- Adopted Rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short；It is helpful to overcome environmental problems.
- According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
- Hydraulic motor has small volume and light weight, but it can output high power and high speed.
- Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.
|Vibration Frequency (rpm)||2500||2800||3200||3200||3200||3200||3200|
|Operation Pressure (Mpa)||30||32||32||32||32||32||32|
|Centrifugal Force (KN)||265||335||350||372||435||455||485|
|Max.Pile Length (m)||10||12||12||12||15||15||18|
|Arm Weight (kg)||500||500||670||670||670||750||750|
|Hammer Weight (kg)||1700||1900||2100||2300||2400||2600||2700|
Shanghai Ye Kun Construction Machinery Co., Ltd. is one specialized is engaged in the vibration sinking pile drawing machine equipment production, sale and service of technology-oriented enterprises, products mainly emerging a high-speed hydraulic pile drawing machine and peripheral accessories, equipment widely used in all kinds of foundation engineering construction.
After a short period of development, the company won the recognition of customers, and the annual sales growth doubled. Marketing the country with the VIBRA brand and export it. The company′s production of mini hydraulic pile driver, vibration hammer and other products quality has reached the advanced level of the industry.
The company has a young and enterprising team cooperation, in order to respect the customer value as self value, to become the most reliable, the most comprehensive, the most professional vibration pile machine equipment and service suppliers and make unremitting efforts.
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment. L/C will be accept for the order above USD 35,000.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
