Yellow CAT 320 Hydraulic Pile Driving Machine Excavator Mounted

Place of Origin SHANGHAI
Brand Name VIBRA
Model Number FV-280
Minimum Order Quantity 1 set
Price 20000 to 30000 USD
Packaging Details 5.09 CBM
Delivery Time 15-35 days
Payment Terms T/T, D/P
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Suitable In All Brand Of Excavator Feature Blue Color Excavator Mounted
Vibration Frequency 3200 Rpm Operational Pressure 32 Mpa
Arm Weight 500 Kg Hammer Weight 1900 Kg
Centrifugal Force 335 KN Excavator 20-30 T
Max Pile Length 12 M
High Light

CAT 320 Hydraulic Pile Driving Machine

,

Excavator Mounted Hydraulic Pile Driving Machine

,

Yellow Hydraulic Pile Driving Machine

Leave a Message
Product Description

CAT 320 Excavator Mounted Pile Driving Machine



Description



Our items have greater limit of piling than those of different organizations. Our pile drivers can work with an assortment of pile, square pile or round pile or other state of steel pile, regardless of dainty walled round substantial piles or thick-walled ones. FV arrangement hydraulic mounted pile driver depends on the innovation of the first pressure driven pile driver. The upgraded plan and improved outcomes can apply a solid vibration power under exceptionally severe topographical conditions, and have enduring dependability.



Features

  • Driving and pulling cement pile, steel sheet pile, iron plate, steel rail pile, H steel
  • Applicable to different working environments.
  • Less force required for pile pulling in compare to other systems
  • Ensure no damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
  • Attached rubber sheath to reduce noise and vibration, the operation is quiet and the working period is short
  • According to the placement direction of sheet pile and site conditions, the sheet pile can be clamped or lowered by positive and negative rotation of 180 °. The vibration frequency can be adjusted by two levels, and the two-level double pumps are combined to greatly increase the excitation force.
  • Hydraulic motor has small volume and light weight, but it can output high power and high speed.
  • It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.

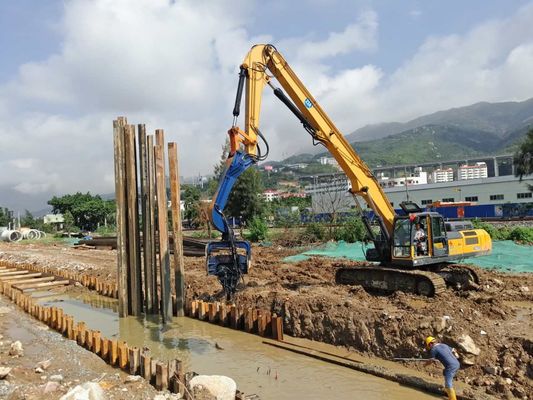

Yellow CAT 320 Hydraulic Pile Driving Machine Excavator Mounted 0



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile (m) 10 12 12 12 15 15 18
Arm (kg) 500 500 670 670 670 750 750
Hammer (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



About Us



Shanghai yekun Machinery Co., Ltd was founded in 2009, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Company has latest high speed hydraulic vibrating pile driver and its components as the main products. All the products vastly apply for infrastructure & construction industries.



We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver lead the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we actively cooperated with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.



Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.



Yellow CAT 320 Hydraulic Pile Driving Machine Excavator Mounted 1
