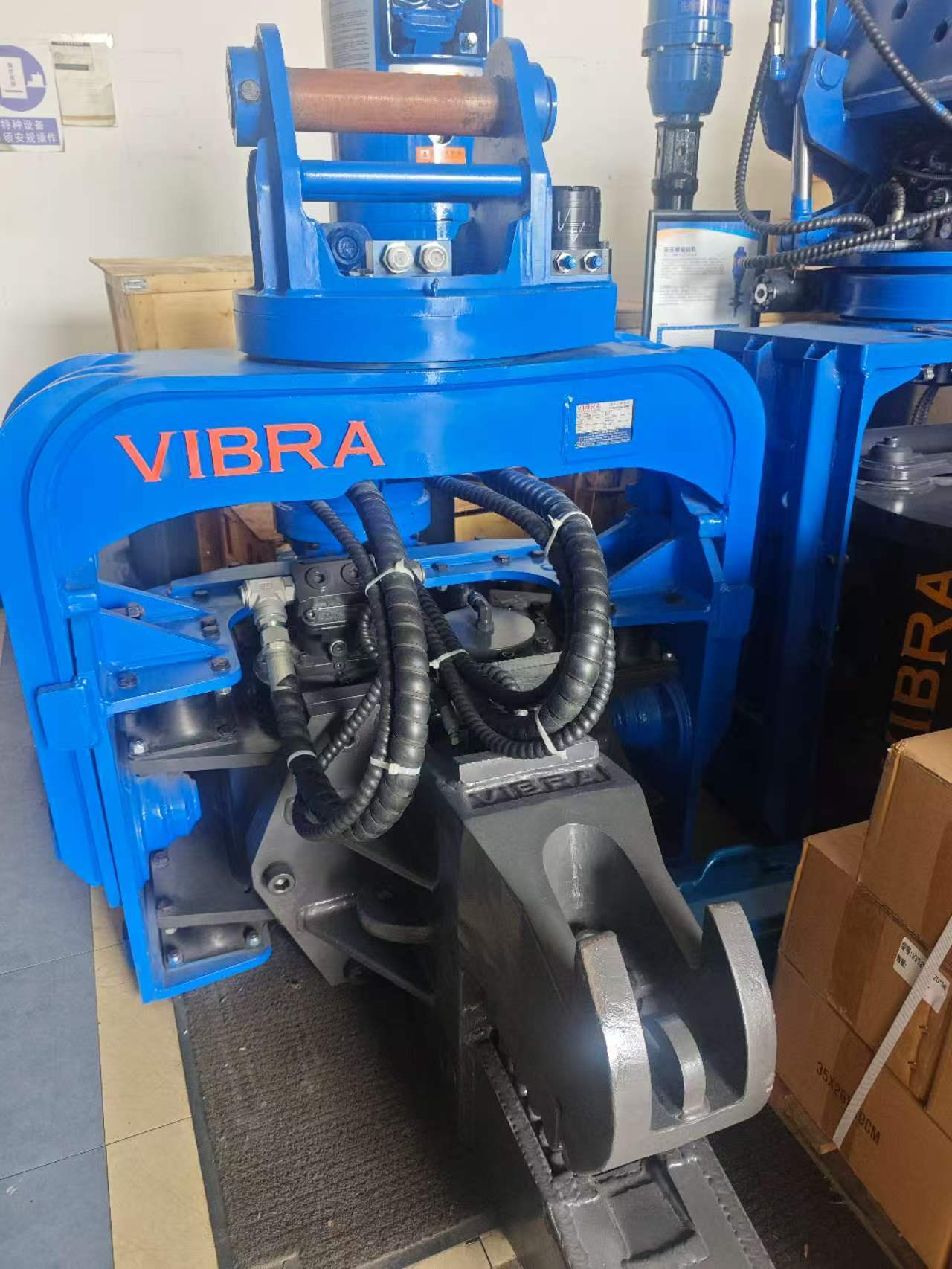

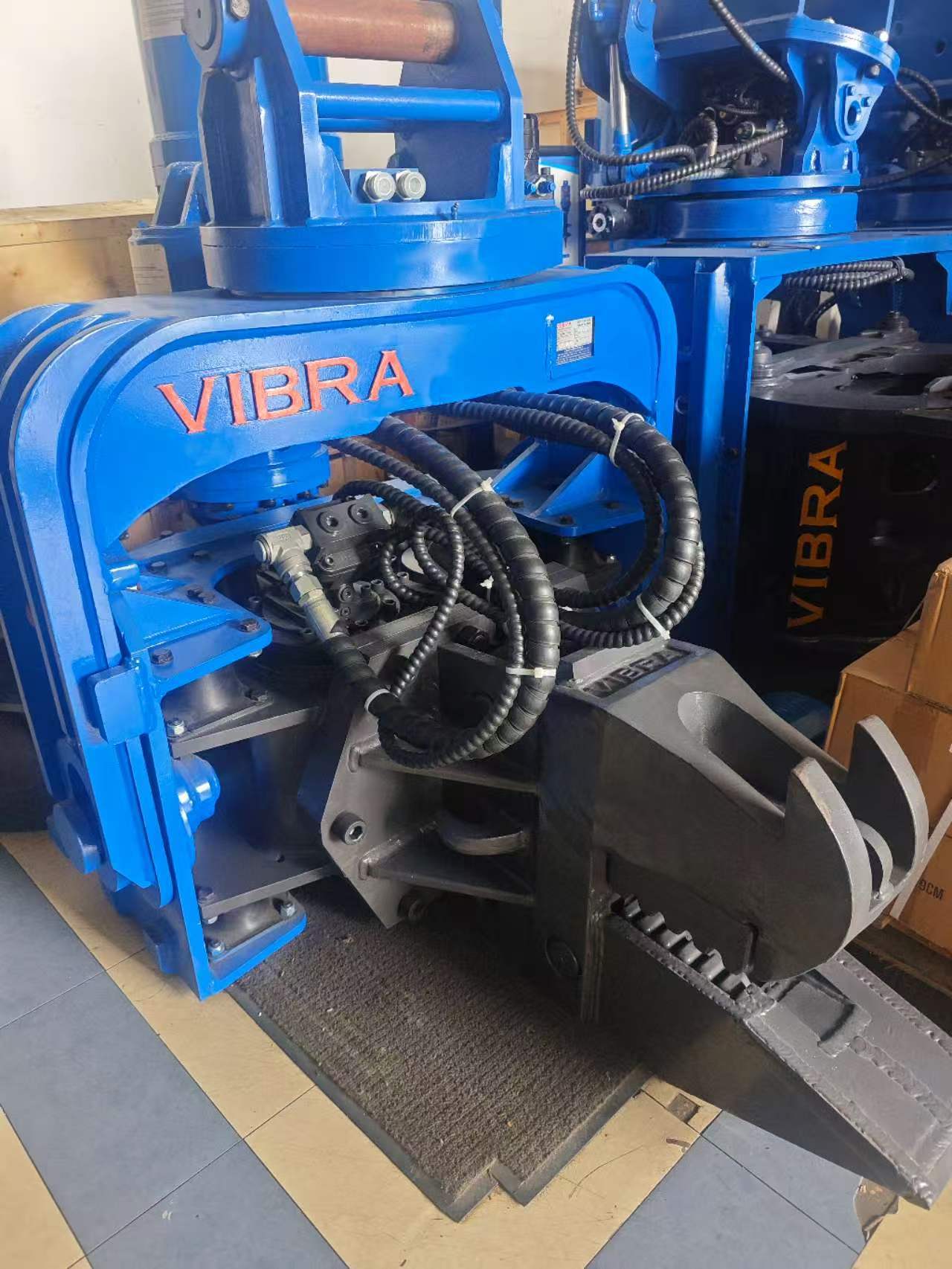

FV-280R High Frequency Vibration Output Pile Driver With Full Slewing Mechanism Assembly

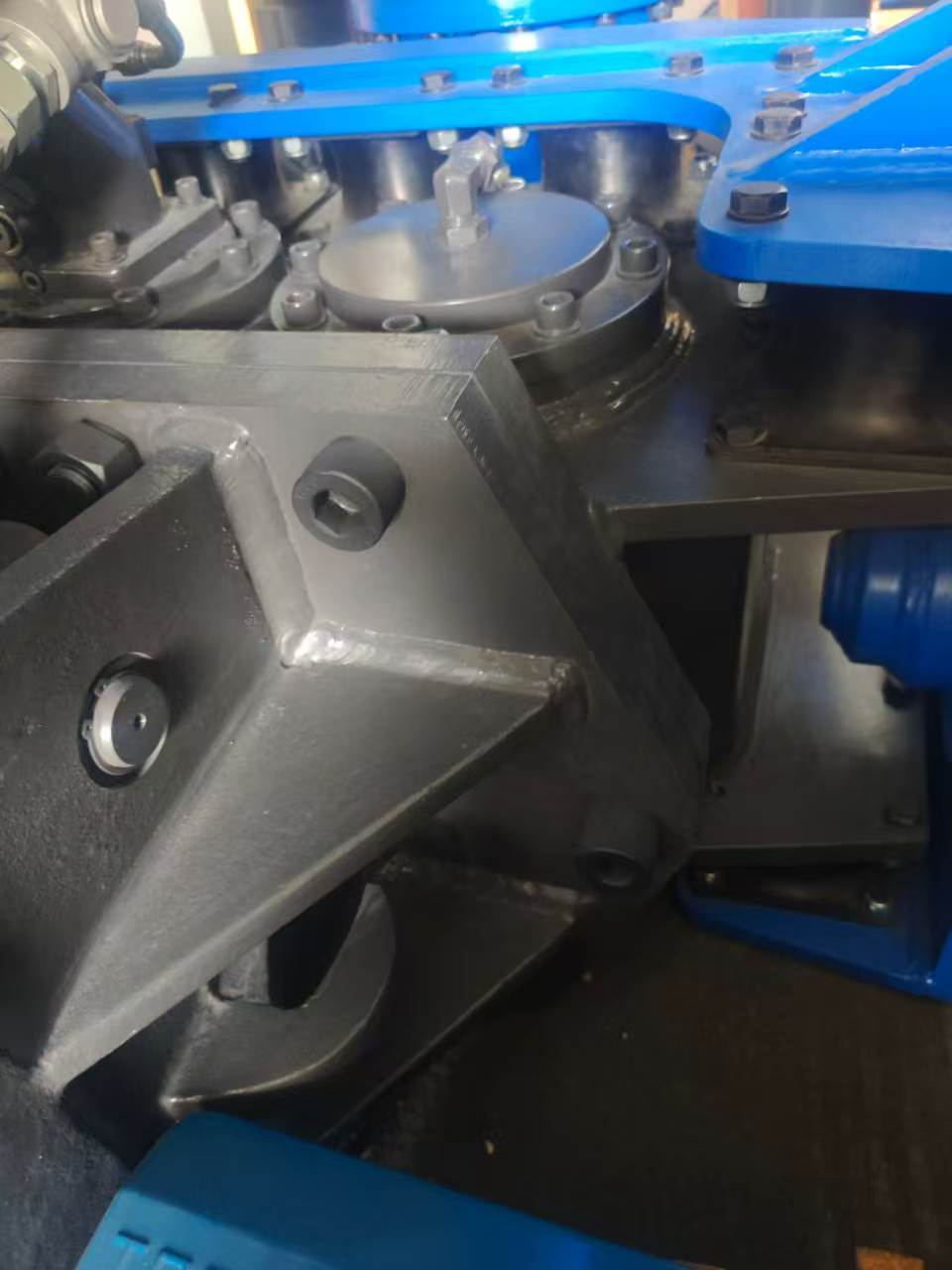

The FV-280R is equipped with a full slewing mechanism assembly China engineers have perfected for durability. Unlike standard clamps, our unit features a precision slewing mechanism that allows for High Quality full 360 degree continuous rotation. This ensures the operator can position piles with extreme accuracy without the hassle of twisting hydraulic hoses. The rotation is smooth and powerful, capable of handling axial pulling forces up to 90 tons permanently without play or gap, ensuring long-term structural integrity.

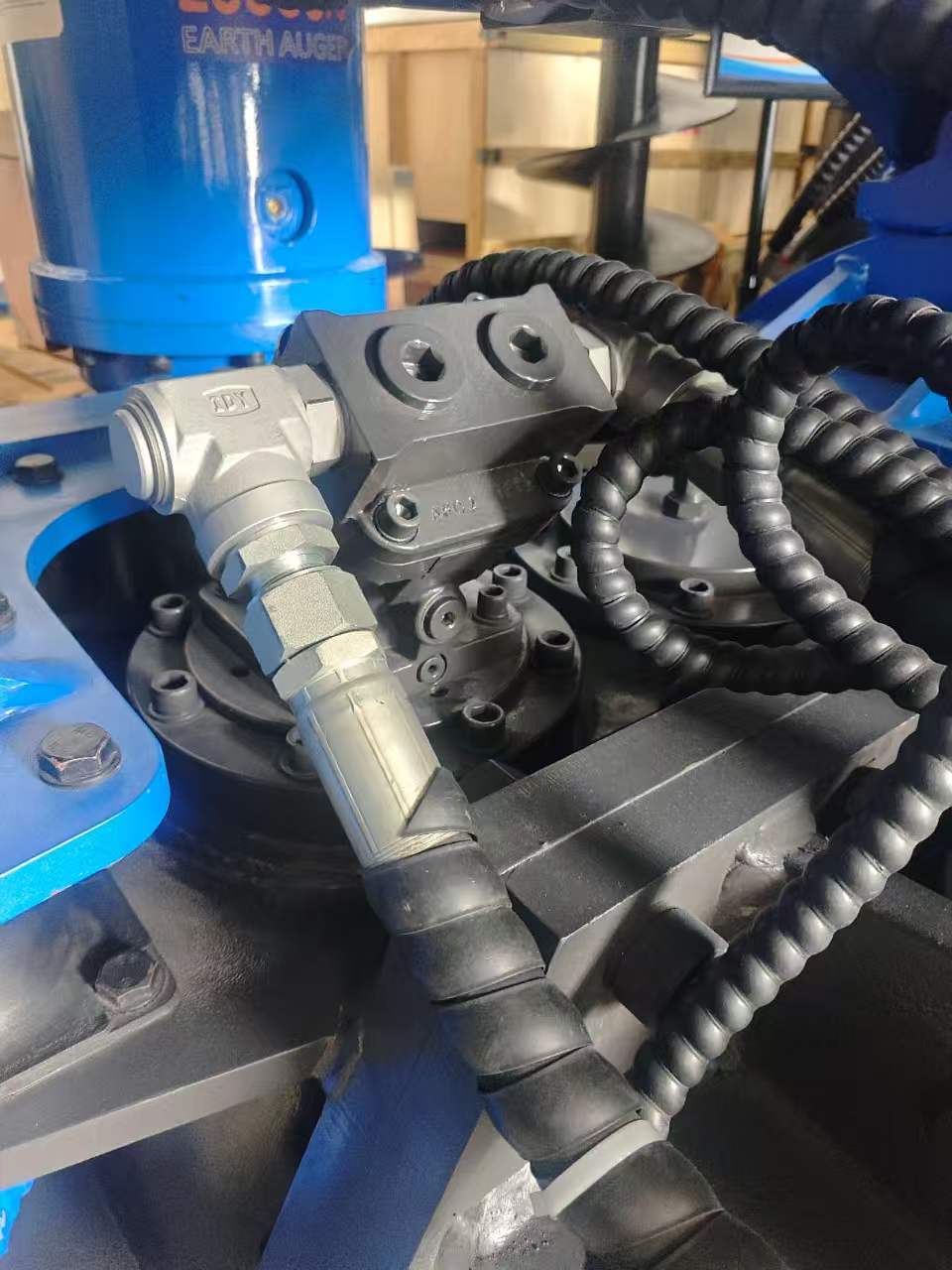

At the heart of the FV-280R is a High Quality High-flow merging valve unit. This component is critical for managing the machine's substantial hydraulic requirements (176.4 L/min). By efficiently merging flow, this valve unit ensures consistent power delivery to the vibration motor. It is designed to withstand high pressure (up to 32 MPa operating pressure) and prevents pressure drops during intense operation, making it ideal for the variable power sources often found on construction sites in developing regions.

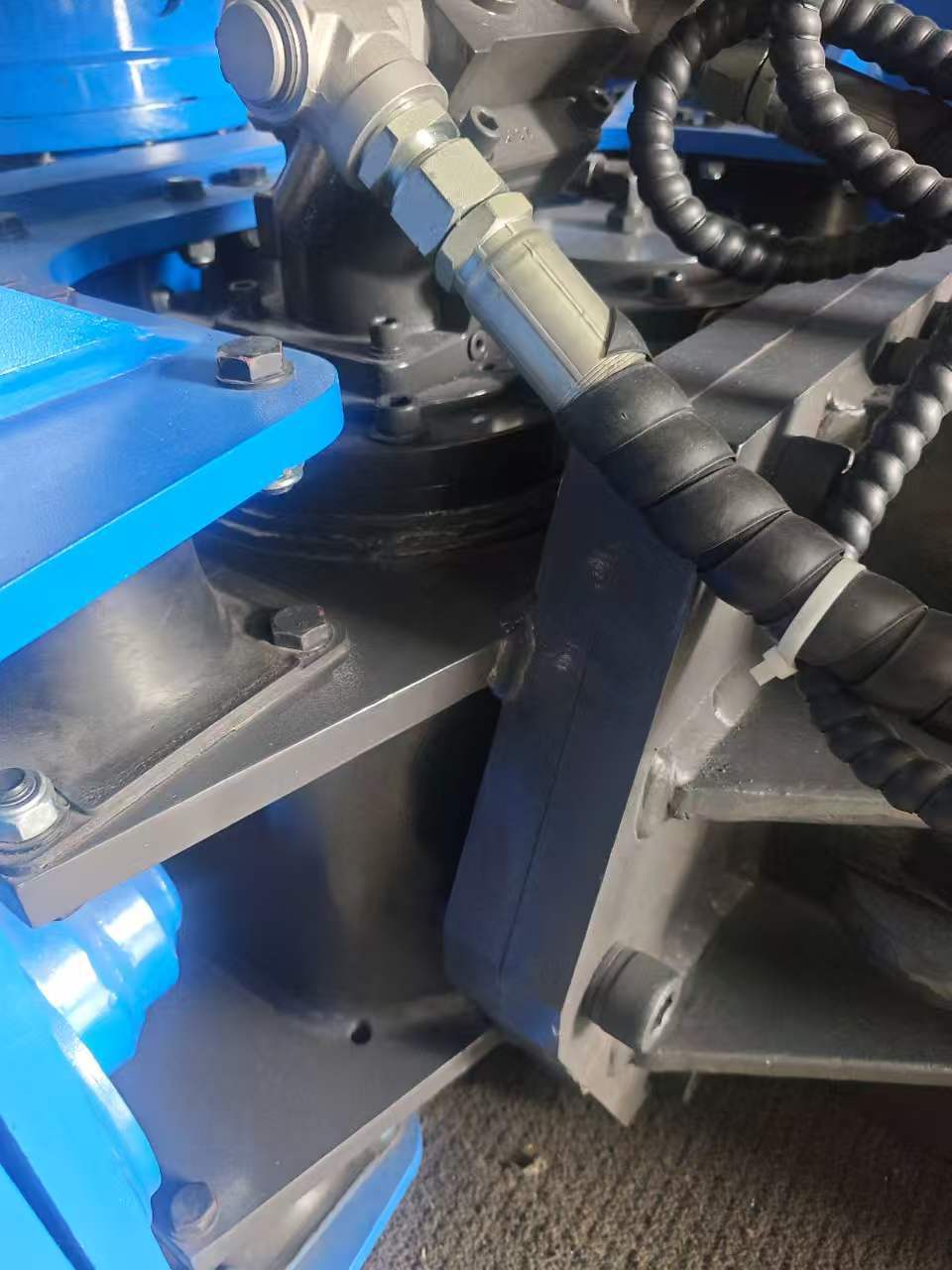

We understand that downtime is expensive. Therefore, the FV-280R features a low maintenance cost design Made In China that focuses on longevity. A key innovation is the high-pressure rotating joint (resistant up to 40 MPa) which allows the vibration oil pipes and hanger to move in sync. This "follow-up" design significantly extends the service life of the hydraulic hoses by eliminating friction and stress, a common headache point in older models.

Delivering high frequency vibration output Made In China technology, the FV-280R operates at 2800 rpm. With an eccentric moment of 4.3 kgm and a centrifugal force of 335 kN, it can drive piles up to 12 meters in length with ease. The high-frequency vibration reduces soil friction, allowing for faster penetration and extraction, thereby increasing daily work output.
