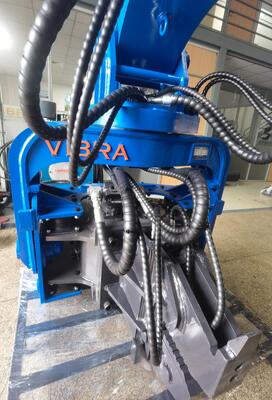

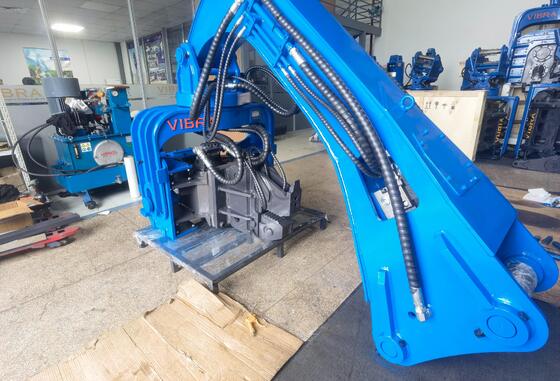

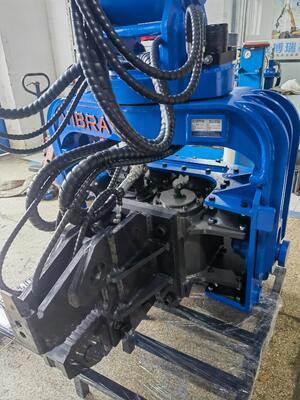

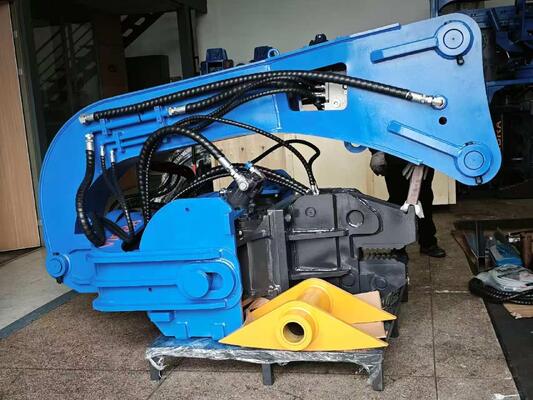

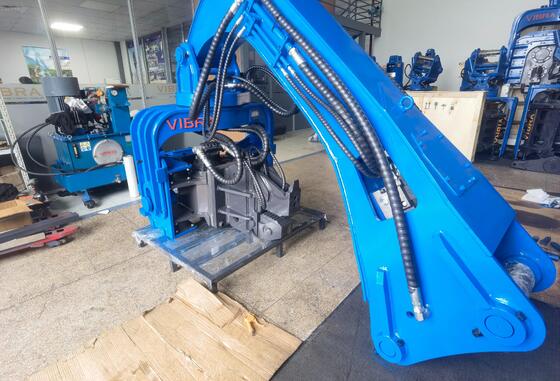

High-Flow Merging Valve Unit & High Impact Energy Pile Driver – FV-250R 360° Rotation

The FV-250R 360 Degree Pile Driver is a high-performance hydraulic vibratory attachment engineered to transform standard 20–25 ton excavators into versatile piling machines. As a trusted Exporters 360 Degree rotation pile driver from China, we deliver equipment that meets the rigorous demands of infrastructure construction across Southeast Asia, India, and Russia.

This model is a specialized 360-degree rotation pile driver designed for high-rise building foundations, bridge construction, and port pier development. It can drive and extract various pile types including steel sheet piles, steel pipe piles, and precast concrete piles, providing stable foundation support for large-scale construction projects.

The FV-250R integrates three critical capabilities – a full slewing mechanism assembly, a High-flow merging valve unit, and exceptional high impact energy per blow – making it the ideal solution for contractors who demand precision, power, and efficiency on every job site.

The FV-250R features a precision-engineered full slewing mechanism assembly that delivers smooth, continuous 360-degree rotation without any dead angles. This full slewing mechanism assembly Suppliers China-manufactured component is the heart of the machine’s exceptional maneuverability.

Key features of the full slewing mechanism include:

• Precision rotary support – engineered for silky smooth rotation with an axial pulling force capacity of up to 90 tons
• Permanent zero backlash – the precision-machined slewing ring maintains tight tolerances throughout its service life, eliminating play that affects positioning accuracy
• No hose twisting – the innovative rotary joint design allows vibration hoses to move with the hanger, eliminating the common problem of friction burst tubes
• Superior durability – high-quality materials and precision manufacturing ensure long-term reliability even in demanding job site conditions

This full slewing mechanism allows operators to position piles with pinpoint accuracy without repositioning the excavator, dramatically improving productivity on congested construction sites. The smooth rotation capability is particularly valuable for projects with limited working space or when working adjacent to existing structures.

The FV-250R is equipped with a High-flow merging valve unit that optimizes hydraulic power delivery for maximum efficiency. This advanced valve system, supplied by leading High-flow merging valve unit Suppliers China, provides the precise hydraulic flow control needed for demanding piling operations.

Key advantages of the high-flow merging valve unit:

• High pressure rating – withstands up to 40 MPa operating pressure with a 12-month warranty
• Large flow capacity – handles 176.4 L/min operating flow, delivering consistent power for demanding piling tasks
• Efficient power transmission – ensures optimal energy transfer from the excavator’s hydraulic system to the vibratory mechanism
• Improved hose life – the innovative rotary joint design allows vibration hoses to move with the hanger, extending the service life of hydraulic hoses

The high-flow merging valve unit ensures that hydraulic power is delivered efficiently and reliably, maintaining consistent performance throughout the piling operation. This translates to faster penetration rates and higher productivity on every job.

The FV-250R delivers exceptional high impact energy per blow China-engineered performance through its high-frequency vibratory mechanism. The hydraulic motor drives eccentric axes to rotate at high speed in opposite directions. Horizontal forces cancel each other without vibration, while vertical forces add up to create powerful vertical high-frequency vibration.

Performance specifications:

This high impact energy per blow capability rapidly liquefies surrounding soil, reducing friction by up to 70–80% and enabling fast penetration through dense clay, gravel, and compacted fill. The result is faster cycle times, reduced fuel consumption, and improved overall job site efficiency.

Operators will appreciate the high frequency vibration output that provides consistent, powerful performance even in challenging geological conditions. The combination of high impact energy and precise control makes the FV-250R particularly effective for foundation work in urban environments where noise and vibration must be carefully managed.

The FV-250R is engineered for high efficiency drilling performance Manufacturers China excellence, delivering outstanding productivity across a wide range of applications.

Performance advantages include:

• Complete process capability – one machine handles clamping, positioning, driving, and extraction without auxiliary equipment
• Fast cycle times – high-frequency vibration reduces friction for rapid penetration and extraction
• Versatile pile handling – compatible with steel sheet piles, steel pipe piles, and precast concrete piles
• Reduced fuel consumption – optimized hydraulic system minimizes energy waste
• Minimal environmental impact – low noise and vibration levels suitable for urban construction

The FV-250R’s high efficiency drilling performance makes it an ideal choice for contractors working on projects with demanding schedules and challenging ground conditions. Whether you are driving piles for high-rise foundations, bridge abutments, or port infrastructure, this machine delivers the performance you need to stay on schedule.

Note: Specifications are for reference only. Products are constantly updated, and new product specifications may vary.

Q1: What makes the FV-250R different from standard pile drivers?
The FV-250R features a precision full slewing mechanism that allows continuous 360-degree rotation without hose twisting, enabling precise pile placement without repositioning the excavator.

Q2: What excavator size is required for the FV-250R?
The FV-250R is designed for 20–25 ton standard excavators and mounts with minimal modification.

Q3: What types of piles can the FV-250R handle?
The FV-250R handles steel sheet piles, steel pipe piles, and precast concrete piles through interchangeable clamp interfaces.

Q4: What is the maximum pile length the FV-250R can drive?
The FV-250R can drive piles up to 10 meters in length.

Q5: How does the high-flow merging valve unit benefit operation?
The high-flow merging valve unit provides stable, high-pressure flow (up to 40 MPa) to ensure consistent vibratory performance and prolongs hydraulic hose life through the innovative rotary joint design.

Q6: What is the warranty on the rotary joint?
The high-pressure, large-flow rotary joint comes with a 12-month warranty.
