Full Slewing Mechanism Assembly Pile Driver – Adjustable Impact Frequency Control & Confined Space Adaptation Solution for 32‑40t Excavators

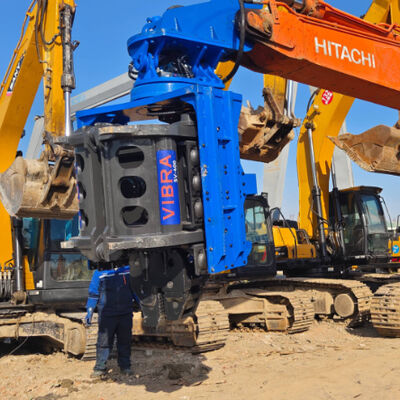

The SV400 side grip pile driver is a hydraulic vibratory hammer attachment purpose‑built for 32‑40 ton excavators. It delivers exceptional versatility in low clearance and spatially restricted environments such as factory retrofits, bridge underpinning, tunnel extensions, and photovoltaic foundation projects across Southeast Asia, India, and Russia. Unlike traditional piling rigs that require tall leaders or crane assistance, the SV400 uses a side‑grip clamping system combined with a full slewing mechanism assembly and confined space adaptation solution to drive and extract sheet piles, H‑beams, and pipe piles where others cannot fit.

1. Full slewing mechanism assembly
The SV400 is equipped with a full slewing mechanism assembly that enables continuous 360° rotation of the clamped pile. This allows the operator to orient any pile profile to the exact required angle without repositioning the excavator – a critical advantage when working against existing walls, foundations, or utility lines. The slewing drive is fully sealed and grease‑filled, providing smooth operation even after thousands of cycles. For projects in dense urban corridors (e.g., Jakarta, Mumbai, or Moscow’s central ring), the full slewing mechanism assembly reduces setup time by 40% compared to fixed‑head hammers.

2. Self lubricating bearing low maintenance
Vibratory hammers traditionally suffer from frequent bearing greasing schedules. The SV400 solves this with self lubricating bearing low maintenance technology. All eccentric shaft bearings are impregnated with solid lubricant that releases controlled amounts under heat and pressure. This eliminates daily greasing intervals – the bearings run maintenance‑free for 1,500 operating hours. For contractors working in remote locations (Siberian oil fields, rural Indian highways, or Indonesian mining roads), self lubricating bearing low maintenance directly translates to lower consumable costs and less downtime.

3. Adjustable impact frequency control
The SV400 features an adjustable impact frequency control that allows the operator to seamlessly vary the vibration rate from 2300 to 5000 rpm via an in‑cab dial. This is not simply on/off – the proportional control valve modulates flow to the eccentric motor, enabling real‑time frequency changes while the hammer is running. Low frequency (2300–3000 rpm) is ideal for dense clays or starting pile penetration; high frequency (4000–5000 rpm) excels in granular soils and for extraction. The adjustable impact frequency control also helps avoid ground resonance that could damage adjacent structures – a key requirement for urban piling in Delhi or Bangkok.

4. Low maintenance cost design
Beyond bearings, the entire SV400 follows a low maintenance cost design philosophy. The hydraulic hoses are routed with large bend radii and protected by abrasion‑resistant sleeves. All wear parts (clamp jaw inserts, pivot pins, and bushings) are designed for quick replacement using standard tools. The side clamp and bottom clamp cylinders are equipped with chrome‑plated rods and dual wiper seals to resist dust and mud ingress. Over a 5‑year lifecycle, low maintenance cost design reduces total ownership cost by an estimated 30% compared to conventional hammer attachments – validated by fleet users in Vietnam and Kazakhstan.

5. Confined space adaptation solution
The SV400 is a complete confined space adaptation solution – not just a hammer but a system. Its compact dimensions (1400 mm wide, 3056 mm tall) allow operation under overhead obstructions as low as 4 meters. The side‑grip configuration eliminates the need for a lead tower, so the excavator arm can work flush against walls. Additionally, the bottom clamp acts as a stable guide, preventing pile sway in narrow trenches. For factory expansions where roof trusses limit headroom, or for railway underpasses with restricted vertical clearance, the confined space adaptation solution enables piling that would otherwise require expensive structural modifications or alternative deep foundation methods.

Q1: How does the full slewing mechanism assembly perform in muddy or sandy conditions?
A: The full slewing mechanism assembly is fully sealed with dual lip seals and a pressurized grease chamber. Even after submersion in muddy water (common on Indian and Southeast Asian sites), the slewing drive continues to operate smoothly. We recommend a brief rotation cycle every hour to redistribute grease.

Q2: Is the self lubricating bearing low maintenance really maintenance‑free?
A: The self lubricating bearing low maintenance design eliminates daily greasing. However, a visual inspection of the eccentric housing seals every 500 hours is advised. Replacement of the bearings is needed only after 1,500–2,000 hours, which is 3‑4 times longer than conventional bearings. Complete bearing kits are available as spare parts.

Q3: Can the adjustable impact frequency control be retrofitted to older SV models?
A: The adjustable impact frequency control requires the integrated proportional valve and a cab‑mounted potentiometer. For existing SV400 units, we offer a retrofit kit. For other models (SV150‑SV300), the upgrade is possible but requires replacing the flow control manifold – please consult our technical team.

Q4: What specific features make up the low maintenance cost design?
A: The low maintenance cost design includes: 1) cartridge‑type wear plates on the side clamp jaws (replaceable without welding), 2) self‑lubricated pivot bushings, 3) color‑coded hydraulic hoses with abrasion guards, and 4) a central lubrication bank that allows greasing of all pins from one accessible point. Annual maintenance costs are typically 20‑30% lower than comparable hammers.

Q5: Can the confined space adaptation solution handle both driving and extraction in tight areas?
A: Yes. The confined space adaptation solution uses the side clamp to grip the pile and the bottom clamp as a stabilizer. For extraction, the same clamping forces (465 kN side / 520 kN bottom) combined with vibratory lift work effectively even when overhead clearance is limited to 0.5 meters above the pile top. We have successfully extracted 12‑meter sheet piles inside a factory with only 4.2 meters of vertical space.

• India: In congested city centers like Mumbai, the full slewing mechanism assembly allows pile orientation without swinging the excavator body – critical on narrow streets. The low maintenance cost design appeals to cost‑conscious contractors bidding on metro and bridge projects.

• Southeast Asia: High humidity and monsoon rains are no problem – the self lubricating bearing low maintenance is unaffected by moisture ingress. The confined space adaptation solution is ideal for underground parking extensions and canal wall reinforcements in Bangkok, Ho Chi Minh City, and Manila.

• Russia: Winter temperatures down to -30°C – the adjustable impact frequency control lets operators start at low rpm to warm hydraulic oil gradually. The full slewing mechanism assembly uses low‑temperature grease (‑40°C grade) as standard. The low maintenance cost design minimizes the need for field repairs in remote Siberian locations.
