FV-330R High-Performance Pile Driver | Ideal for Medium-Heavy Projects

Introduction

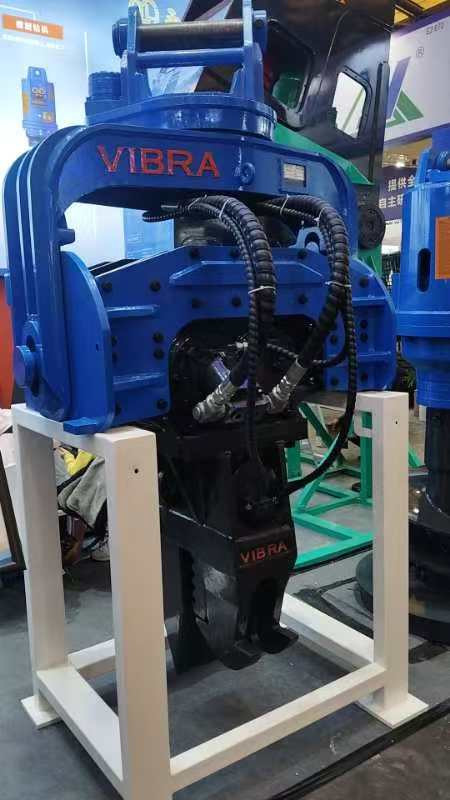

The FV-330R 360-Degree Pile Driver represents the ideal balance of power, precision, and rotational freedom for medium-heavy foundation construction. Designed specifically for 33-38 ton excavators, this advanced machine delivers the performance needed for demanding projects while maintaining the unrestricted 360-degree continuous rotation that sets our R-Series apart from conventional pile drivers.

Medium-sized excavators are the workhorses of the construction industry, handling everything from bridge foundations to industrial projects. The FV-330R transforms these versatile machines into high-performance piling rigs that can rotate continuously without the hose twisting and binding that plagues traditional designs. This means operators can focus on precise pile placement rather than constantly monitoring and adjusting hose position.

• No Hose Tangling: Unlike conventional pile drivers that restrict operator movement and require constant "untwisting," the FV-330R allows unlimited rotation in either direction without hose stress.

• Precision Rotary Support: Theprecision rotary support system ensures silky-smooth rotation with permanent zero gap, maintaining accuracy even after extended use in demanding conditions.

• 90 Ton Axial Pull Capacity: The heavy-duty rotary support handles substantial axial forces during challenging extraction operations, matching the power of the hammer.

• 40 MPa Pressure Resistance: Handles the full hydraulic pressure of the host excavator without leakage or failure, even under continuous operation.

• High Flow Capacity: Optimized for the FV-330R's 252 L/min flow requirement, ensuring full power delivery during continuous rotation.

• 12-Month Warranty: Built to the same rigorous standards as our entire R-Series, with comprehensive warranty coverage.

• Synchronized Hose Movement: Vibration hoses move with the hanger assembly, eliminating friction points that cause premature wear on conventional machines.

• Extended Hose Life: By removing twisting and rubbing forces, hose service life is dramatically extended, reducing operating costs.

• Smoother Operation: Operators can focus on precise pile placement without constantly monitoring hose position, improving both productivity and safety.

• Centrifugal Force: 372 kN of exciting force handles sheet piles, pipe piles, H-beams, and concrete piles efficiently in varied soil conditions.

• Vibration Frequency: 2800 rpm provides optimal vibration for soil liquefaction and friction reduction across a wide range of geological conditions.

• Eccentric Moment: 5.6 kgm delivers balanced, powerful vibration transmission for efficient penetration.

• Maximum Pile Length: Handles piles up to 12 meters in length, suitable for most medium to heavy foundation applications.

• Total Weight: 2300 kg hammer weight plus 670 kg arm weight – perfectly matched to the carrying capacity of medium excavators.

• Power-to-Weight Ratio: Delivers exceptional force relative to machine weight, maximizing fuel efficiency and cycle times.

• Balanced Design: Engineered to work in harmony with the host excavator's hydraulics and structure.

• Hydraulic System: Optimized for 32 MPa operating pressure with 252 L/min flow capacity, featuring large-flow combining valve technology.

• Control System: Integrated valve design with imported control valves for precise, independent function control.

• Structural Integrity: Reinforced frame and components engineered for the higher forces of medium-heavy applications.

• Core Components: High-quality hydraulic motors and German bearings ensure long-term reliability.

• Full Rotational Freedom: 360° continuous rotation without hose restrictions – a significant productivity advantage.

• Powerful Performance: 372 kN centrifugal force handles demanding applications.

• Smoother Operation: Precision rotary support with permanent zero gap.

• Higher Reliability: 40 MPa rotary joint with 12-month warranty.

• Extended Hose Life: Synchronized hose movement reduces wear points.

• Optimized for Medium Excavators: Perfect match for 33-38 ton machines.

• Versatile Application: Suitable for sheet piles, pipe piles, H-beams, and more up to 12m length.

• Easy Installation: Designed for straightforward mounting on standard excavators.

• Operator Friendly: Intuitive controls accessible to operators with basic excavator experience.

• Proven Technology: Based on the successful R-Series platform used worldwide.

The FV-330R 360-Degree Pile Driver is ideally suited for medium to large contractors in Southeast Asia, India, and Russia who need reliable, powerful equipment for a wide range of foundation projects.

• Southeast Asia: Perfect for the region's booming infrastructure development – bridge foundations across river deltas, port expansions in major harbors, and industrial park development. The 360° rotation is invaluable when working in congested urban sites or aligning piles precisely along curved structures. Ideal for contractors in Indonesia, Vietnam, Thailand, Malaysia, and the Philippines handling medium to large projects.

• India: Well-suited for the thousands of medium to large infrastructure projects across India – flyover foundations, metro rail support structures, industrial facility construction, and commercial building developments. The 372 kN force handles the varied soil conditions found across the subcontinent, from soft alluvial soils to denser decomposed rock. The continuous rotation significantly improves productivity on projects with demanding schedules.

• Russia: Engineered to perform reliably across Russia's diverse climate zones and geological conditions. The robust rotary joint and zero-gap support maintain precision even in cold conditions. Ideal for bridge construction across Russia's major rivers, industrial foundation work, and infrastructure development in regional centers. The 90-ton axial pull capacity handles extraction needs common in permafrost regions.

A1: The FV-330R is designed for excavators in the 33-38 ton class. The mounting system can be customized to fit various brands including Cat, Komatsu, Hitachi, Kobelco,  Hyundai, and others.

A2: It handles steel sheet piles (including Larsen profile), pipe piles up to moderate diameters, H-beams, concrete piles, and wood piles up to 12 meters in length.

A3: Yes. The FV-330R allows unlimited rotation in either direction without hose twisting or binding, unlike conventional pile drivers that restrict operator movement.

A4: During extraction, significant upward force is required to remove deeply embedded piles. The 90-ton capacity of the rotary support ensures the system can handle the full extraction force of the hammer without risk of damage.

A5: Medium excavators are often used on projects with complex pile layouts – curved walls, angled installations, or sites requiring precise alignment. The ability to rotate continuously allows operators to position piles perfectly from any angle without constantly repositioning the excavator.

A6: Yes. The 372 kN vibration force works in both directions for efficient driving and extraction of appropriate-sized piles.

A7: Vibration hoses are mounted to move with the hanger assembly as the hammer rotates. This eliminates the friction points where conventional hoses rub against machine components, dramatically extending hose life.

A8: Routine inspection of the rotary joint seals, lubrication of the rotary support according to schedule, checking hydraulic connections, and inspecting clamp pads for wear. The system is designed for minimal maintenance with easy access to service points.

A9: The FV-330R offers higher centrifugal force (372 kN vs 265 kN) and increased flow requirements (252 L/min vs 176.4 L/min), making it suitable for larger excavators and heavier applications. Both feature the same 360° rotation technology.

A10: No. The FV-330R is designed for straightforward installation on standard 33-38 ton excavators with minimal modification. Our team can provide mounting brackets customized for your specific machine model.

A11: The high-pressure rotary joint carries a 12-month warranty against defects in materials and workmanship.

A12: Yes. With 372 kN of centrifugal force and 2800 rpm frequency, the FV-330R handles a wide range of soil conditions from soft alluvial deposits to dense compacted soils and decomposed rock.
