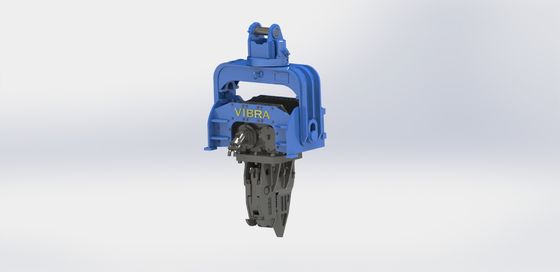

FV-150R 360-Degree Pile Driver | 172 kN Force | 12-17 Ton Excavator

The FV-150R 360-Degree Pile Driver brings advanced rotary piling technology to the compact equipment class. Designed specifically for 12-17 ton excavators, this innovative machine combines powerful vibration performance with unrestricted 360-degree continuous rotation – a feature typically found only on larger, more expensive pile drivers.

Traditional compact pile drivers force operators to work within the limits of hose twisting and binding, constantly stopping to "untwist" after partial rotations. The FV-150R eliminates this constraint entirely, allowing smooth, continuous rotation in either direction without hose stress or damage. This makes it the ideal choice for contractors working in confined urban sites, residential construction, and small to medium infrastructure projects where maneuverability is essential.

The FV-150R brings full rotational freedom to the compact class:

• No Hose Tangling: Unlike conventional small pile drivers that restrict operator movement, the FV-150R allows unlimited rotation without hose stress or binding.

• Precision Rotary Support: The精密回转支撑 system ensures silky-smooth rotation with permanent zero gap, maintaining accuracy even after extended use in demanding conditions.

• Substantial Axial Pull Capacity: Despite its compact size, the rotary support handles significant axial forces during extraction operations.

At the heart of the rotation system is a specially engineered rotary joint:

• 40 MPa Pressure Resistance: Handles the full hydraulic pressure of the host excavator without leakage or failure.

• Optimized Flow Capacity: Perfectly matched to the FV-150R's 112.5 L/min flow requirement, ensuring full power delivery during continuous rotation.

• 12-Month Warranty: Built to the same rigorous standards as our larger models, with comprehensive warranty coverage.

The FV-150R protects your investment through smart design:

• Synchronized Hose Movement: Vibration hoses move with the hanger assembly, eliminating friction points that cause premature wear on smaller machines.

• Extended Hose Life: By removing twisting and rubbing forces, hose service life is dramatically extended compared to conventional compact pile drivers.

• Smoother Operation: Operators can focus on precise pile placement without constantly monitoring hose position.

Despite its small size, the FV-150R delivers impressive piling power:

• Centrifugal Force: 172 kN of exciting force handles sheet piles, pipe piles, and H-beams efficiently in typical soil conditions.

• Vibration Frequency: 2500 rpm provides optimal vibration for soil liquefaction and friction reduction.

• Eccentric Moment: 2.6 kgm delivers balanced, effective vibration transmission.

• Maximum Pile Length: Handles piles up to 8 meters in length, suitable for most small to medium foundation applications.

The FV-150R is engineered for maximum maneuverability:

• Total Weight: Just 1100 kg hammer weight plus 260 kg arm weight – easily handled by 12-17 ton excavators.

• Compact Dimensions: Ideal for working in tight spaces, residential areas, and sites with access restrictions.

• Easy Transport: Lightweight construction simplifies mobilization between job sites.

The FV-150R maintains the same quality standards as our larger models:

• Hydraulic System: Optimized for 30 MPa operating pressure with 112.5 L/min flow capacity.

• Control System: Integrated valve design with imported control valves for precise, independent function control.

• Structural Integrity: Reinforced frame and components sized appropriately for the compact class.

• Full-Size Features in Compact Package: 360° continuous rotation typically found only on larger machines.

• No Hose Restrictions: Continuous rotation without hose twisting or binding.

• Smoother Operation: Precision rotary support with permanent zero gap.

• Higher Reliability: 40 MPa rotary joint with 12-month warranty.

• Extended Hose Life: Synchronized hose movement reduces wear.

• Powerful Performance: 172 kN centrifugal force for its size class.

• Lightweight & Compact: Easy to transport and maneuver in tight spaces.

• Versatile Application: Suitable for sheet piles, pipe piles, H-beams, and more.

• Easy Installation: Designed for straightforward mounting on 12-17 ton excavators.

• Operator Friendly: Intuitive controls accessible to operators with basic excavator experience.

The FV-150R 360-Degree Pile Driver is ideally suited for small to medium contractors in Southeast Asia, India, and Russia who need compact equipment with large-machine capabilities.

• Southeast Asia: Perfect for residential construction, small commercial projects, and urban renovation work in dense cities. The compact size allows access to narrow job sites where larger machines cannot enter. Ideal for house foundations, small retaining walls, and drainage projects in the Philippines, Vietnam, and Thailand.

• India: Well-suited for the thousands of small to medium construction projects across India's growing towns and cities. The 360° rotation significantly improves productivity on confined urban sites, while the lightweight design reduces transport costs between projects. Perfect for small bridge approaches, culvert installations, and commercial building foundations.

• Russia: Compact size and reliable performance make the FV-150R valuable for smaller projects in regional centers. The robust rotary joint and zero-gap support maintain precision even in variable conditions. Ideal for residential development, small industrial facilities, and infrastructure repairs in towns across Russia.

A1: The FV-150R is designed for excavators in the 12-17 ton class. The mounting system can be customized to fit various brands and models including Kobelco, Hitachi, Cat,Komatsu, and others.

A2: It handles steel sheet piles, pipe piles up to moderate diameters, H-beams, wood piles, and concrete piles up to 8 meters in length.

A3: Yes. The FV-150R allows unlimited rotation in either direction without hose twisting or binding, unlike conventional compact pile drivers that restrict operator movement.

A4: The FV-150R uses the same rotary joint technology as our larger machines, scaled appropriately. It features a 40 MPa rotary joint and precision zero-gap support, just like the bigger models.

A5: In tight spaces, the ability to rotate continuously without repositioning the excavator is even more valuable than on large sites. Operators can align piles precisely from any angle, dramatically improving productivity in confined areas.

A6: Yes. The 172 kN vibration force works in both directions for efficient driving and extraction of appropriate-sized piles.

A7: Compact excavators often work in very tight spaces where hose movement is restricted. The synchronized hose movement eliminates friction points and extends hose life significantly.

A8: Routine inspection of the rotary joint seals, lubrication of the rotary support according to schedule, and checking hydraulic connections. The system is designed for minimal maintenance.

A9: No. Operators with basic excavator experience can quickly learn to operate the FV-150R effectively. The controls are intuitive and the smooth rotation simplifies pile positioning.

A10: The FV-150R is designed for installation on standard 12-17 ton excavators with minimal modification. Your existing fleet machines can be converted for piling work as needed.
