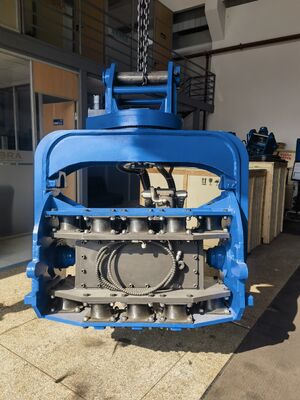

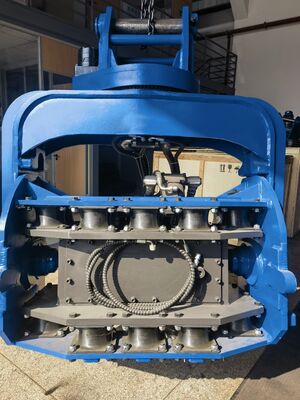

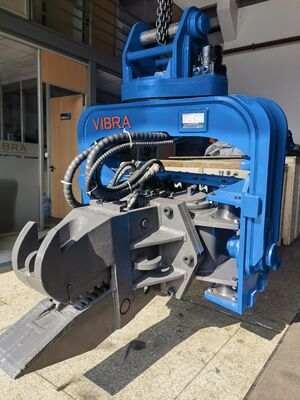

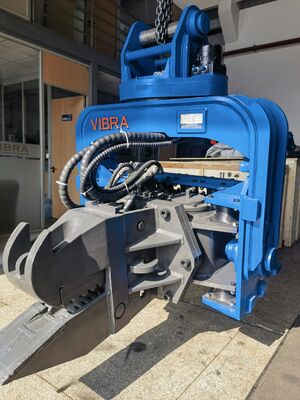

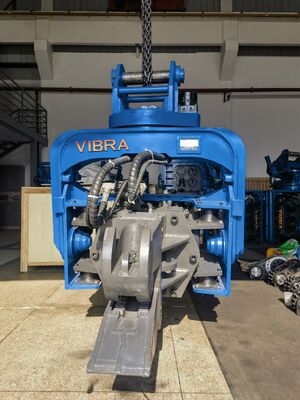

FV-280R High-Flow Pile Driver | 176.4 L/min | Ideal for Sheet Piles

The FV-280R 360-Degree Pile Driver represents a significant advancement in excavator-mounted piling technology, addressing one of the most persistent challenges in foundation construction: hydraulic hose management during continuous rotation. Traditional pile drivers restrict operator movement due to hose twisting and friction, limiting efficiency and creating safety risks. The FV-280R eliminates these limitations entirely.

Designed for excavators in the 23-27 ton class, this innovative machine combines powerful vibration performance with unrestricted 360-degree continuous rotation. Whether you are driving steel sheet piles for a port project, installing pipe piles for bridge foundations, or working on confined urban sites, the FV-280R delivers smooth, uninterrupted operation without the constant concern of hose damage or burst lines.

• Centrifugal Force: 265 kN of exciting force ensures efficient penetration through various soil conditions.

• Vibration Frequency: 2800 rpm provides optimal vibration for soil liquefaction and friction reduction.

• Eccentric Moment: 4.3 kgm delivers balanced, powerful vibration transmission.

• Maximum Pile Length: Handles piles up to 12 meters in length, suitable for most foundation applications.

• Hydraulic System: Optimized for 32 MPa operating pressure with 176.4 L/min flow capacity.

• Control System: Integrated valve design allows independent control of each function.

• Structural Integrity: Reinforced frame and components ensure long-term reliability.

• No Hose Restrictions: Continuous 360° rotation without hose twisting or binding.

• Smoother Operation: Precision rotary support with permanent zero gap eliminates play.

• Higher Reliability: 40 MPa rotary joint with 12-month warranty.

• Extended Hose Life: Synchronized hose movement reduces wear points.

• Powerful Performance: 265 kN centrifugal force handles diverse soil conditions.

• Versatile Application: Suitable for sheet piles, pipe piles, H-beams, and more.

• Easy Installation: Designed for straightforward mounting on 23-27 ton excavators.

• Operator Friendly: Intuitive controls and smooth rotation improve productivity.

The FV-280R 360-Degree Pile Driver is ideally suited for foundation contractors in Southeast Asia, India, and Russia who demand efficiency, reliability, and freedom of movement.

• Southeast Asia: Perfect for urban infrastructure projects in dense cities like Jakarta, Bangkok, and Manila where space is limited and precise positioning is essential. The 360° rotation allows operators to align piles perfectly without constantly repositioning the excavator. Ideal for river embankments, bridge approaches, and port expansion projects.

• India: Well-suited for metro rail construction, flyover foundations, and industrial development across India's rapidly growing cities. The ability to rotate continuously without hose constraints significantly improves productivity on projects with tight deadlines. The 90-ton axial pull capacity handles extraction needs common in urban renewal sites.

• Russia: Engineered to perform reliably in variable climates while the smooth rotation system reduces operator fatigue during long shifts. The robust rotary joint and zero-gap support maintain precision even in cold conditions. Ideal for bridge construction across Russia's vast river systems and industrial foundation work.

Q1: What makes the FV-280R different from standard pile drivers?
A1: The FV-280R features true 360° continuous rotation without hose twisting. A precision rotary joint with 40 MPa capacity and synchronized hose movement eliminates the friction and binding issues common with conventional designs.

Q2: What excavator is compatible with the FV-280R?
A2: The FV-280R is designed for excavators in the 23-27 ton class. The mounting system can be customized to fit various brands and models.

Q3: What types of piles can this machine handle?
A3: It handles steel sheet piles, pipe piles, H-beams, prefabricated piles, and more up to 12 meters in length.

Q4: How does the rotary joint work?
A4: The high-pressure rotary joint allows hydraulic fluid to flow continuously to the hammer while the entire assembly rotates. It withstands up to 40 MPa pressure and carries 90 tons of axial load.

Q5: Does "permanent zero gap" really last?
A5: Yes. The precision rotary support is engineered to maintain zero clearance throughout its service life, ensuring consistent accuracy and smooth operation.

Q6: What maintenance does the rotary system require?
A6: Routine inspection of the rotary joint seals and lubrication of the rotary support according to the maintenance schedule. The system is designed for minimal maintenance requirements.

Q7: Can the FV-280R both drive and extract piles?
A7: Yes. The powerful 265 kN vibration force works in both directions for efficient driving and extraction.

Q8: How does the hose management system work?
A8: Vibration hoses are mounted to move with the hanger assembly, eliminating friction points where conventional hoses rub and wear against machine components.

Q9: What is the benefit of 360° rotation in practice?
A9: Operators can rotate continuously to align piles perfectly without stopping to "untwist" hoses. This is especially valuable when working in tight spaces or when precise alignment with existing piles is required.

Q10: Is the rotary joint covered by warranty?
A10: Yes. The high-pressure rotary joint carries a 12-month warranty against defects in materials and workmanship.
