Long Length Sheet Piling / Withdrawing With Excavator Mounted Vibro Hammer

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-350
Minimum Order Quantity 1 set
Price 20000 to 32000 USD
Packaging Details 7.14 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 15 set/month
Product Details
Name Excavator Mounted Pile Driver::Piling And Pulling Feature Applicable For All Types Of Sheet Piling
Vibration 3200rpm Pressure 32Mpa
Centrifugal Force 455KN Arm 750kg
Hammer 2600kg Excavator 40-45Ton
Material Steel, Core Materials Are All Imported HS Code 8430100000 As Pile Driver Accessories
Color Blue/Yellow/Red/White, Customized Color Available Type Hydraulic Vibrating Hammer
High Light

Long Length Sheet Piling Hammer

,

Withdrawing Excavator Mounted Vibro Hammer

,

Sheet Piling Hydraulic Vibro Hammer

Leave a Message
Product Description

Long length sheet piling/withdrawing with excavator mounted vibro hammer



Sheet pile is a kind of pile which has to be inserted into the ground so that it can hold the structure. Sheet piles are mainly used to retain soil. Sheet piles are used to retain the ground beneath all structures that are water related. So, it is very important. VIBRA has experienced professional team ready to provides extensive training and installation service for fitting and driving sheet piles. Customer can send their excavator to our yards or our team can visit their yards for helping with the training and installation services. VIBRA FV-350 with fitted with the excavator in our yards, customer is intending to drive 15-meter sheet piles.



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration (rpm) 2500 2800 3200 3200 3200 3200 3200
Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60

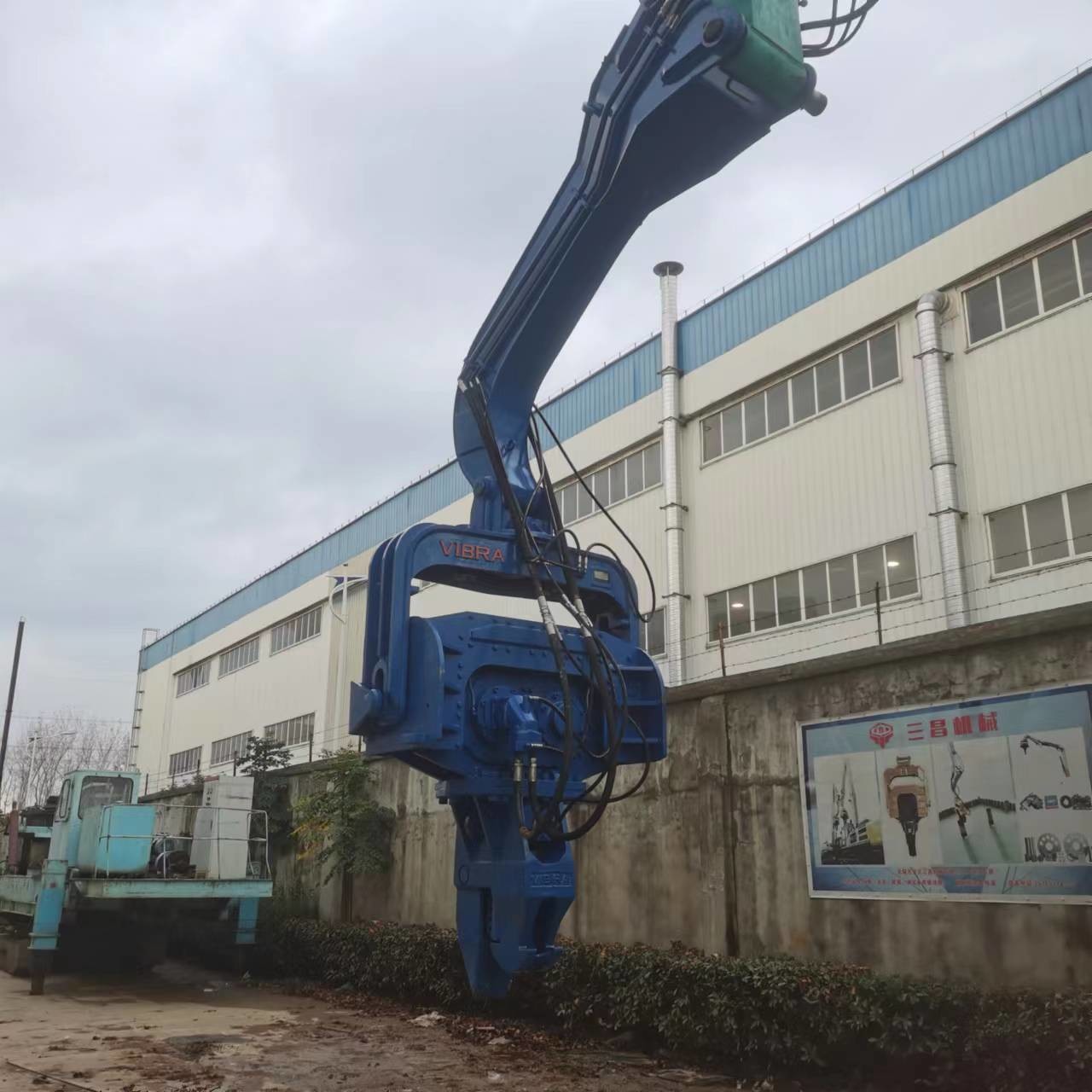

Long Length Sheet Piling / Withdrawing With Excavator Mounted Vibro Hammer 0



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice





Long Length Sheet Piling / Withdrawing With Excavator Mounted Vibro Hammer 1

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
