6 - 8 Meter Sheet Hydraulic Pile Driver XCMG Wheeler Type Excavator

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number FV-100
Minimum Order Quantity 1 set
Price 15000 USD
Packaging Details 3.824 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 15 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Vibro Sheet Pile Driving Machine Main Feature More Piling In Less Time
Vibration Frequency 2500rpm Operation Pressure 30Mpa
Weight Of Arm 160kg Weight Of Hammer 850kg
Centrifugal Force 117KN Excavator 6~12 Ton
Material Steel, Core Materials Are All Imported HS Code 8430100000
Type Hydraulic Vibrating Hammer Condition New
High Light

Wheel Type Excavator Hydraulic Pile Driver

,

8 Meter Sheet Hydraulic Pile Driver

,

XCMG Excavator Pile Driver Machine

Leave a Message
Product Description

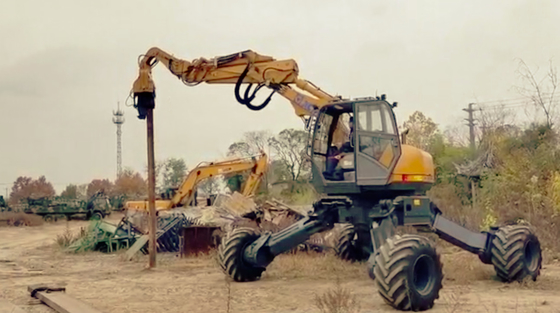

XCMG wheeler type excavator for pile driving project of 6 to 8 meter sheet piles



XCMG presenting first ever wheeler excavator which set up with VIBRA FV100 pile driver! You won't find any other wheeler excavator done the pile driving job in the piling construction projects! XCMG ET120 wheeler excavator fitted with FV100 with the goal of performing 6 to 8 meters piling works. The FV100 small pile driver has been well received by customers because of its small structure, light weight and good performance. Majorities of the inner parts of FV100 are European brand high quality parts like, SKF (Sweden) bearing, Brevini (Italy) rotation motor, Hydro Leduc (France) Vibration Motor, Four in one advance control valve (Italy) and Japan NKK control switch. By cooperating with different clamps, it can sink and pull-out steel sheet pile, cement pile, wood pile, steel pipe pile, H-beam steel, steel shield and many more types of piles.



Mini hydraulic pile driver for the company's original products, its birth to fill the industry gap; Changed the history of small excavator can not be refitted pile driver; Solve the problem that small foundation pile can not be mechanized construction.

This series of models for the new rural reconstruction of the basic engineering construction has made an outstanding contribution.



Equipment advantages



The structure is ultra-small and lightweight, and the vibration force is maximized.

Upgraded to the fourth generation model, more reasonable mechanical structure, high stability of the machine;

It can be used in the construction of narrow river course and house foundation, and can be used for drawing steel sheet piles, cement piles, wooden piles, etc.



Features



  Fitted Rubber sheath to lessen clamor, the operation is quiet and the functioning period is short; useful to beat ecological issues.
 Driving and pulling distinctive sort of steel sheet pile, concrete pile, steel rail pile, iron plate, H steel and so forth
 Applicable for different working ventures and environment.
 In contrast with other pile driving frameworks, less power needed for pile pulling
 Protect from damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
 Protect from damage the building even often work near it
 Hydraulic motor has small volume and light weight, but it can output high power and high speed.
 Vibration recurrence can be changed by variable pump. It tends to be utilized in earthmover activity of any brand, and can meet distinctive work prerequisites solely after evolving tosses.



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Technical Parameters



Item FV-100 FV-150 FV-250
Vibration Frequency (rpm) 2500 2500 2800
Operation Pressure (Mpa) 30 30 32
Centrifugal Force (KN) 117 172 265
Max.Pile (m) 6 8 10
Arm (kg) 160 260 500
Hammer (kg) 850 1100 1700
Excavator (T) 6-12 12-17 20~25



About Us



Shanghai Yekun Construction Machinery Co., Ltd was founded in 2009 with a different name but with same vision, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic and vibrating pile driver as the main products. Our products vastly apply for infrastructure & construction industries.



We base on thing quality with the latest mechanical advancement. The downsized hydraulic vibrating pile driver lead the mechanical example. The middle and enormous hydraulic vibrating pile driver similarly are significantly seen by our clients. and improvement association to together develop more valuable master stuff, and we enlisted proficient specialists as our specific direction.



Our company is consisting of a young, enthusiastic professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacturer and service supplier.



6 - 8 Meter Sheet Hydraulic Pile Driver XCMG Wheeler Type Excavator 0



FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
