CMD Chain Cutters For Dam Embankment Soil Stabilization Construction
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Name||CMD Series Chain Cutters||Feature||High Torque|
|Excavator||35 ~ 50 Ton||Power||130 Kw|
|Mix Width||400~500 Mm||Mixing Depth||1000~5000 Mm|
|Length Of Cutter||3200~7200 Mm||Color||Blue/Yellow/Red/White, Customized Color Available|
Soil Stabilization Construction Chain Cutters,
CMD Chain Cutters,
Bore Drilling Hydraulic Chain Cutter

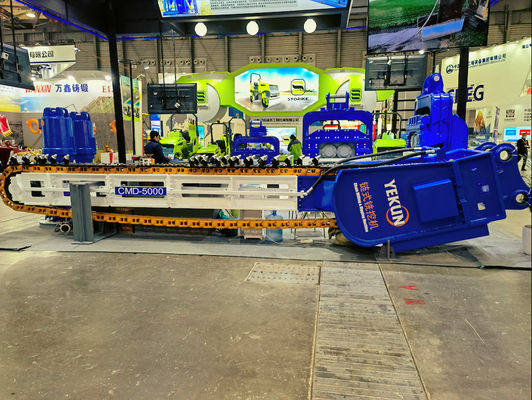

CMD chain cutters for the construction of dam embankment soil stabilization
Research and Development plays a critical role in the innovation process. R&D provides powerful knowledge and insights, leads to improvements to existing processes where efficiency can be increased and costs reduced. It also allows businesses to develop new products and services to allow it to survive and thrive in competitive markets. VIBRA YEKUN recent development CMD series chain cutters are designed to improve the soil by adding cement and binder to the soil while cutting. Different concentration of cement and binder can be used to achieve the required load-bearing capacity. The resulting stable, non-cracking soil-cement structure is freeze-resistant and waterproof, depending on the binder used in the slurry, and meets high levels of stability and watertightness. The CMD series chain cutters are made up of a specially designed, highly wear-resistant chain plate, pick block and pick teeth. Contact us to explore our new invention so that your business becomes more profitable!
Mixing and Infusion Equipment
When the weight shows the sum of the weight of water and the weight of cement in the ratio, close the winch and let the upper mixer mix again for 2 minutes, then you can open the valve to put all the liquid into the lower mixer and use it.
The slurry pump draws the slurry from the lower mixing tank and transports it to the cutter.
The CMD chain cutters are driven by two high-torque hydraulic motors plus planetary reducer for maximum power, with a theoretical output torque of 80,000Nm.
The CMD chain cutters are designed to improve the soil by adding cement and binder to the soil while cutting. Different concentrations of cement and binder can be used to achieve the required load-bearing capacity. The resulting stable, non-cracking soil-cement structure is freeze-resistant and waterproof, depending on the binder used in the slurry, and meets high levels of stability and watertightness.
- In conjunction with the irrigation equipment, the soil can be restored and the non-load-bearing soil can be cured in place to load-bearing soil without the need to remove large amounts of soil, saving the cost of soil transportation.
- Extremely low vibration, low impact on the surrounding environment.
- Suitable for the construction of dam embankment soil stabilization that meets environmental requirements.
- Extremely low construction time and high construction efficiency.
- Deep soil consolidation, up to 10 meters deep.
- The cures soil is extremely resistant to natural forces and chemical attack.
|Recommended Excavator weights||T||35~50||50~80|
|Recommended oil flow rate||l/min||300~350||350~500|
|Maximum oil flow||l/min||350||600|
|Cutting head diameter||mm||1100||1100|
|Length of cutter||mm||3200~7200||3700~12200|
|Cutting machine weight||kg||6182||10082|
|For each additional meter of length||kg||600||750|
|Theoretical output torque||Nm||40000||80000|
Shanghai yekun Machinery Co., Ltd was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components products as the vasturly products. for infrastructure & construction industries.
We focus on product quality with the latest industrial technology. The mini hydraulic vibrating pile driver leads the industrial trend. The middle and large hydraulic vibrating pile driver also are highly recognized by our clients. At the same time, we cooperate actively with the engineering machinery factory and construction company to jointly develop more functional professional equipment, and we hired foreign professionals as our technical adviser.
Our company is consisting of a young, enthusiastic professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacturer and service supplier.
Q: Are you a manufacturer?
A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,
Q: Who is your main customer?
A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.
Q: How long is the warranty period ?
A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.
Q: What is the MOQ ?
A: 1 set is available.
Q: What's the payment method ?
A: We accept T/T and D/P payment.
Q: What is the delivery time ?
A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.
Q: Can I have our LOGO on the machine ?
A: Of course you can.
Q: How is your product quality ?
A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".
Q: Can I be your dealer ?
A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
