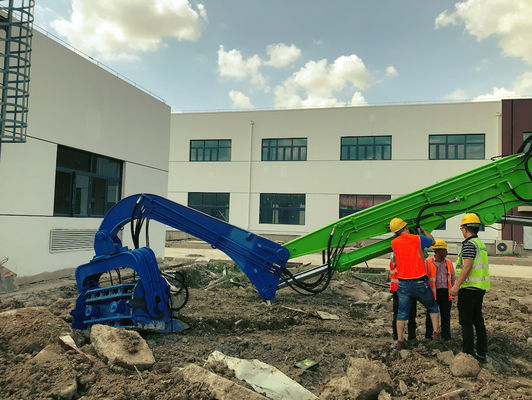

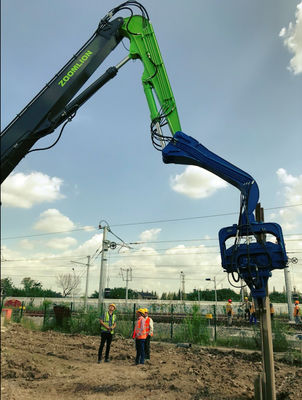

PCF Series 18 Meter Vibrating Pile Driver For Construction

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number PCF-450
Minimum Order Quantity 1 set
Price 22000 to 32000 USD
Packaging Details 7.824 CBM
Delivery Time 7-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C, D/A
Supply Ability 15 set/month
Product Details
Name Sheet Pile Driving Machine Feature Multipurpose
Vibration Frequency 3300rpm Operation Pressure 32Mpa
Arm Weight 820kg Hammer Weight 3150kg
Centrifugal Force 535KN Excavator 47~55 T
Material Steel, Core Materials Are All Imported HS Code 8430100000
Color Blue/Yellow/Red/White, Customized Color Available Type Hydraulic Vibrating Hammer
High Light

18 Meter Vibrating Pile Driver

,

PCF Construction Vibrating Pile Driver

Leave a Message
Product Description

PCF series 18 meter vibrating pile driver for large pile driving construction projects



VIBRA PCF-450 hydraulic pile driver is widely used in high-speed railway, highway soft foundation compaction, construction, real estate, municipal, pipeline, bridge, rail transit, tunnel deep foundation pit support, trench, cofferdam, breakwater defense Infiltration reinforcement, etc. Suitable for all kinds of steel sheet piles, steel pipe piles, prefabricated concrete piles, photovoltaic piles, etc. It has the advantages of low fuel consumption, high efficiency and no damage to piles.



Features



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal , bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.



Technical Parameters



               Item                          Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 21
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator T 27~30 33~38 40~45 47~55 55~70



Equipment Advantage

  • The vibration frequency is high, the exciting force is large, and the strength of each structural part is high
  • Super cast heavy steel fixture, enlarged oil cylinder and connecting rod, high reliability
  • The whole machine configuration is high, and the core parts Rexroth vibration motor are imported from fist-line European brands.

Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which saves fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
