18 Meter Sheet Pile Driver With 535Kn Centrifugal Force For Hard Soil Construction Works

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015
Model Number PCF-450
Minimum Order Quantity 1 set
Price 16000 to 35000 USD
Packaging Details 8.08 CBM
Delivery Time 7-35 days
Payment Terms L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability 15 set/month
Product Details
Name Long Sheet Pile Driver/vibro Hammer Feature Can Work/sink In Water
Vibration Frequency 3300 Rpm Operation Pressure 32 Mpa
Hammer Weight 3150 Kg Arm Weight 820 Kg
Max.Pile Length 18 M Centrifugal Force 535 Kn
Excavator 47~55 Ton Color Blue/Yellow/Red/White, Customized Color Available
HS Code 8430100000 Type Hydraulic Vibrating Hammer
High Light

18 Meter Sheet Pile Driver

,

535Kn Sheet Pile Driver

,

Hard Soil Construction Vibrating Pile Driver

Leave a Message
Product Description

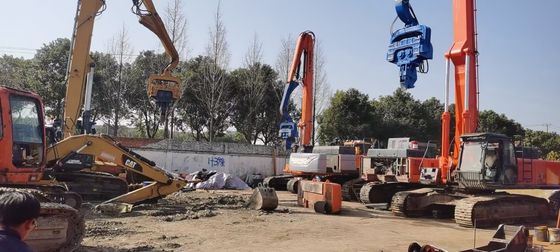

18 meter sheet pile driver with 535Kn centrifugal force for hard soil construction works



This series of machines are very popular with customers. The structure of the box body is consistent with that of the mainstream Taiwan hammer. The spare parts are interchangeable. The box bearing is easy to be maintained. The fabricated box structure has higher requirements for material strength, welding process and machining accuracy. We have strict control in all aspects of manufacturing to ensure stable quality.

We have successfully manufactured the largest model PCF-500 which matches with CAT 365 excavator.



Equipment Advantage

  • The vibration frequency is high, the exciting force is large, and the strength of each structural part is high
  • Super heavy cast steel fixture, enlarged oil cylinder and connecting rod, high reliability
  • The whole machine configuration is high, and the core parts Rexroth vibration motor are imported from fist-line European brands.



Technical Parameter



                Item                          Model PCF-300 PCF-330 PCF-350 PCF-450 PCF-500
Vibration Frequency rpm 3500 3300 3500 3300 3200
Operation Pressure Mpa 32 32 32 32 32
Centrifugal Force kn 385 420 470 535 585
Max. Pile Length m 12 12 15 18 21
Arm Weight kg 750 750 750 820 820
Hammer Weight kg 2750 2850 2950 3150 3350
Excavator T 27~30 33~38 40~45 47~55 55~70



Working Principle



Hydraulic vibrating pile driver take the advantage of high frequency vibration generated by motor and transit the vibration force to the hydraulic vibrating pile driver for the surrounding soil liquefying & break its structure to reduce the friction; then piling or drilling the pile form the soil ground via excavator. The high frequency vibration is driven by the hydraulic motor of the excavator.

The hydraulic motor drives the two eccentric axes to rotate at high speed in opposite direction. The horizontal force of the eccentric axis cancels each other without vibration. The vertical forces add up to each other, creating a vertical-frequency vibration.



Machinery Characteristics

  • The control system adopts integrated import control valve, each action can be controlled independently, convenient for maintenance and check.
  • The vibration frequency is controlled at two stages, and the second stage vibration is the confluence of double pumps, which greatly increases the excitation force and overcomes the special geology.
  • Mini and light weight design make application flexible.
  • Taking the advantage of the excavator hydraulic system without other driving system requirement, which save fuel oil and transportation cost.
  • The operation is simple and easy to learn. The driver who has the operation foundation of excavator can operate it with practice

FAQ



Q: Are you a manufacturer?



A: Yes, we have been in this field for more than 12 years, our factory is in Suzhou and you are welcome to visit our unit anytime during working hour period,



Q: Who is your main customer?



A: Our customers are spreading all over the China with some abroad countries as well namely from New Zealand, Malaysia, Indonesia and many more are joining in the list. Brands like XCMG, SANY, Zoomlion, Caterpillar and Hyundai are our valuable customers.



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
