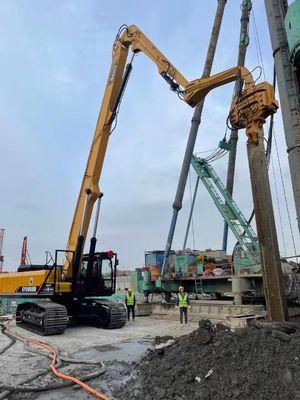

10 Meter Hydraulic Sheet Pile Driver With 20t Excavator

10 Meter Hydraulic Sheet Pile Driver With 20t Excavator
10 Meter Hydraulic Sheet Pile Driver With 20t Excavator

Large Image :  10 Meter Hydraulic Sheet Pile Driver With 20t Excavator

Product Details:
Place of Origin: Shanghai, China
Brand Name: VIBRA
Certification: ISO 9001:2015
Model Number: FV-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 17000 to 25000 USD
Packaging Details: 5 CBM
Delivery Time: 7-35 days
Payment Terms: L/C, T/T, D/P
Supply Ability: 15 set/month
Detailed Product Description
Name: Sheet Pile Driving Equipment Feature: Different Kinds Of Piling With One Driver
Operation Pressure: 32 Mpa Arm Weight: 500 Kg
Hammer Weight: 1700 Kg Vibration Frequency: 2800 Rpm
Centrifugal Force: 265 Kn Excavator: 20~30 Ton
Color: Blue/Yellow, Customized Color Available Pile: Steel, PVC, Wooden, Cement
Material: Steel, Core Materials Are All Imported HS Code: 84301000
Type: Hydraulic Vibrating Hammer Condition: New And Used Both Available
High Light:

10 Meter Hydraulic Sheet Pile Driver

,

20t Sheet Pile Driver

,

Hydraulic Steel Pile Driver Machine

Description



VIBRA vibrating pile hammer is utilizing its high frequency vibration to vibrate pile body with high-speed increase to pass the vertical vibration of mechanical produce to pile which prompting changes in the soil structure around the pile, strength decline. Soil around the piles become liquefaction to lessen frictional opposition between side of the pile and the soil. Then, at that point, utilizing the excavator down power, vibrating pile hammer and pile body weight to sink pile into the soil. When extricating piles, in the state of vibration to take out the pile by utilizing excavator lift power. Excitation power required by pile driving hardware are extensive controlled by site soil, soil condition, dampness content and sort of pile development.



Features



VIBRA hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.

With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles,etc.





About Us



Shanghai Yekun Construction Machinery Co., Ltd. was founded in 2014, A professional company involving in hydraulic vibrating pile driver manufacture, sale and service. Our company take the latest high speed hydraulic vibrating pile driver and its components as the main products. Our products vastly apply for infrastructure & construction industries.



Our company is consisting of a young, enthusiasm professional team. Adhere to client as priority, Quality as first concern, Management as foundation. We are working for the direction to become the most professional and comprehensive hydraulic vibrating pile driver manufacture and service supplier.





10 Meter Hydraulic Sheet Pile Driver With 20t Excavator 0





10 Meter Hydraulic Sheet Pile Driver With 20t Excavator 1



Technical Parameter



Item FV-250 FV-280 FV-300 FV-330 FV-350L FV-350 FV-400
Vibration Frequency (rpm) 2500 2800 3200 3200 3200 3200 3200
Operation Pressure (Mpa) 30 32 32 32 32 32 32
Centrifugal Force (KN) 265 335 350 372 435 455 485
Max.Pile Length (m) 10 12 12 12 15 15 18
Arm Weight (kg) 500 500 670 670 670 750 750
Hammer Weight (kg) 1700 1900 2100 2300 2400 2600 2700
Excavator (T) 20-30 20-30 30-35 33-40 35-40 40-45 45-60



10 Meter Hydraulic Sheet Pile Driver With 20t Excavator 2





10 Meter Hydraulic Sheet Pile Driver With 20t Excavator 3



10 Meter Hydraulic Sheet Pile Driver With 20t Excavator 4



FAQ



Q: How long is the warranty period ?



A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.



Q: What is the MOQ ?



A: 1 set is available.



Q: What's the payment method ?



A: We accept T/T and D/P payment.



Q: What is the delivery time ?



A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.



Q: Can I have our LOGO on the machine ?



A: Of course you can.



Q: How is your product quality ?



A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".



Q: Can I be your dealer ?



A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!



Q: How To Order?



A:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.
