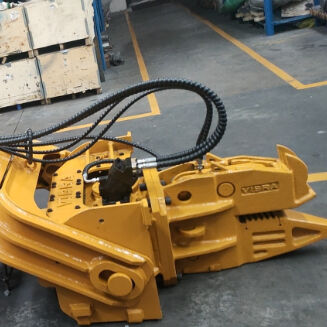

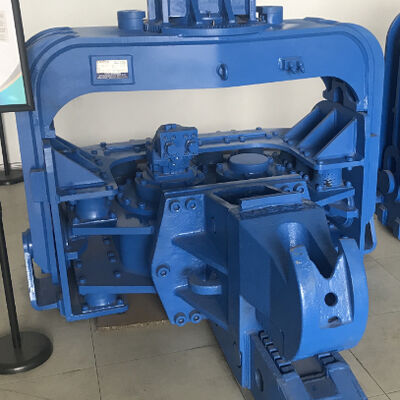

High-Performance Vibro Pile Driver - Hydraulic Power & Fast Construction Cycle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Solar Pile Driving Equipment | Feature | More Efficient And Cheaper |
|---|---|---|---|
| Arm | 500kg | Pressure | 32Mpa |
| Hammer | 1900kg | Vibration | 2800rpm |
| Centrifugal Force | 335KN | Excavator Weight | 20-30T |
| Material | Steel, Core Materials Are All Imported | HS Code | 84301000 |
| Color | Blue/Yellow, Customized Color Available | Condition | New And Used Both Available |
| Highlight | Hydraulic Excavator Mounted Pile Hammer,Construction Works Hydraulic Pile Driver,Vibratory Sheet Pile Driver For Excavator |
||
Product Description
High-Performance Vibro Pile Driver - Hydraulic Power & Fast Construction Cycle
Core Keywords: Pile Driver, Hydraulic Pile Driver, Vibratory Pile Hammer, Vibrating Pile Driver, Excavator-Mounted Pile Driver
Product Overview

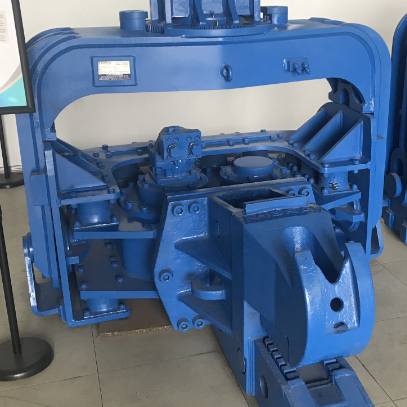

The VIBRA Series Hydraulic Vibratory Pile Driver is a high-performance solution designed to optimize modern foundation construction. Through its advanced high-frequency vibration technology, it effectively drives or extracts various pile types by transmitting mechanical energy to the pile body and altering surrounding soil structure. The equipment is engineered for maximum efficiency, minimal environmental impact, and versatility across diverse project requirements.
How It Works

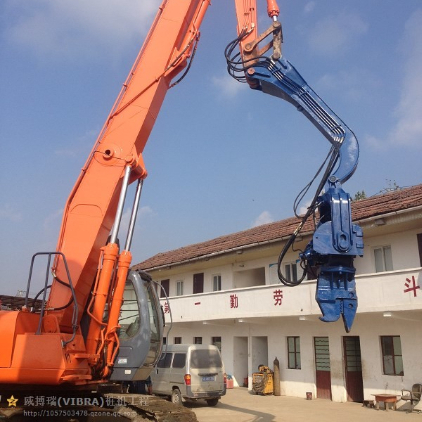

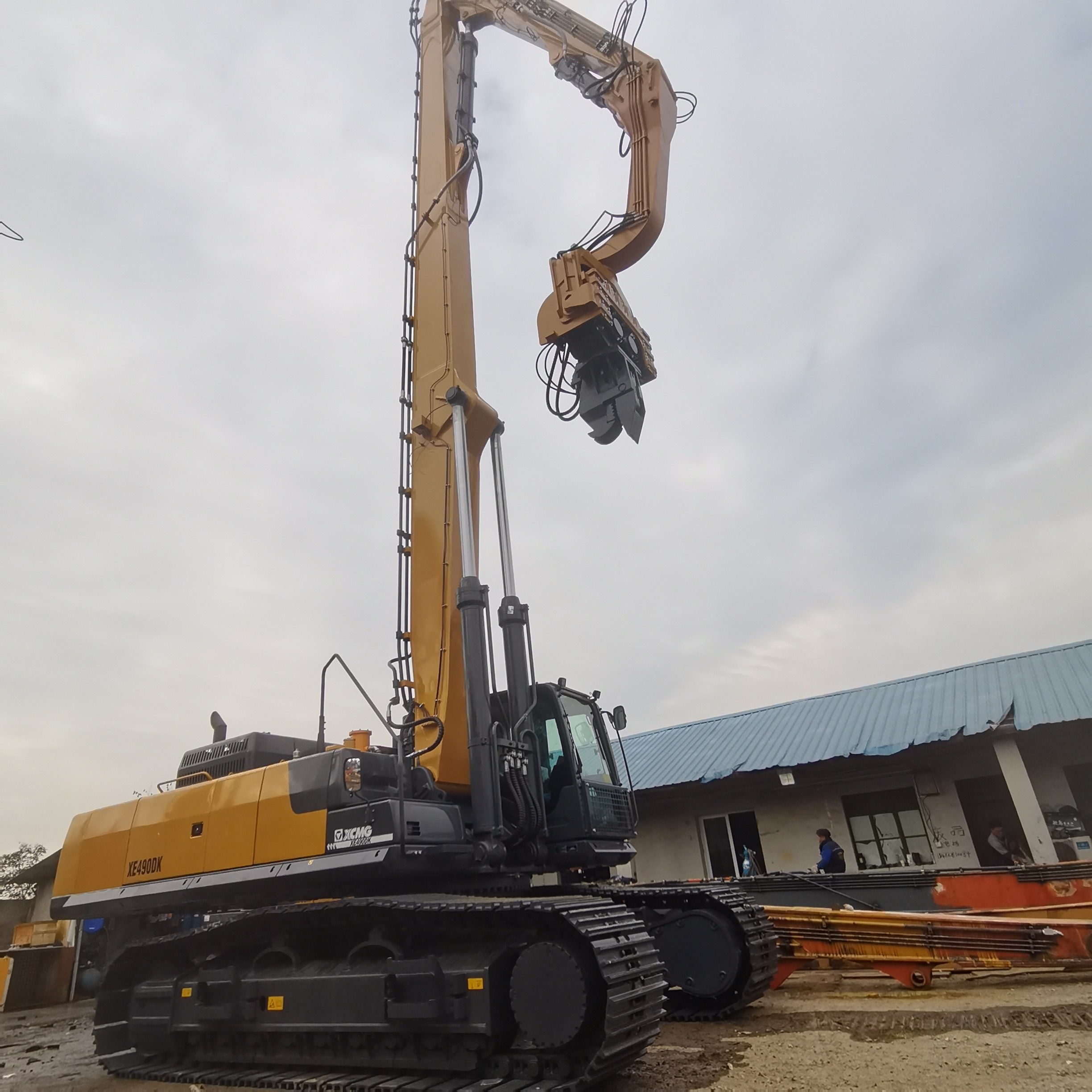

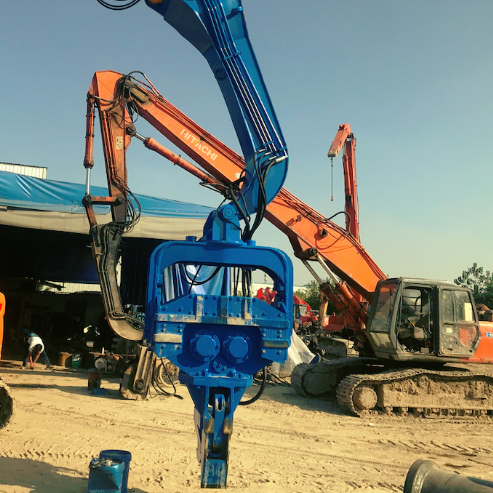

The VIBRA pile driver uses high-frequency vibration to transfer vertical mechanical energy to the pile, reducing soil strength and liquefying the surrounding area. This process significantly lessens frictional resistance between the pile and soil, allowing smooth pile penetration using the excavator's downforce and the combined weight of the hammer and pile. During extraction, vibration continues as the excavator lifts the pile from the ground. Required excitation power varies based on soil type, condition, moisture content, and pile construction.
Key Features & Advantages
-
Eco-Friendly Operation: Fitted with rubber sheaths for noise reduction, enabling quiet performance ideal for urban environments and noise-sensitive areas
-
Multi-Pile Compatibility: Effectively drives and extracts steel sheet piles, cement piles, steel rail piles, H-beams, and various metal plates
-
Rapid Conversion Design: Allows quick adaptation to different pile types and project requirements with minimal downtime
-
Reduced Extraction Force: Engineered to require significantly less force for pile pulling compared to conventional systems
-
Non-Destructive Operation: Protects the top and bottom of steel pipe piles, sheet piles, and rail piles from damage during operation
-
Site-Sensitive Performance: Can operate safely near existing structures without causing building damage
-
Compact & Powerful Hydraulics: Features a small, lightweight hydraulic motor that delivers high power output and speed
-
Universal Compatibility & Adjustability: Compatible with excavators of any brand; vibration frequency adjustable via variable pump; different chucks available for varied work requirements
Technical Parameters
| Model | Vibration (rpm) | Centrifugal Force (KN) | Max. Pile Length (m) | Operating Pressure (Mpa) | Compatible Excavator (Ton) | Hammer Weight (kg) |
|---|---|---|---|---|---|---|
| FV-250 | 2500 | 265 | 10 | 30 | 20-30 | 1700 |
| FV-280 | 2800 | 335 | 12 | 32 | 20-30 | 1900 |
| FV-300 | 3200 | 350 | 12 | 32 | 30-35 | 2100 |
| FV-330 | 3200 | 372 | 12 | 32 | 33-40 | 2300 |
| FV-350S | 3200 | 435 | 15 | 32 | 35-40 | 2400 |
| FV-350 | 3200 | 455 | 15 | 32 | 40-45 | 2600 |
| FV-400 | 3200 | 485 | 18 | 32 | 45-60 | 2700 |
Frequently Asked Questions (FAQ)
Q: What is your warranty policy?
A: We provide a 12-month warranty covering the mainframe and key components from installation completion date (excluding wear parts).
Q: What's the minimum order quantity?
A: We accept orders for as little as 1 unit.
Q: Which payment methods do you accept?
A: We accept T/T (Telegraphic Transfer).
Q: What is your typical delivery time?
A: Delivery takes 7-35 days to Shanghai Port, plus international shipping time based on destination.
Q: Can you apply our company logo to the equipment?
A: Yes, we offer custom logo application upon request.
Q: How do you ensure product quality?
A: All manufacturing follows strict compliance with national "Technical Conditions for Pile Driver Enterprises" technical standards.
Q: Do you offer dealership opportunities?
A: We welcome dealership inquiries and are actively seeking regional partners for collaboration.
Q: What is your ordering process?
A: Our process includes: (1) Sharing your requirements, (2) Receiving a proforma invoice, (3) Production upon deposit confirmation, (4) Shipping notification and coordination, (5) Delivery tracking support.
About YeKun Construction Machinery
YeKun Construction Machinery specializes in the production, sales, and service of vibratory pile driving and extraction equipment. Operating under the VIBRA brand, we focus on innovative high-speed hydraulic pile drivers and accessories for foundation engineering. In a short period, we've achieved rapid growth and industry recognition through advanced product quality and customer-focused solutions. Our young, driven team is committed to becoming the most reliable, comprehensive, and professional supplier of vibratory pile driving equipment and services worldwide.
