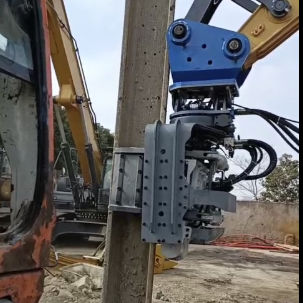

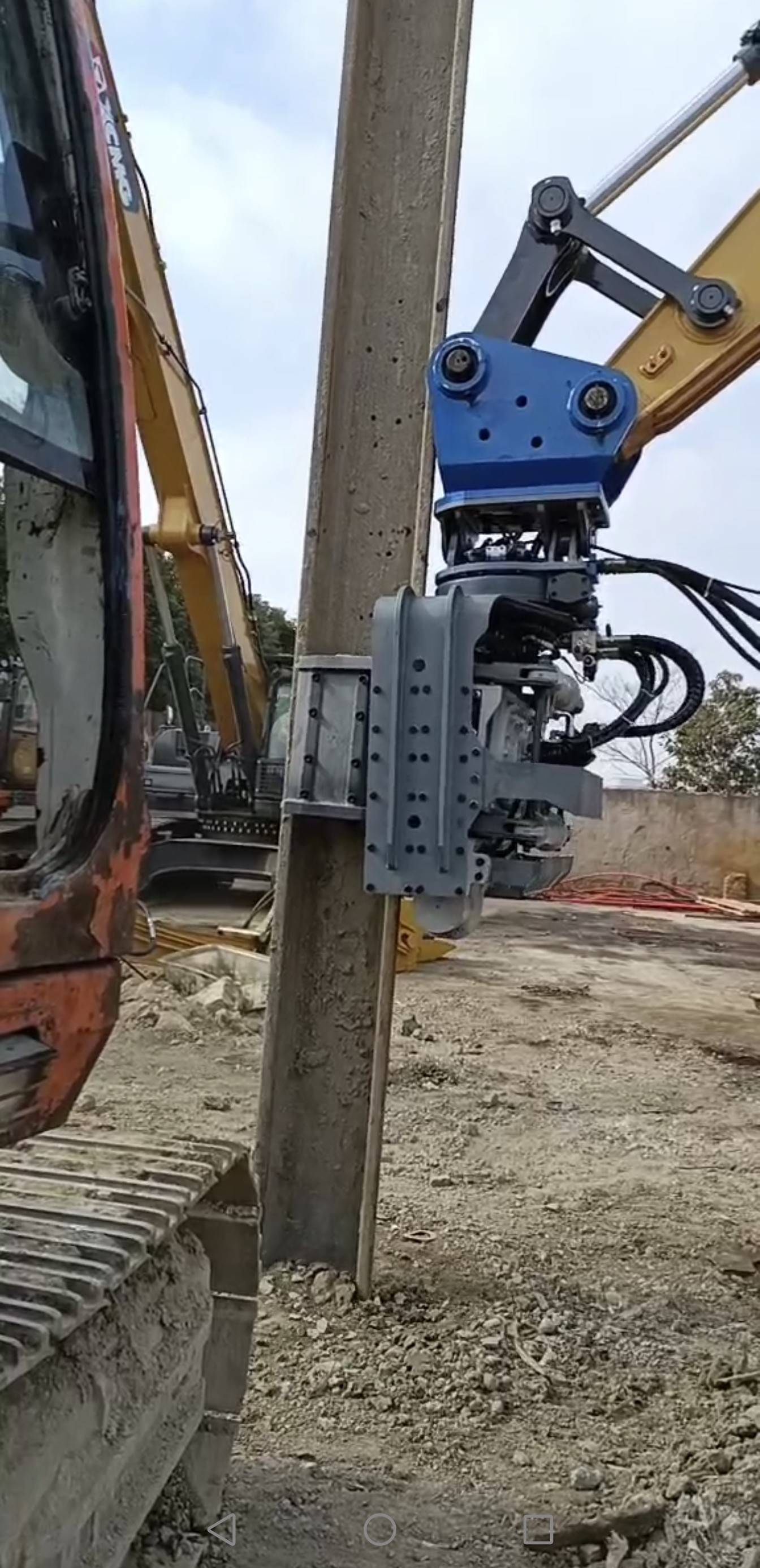

Side Grip Vibratory Hammer Pile Driver Excavator Mounted Sheet Vibro Hammer

Place of Origin Shanghai, China
Brand Name VIBRA
Certification ISO 9001:2015

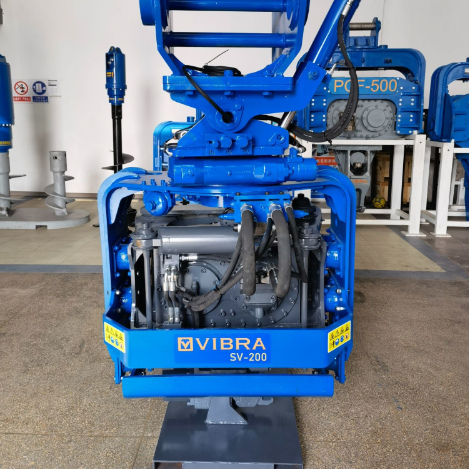

Model Number SV-200
Minimum Order Quantity 1 set
Price 20,000 to 60,000 USD
Packaging Details 4 CBM
Delivery Time 15-35 days
Payment Terms T/T, D/P, Western Union, MoneyGram, L/C
Supply Ability 10 set/month
Product Details
Name Side Grip Pile Driver Feature Pile Driving In Small Working Areas
Vibration 3000 Rpm Centrifugal Force 332-384 KN
Hammer 1400-1700 Kg Excavator 20T
Material Steel, Core Materials Are All Imported Color Blue, Customized Color Available
HS Code 84301000 Size (LxWxH) 1320X1160X1820
Rotation/tilt Angle 360/+-30 Degree Eccentric Torque 3.07kgm
High Light

Side Grip Vibratory Pile Driver

,

Excavator Mounted Sheet Vibro Hammer

,

Excavator Mounted Vibratory Pile Driver

Leave a Message
Product Description

Description



More secure and quicker than conventional Pile Drivers available, this model highlights a side and base clip to effectively pick up, tilt and turn piles for more precise outcomes.



VIBRA Side Grip Pile Driver is extraordinarily designed as excavator mounted vibro hammers. Side grip is handily adjusted to the excavator by association section created by VIBRA. They are hydraulically determined by the excavator and effortlessly worked by the excavator operator. With an ergonomic design and superior execution, different capacities excavator mounted VIBRA side grip pile drivers give long life, issue free piling application.



VIBRA side grip pile driver saves time and money with elite execution and pile driving/extracting power. Side Grip Vibratory Hammer, can deal with, pitch and drive the sheet and tube piles. It is able to achieve the entire pile driving cycle without the requirement for manual treatment of the piles or helping machinery.



Design Details
Rotary Oscillation Mechanism

  • High torque slewing support
  • High pressure swing cylinder
  • Split control valve Compact central swivel
  • Front oil circuit interface

Gantry Hanger

  • One-piece structure
  • High pressure accumulator
  • Split control valve
  • Front oil circuit interface

Holding Clip System

  • High strength arm
  • Dual high pressure cylinders
  • Interchangeable collet
  • Simultaneous clamping and release of both arms

Vibrating Body

  • Imported drive motor
  • High strength box
  • high speed gear
  • Symmetrical eccentric arrangement
  • Increase the oil drain

Bottom Clip System

  • One-piece cast steel
  • Integrated cylinder
  • tooth plate
  • Pile hook mechanism



Benefits OF VIBRA SIDE GRIP PILE DRIVER

  • Appropriate for wide scope of piles like sheet piles, casing piles, H, I-beams, steel and tube piles,
  • Appropriate for different ground conditions,
  • Ideal for conveying the driving energy to the pile,
  • Successful shifting and turning mechanism,
  • Has durability and simple maintenance,
  • Simple pile handling and pitching,
  • Wide opening and synchronized development,
  • Can perform 360º/+-30º rotation.



Fitted Rubber sheath to reduce noise, the operation is quiet and the working period is short; helpful to overcome environmental problems.
Driving and pulling different kind of steel sheet pile, cement pile, steel rail pile, iron plate, H steel etc.
Faster converting operation; Applicable for various working projects and environment.
In compare with other pile driving systems, less force required for pile pulling
Protect from damage the top or bottom of steel pipe pile, steel plate pile and steel rail pile.
Protect from damage the building even often work near it
Hydraulic motor has small volume and light weight, but it can output high power and high speed.
Vibration frequency can be adjusted by variable pump. It can be used in excavator operation of any brand, and can meet different work requirements only after changing chucks.





FAQ

Q: How long is the warranty period ?

A: The warranty period is 12 months from the date of completion of installation, the mainframe and key components, except for wearing parts.

Q: What is the MOQ ?

A: 1 set is available .

Q: What's the payment method ?

A: We accept T/T and D/P payment.

Q: What is the delivery time ?

A: The delivery time is generally 7-35 days, and arrive at Shanghai Port. Shipping time should be considered overseas.

Q: Can I have our LOGO on the machine ?

A: Of course you can.

Q: How is your product quality ?

A: Our equipment is strictly implemented in accordance with the technical standards of "Technical Conditions for Pile Driver Enterprises".

Q: Can I be your dealer ?

A: Welcome to become our dealer, and we are looking forward to further developing into a regional general agent and strategic partner like you with lofty ideals!
