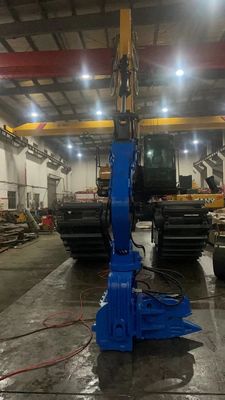

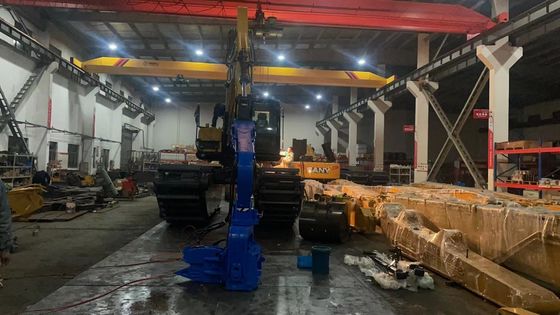

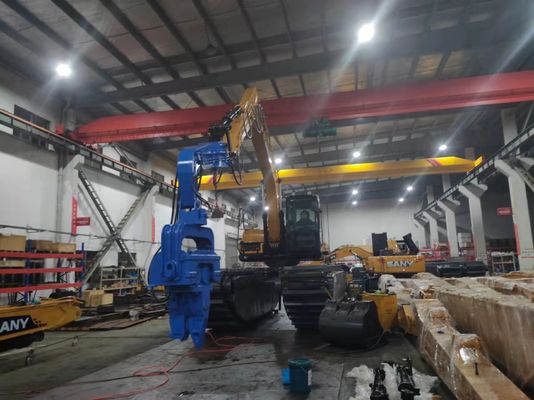

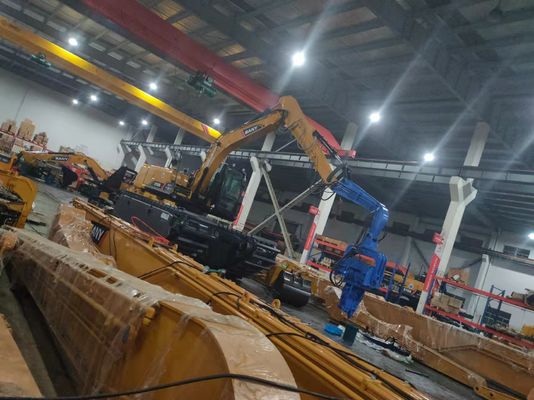

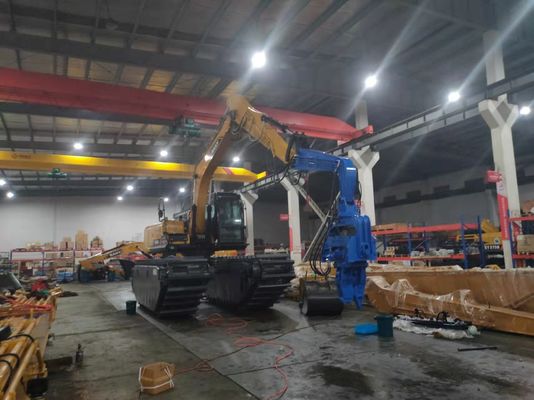

Specialized Pile Driver for Water & Canal Projects: Engineered for Precision and Durability
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Excavator Mounted Water Boat Pile Driver | Feature | Short Working Time More Pile Driving |
|---|---|---|---|
| Vibration Frequency | 3200 Rpm | Operation Pressure | 32 Mpa |
| Centrifugal Force | 455 KN | Arm Weight | 750 Kg |
| Hammer Weight | 2600 Kg | Excavator | 40-45 T |
| Material | Steel, Core Materials Are All Imported | Color | Blue/Yellow, Customized Color Available |
| Type | New And Used Both Available | HS Code | 84301000 |
| Highlight | Canalside hydraulic pile driving machine,Waterbodies hydraulic pile driving machine,Canalside sheet pile driving equipment |
||
Product Description
VIBRA Series Hydraulic Vibratory Pile Driver
Core Keywords: Pile Driver, Vibratory Pile Driver, Hydraulic Pile Driver, Excavator-Mounted Pile Driver, Foundation Piling Equipment
Product Description
The VIBRA Hydraulic Vibratory Pile Driver utilizes high-frequency vibration to transfer mechanical energy to piles, causing soil liquefaction and reducing side friction. This enables efficient pile sinking and extraction using the excavator’s hydraulic system. Suitable for diverse soil conditions and pile types, it delivers quiet, high-speed, and non-destructive piling operations for construction, municipal, and infrastructure projects.
Key Features & Advantages
- High-Efficiency Vibration: Operates at 2500–3200 RPM to accelerate soil structure breakdown and minimize driving resistance.
- Multi-Functional Use: Drives and extracts sheet piles, concrete piles, H-beams, and pipes while supporting soil compaction.
- Eco-Friendly & Low Noise: Rubber sheath integration reduces noise pollution, ideal for urban and environmentally sensitive sites.
- Pile Protection: Gentle vibratory action prevents damage to pile heads and structures nearby.
- Adaptive Performance: Adjustable frequency and compatibility with excavators (20T–60T) ensure flexibility across projects.
Technical Parameters
| Model | Vibration (RPM) | Centrifugal Force (kN) | Max Pile Length (m) | Excavator Weight (T) |
|---|---|---|---|---|
| FV-250 | 2500 | 265 | 10 | 20–30 |
| FV-280 | 2800 | 335 | 12 | 20–30 |
| FV-300 | 3200 | 350 | 12 | 30–35 |
| FV-330 | 3200 | 372 | 12 | 33–40 |
| FV-350S | 3200 | 435 | 15 | 35–40 |
| FV-350 | 3200 | 455 | 15 | 40–45 |
| FV-400 | 3200 | 485 | 18 | 45–60 |
Frequently Asked Questions (FAQ)
Q: What is the warranty period?
A: The warranty is 12 months from installation, covering the main machine and key components (excluding wear parts).
Q: What is the MOQ?
A: Minimum order quantity is 1 set.
Q: What payment methods are accepted?
A: We accept T/T and D/P payments.
Q: What is the delivery time?
A: Delivery takes 7–35 days to Shanghai Port; overseas shipping time varies.
Q: Can I add my logo to the machine?
A: Yes, logo customization is available.
Q: How is product quality ensured?
A: All equipment follows national "Technical Conditions for Pile Driver Enterprises" standards.
Q: Can I become a dealer?
A: We welcome dealers and regional agents for long-term partnerships.
