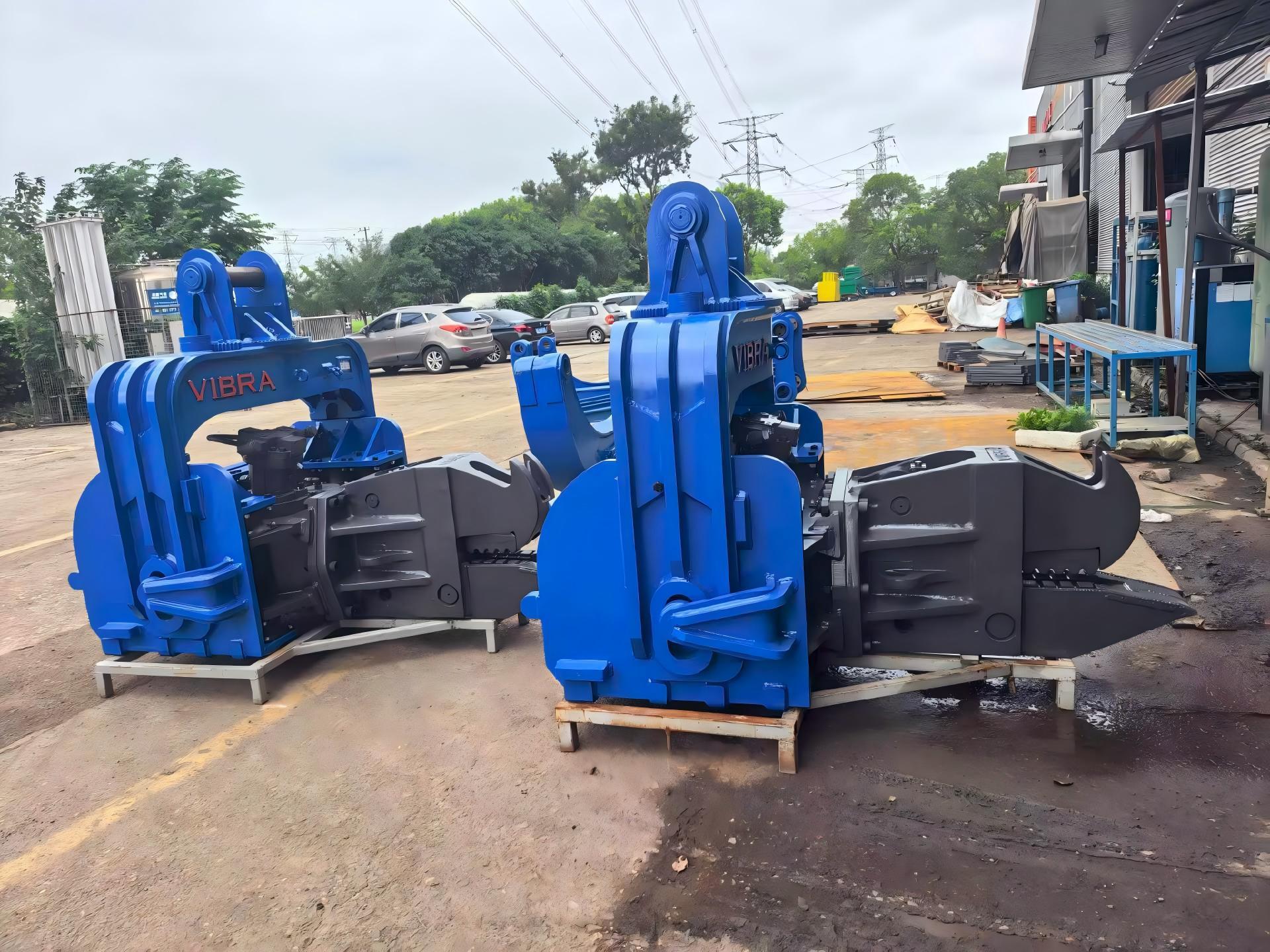

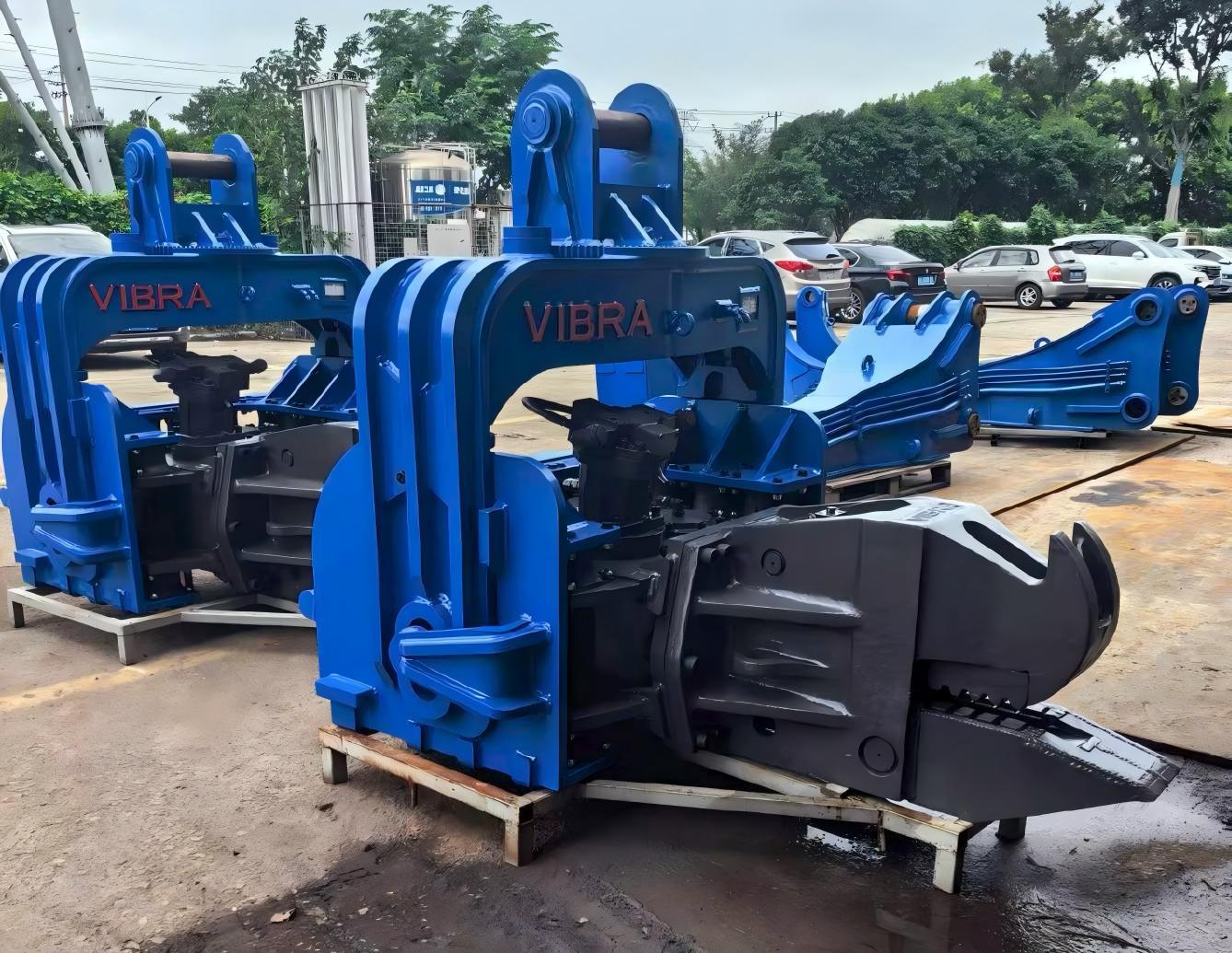

FV-700 Four Eccentric Pile Driver With Custom Self Lubricating Bearing Low Maintenance

Place of Origin	China
Brand Name	VIBRA
Certification	ISO 9001:2015
Model Number	FV-700
Document	Four Eccentric Pile Driver ...og.pdf
Minimum Order Quantity	1 unit
Price	Negotiable
Packaging Details	wooden pallets
Delivery Time	15-20days
Payment Terms	T/T
Supply Ability	10 set per month

Product Details

Highlight

Four Eccentric Pile Driver with self-lubricating bearing

FV-700 Pile Driver low maintenance

Custom eccentric pile driver with warranty

Leave a Message

Product Description

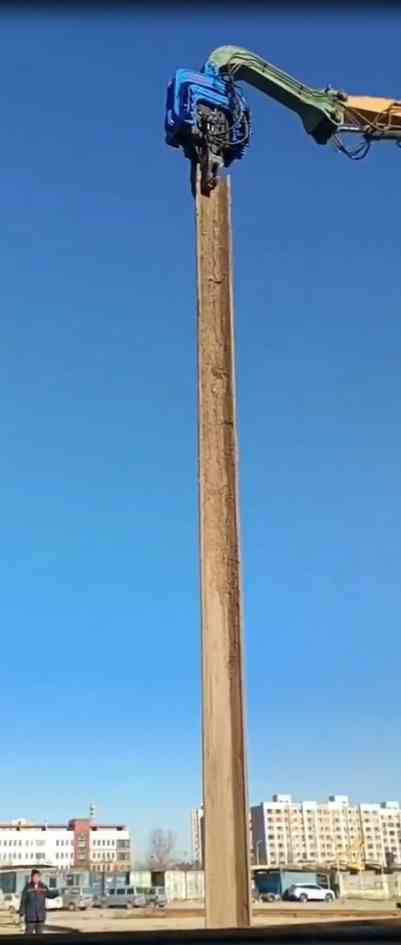

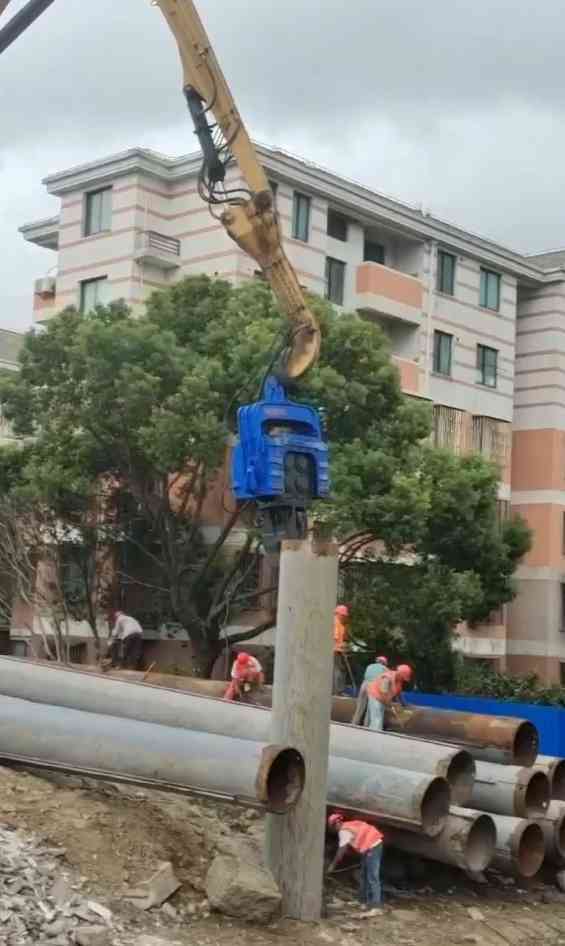

The FV-700 Four Eccentric Pile Driver is a high-performance vibratory hammer engineered for demanding construction applications. As a leading product from Four eccentric pile driver Suppliers China, the FV-700 is designed to meet the growing market demand for specialized, large-scale piling equipment. It is perfectly matched with 65-75 ton excavators, making it an ideal solution for driving and extracting large steel sheet piles (up to 24 meters), steel casings, and PC piles with exceptional efficiency and power.

Unmatched Power and Performance

The core of the FV-700's capability lies in its advanced Four eccentric mechanism system China. This sophisticated system generates a powerful and consistent centrifugal force of 915 kN, delivering High Quality high impact energy per blow to the pile. This ensures rapid penetration even in dense soil conditions, significantly improving project timelines. The robust design and high-torque output make it a reliable choice for the most challenging foundation projects across Southeast Asia, India, and Russia.

Superior Hydraulic Efficiency

To maximize performance, the FV-700 is equipped with a Custom High-flow merging valve unit. This specialized component increases the hydraulic flow to an impressive 700 L/min, ensuring the hammer operates at peak efficiency. By optimizing the hydraulic circuit and using larger 1 1/2-inch piping, the system minimizes pressure loss and delivers the immense power required for heavy-duty piling tasks. This focus on hydraulic efficiency translates directly to faster cycle times and greater productivity on the job site.

Robust and Reliable Construction

Durability is a cornerstone of the FV-700's design. It features a Custom self lubricating bearing low maintenance system housed within the main gearbox. This innovation effectively extends bearing life, ensures core stability, and significantly reduces the need for frequent maintenance, keeping your project on schedule. The entire unit is built with super-strong structural components and reinforced connecting shafts to ensure balanced force distribution and eliminate weak points, guaranteeing long-term reliability under continuous operation.

Powerful and Secure Clamping

The FV-700 is fitted with a super-strong jaw system capable of generating a maximum clamping force of 650 kN. This immense power ensures a stable and reliable grip on piles, preventing slippage during the high-vibration driving process. The combination of a powerful clamping system, a robust four-eccentric mechanism, and a high-flow hydraulic unit makes the FV-700 a top-tier choice for contractors seeking a powerful, efficient, and dependable piling solution.

Technical Parameters (FV-700)

Item	Specification
Vibration Frequency	2600 rpm
Eccentric Moment	12.3 kg.m
Operation Pressure	32 Mpa
Work Flow	380 L/min
Centrifugal Force	915 kN
Max. Pile Length	24 m
Arm Weight	1000 kg
Hammer Weight	3850 kg
Suitable Excavator	65-75 ton

Frequently Asked Questions (FAQ)

Q: What makes the FV-700 so powerful?
A: Its power comes from the advanced Four eccentric mechanism system China, which generates a high centrifugal force of 915 kN. This delivers High Quality high impact energy per blow, ensuring fast and effective pile driving in tough soil conditions.

Q: How does the FV-700 ensure high hydraulic performance?
A: The unit is equipped with a Custom High-flow merging valve unit. This system boosts hydraulic flow to 700 L/min, providing the immense power needed for large-scale piling tasks and improving overall job site efficiency.

Q: What are the maintenance requirements for the FV-700?
A: The FV-700 is designed for reliability and features a Custom self lubricating bearing low maintenance system. This extends the life of critical components and reduces downtime, making it a cost-effective choice for long-term projects.

Q: Who are the leading providers of this equipment?
A: The FV-700 is a flagship product from premier Four eccentric pile driver Suppliers China, ensuring you receive a high-quality, technologically advanced machine built for the most demanding construction environments.
