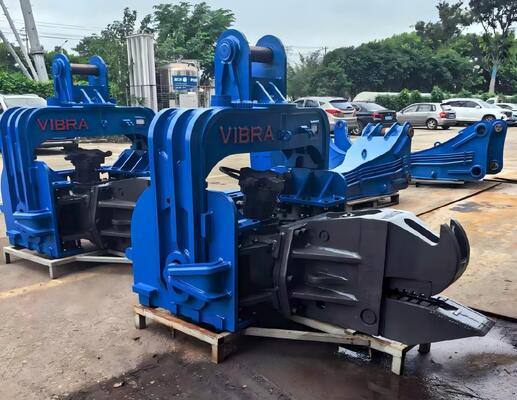

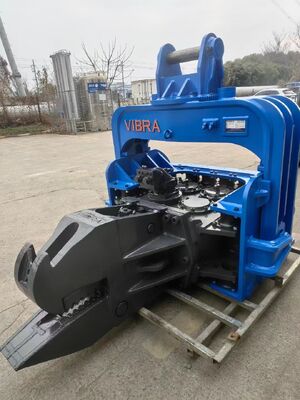

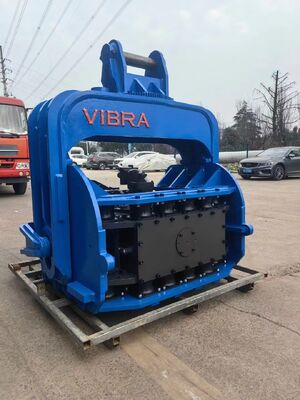

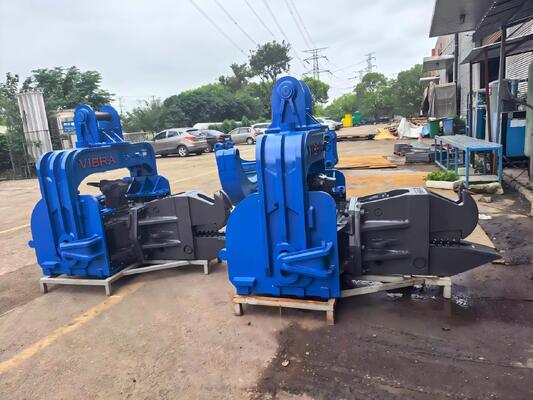

FV-700 Four Eccentric Pile Driver With Self-Lubricating Bearing & High-Flow Merging Valve

The FV-700 Four Eccentric Pile Driver represents the pinnacle of heavy-duty piling technology, specifically designed to meet the growing demands of large-scale infrastructure projects. As a leading Four eccentric pile driver Made In China manufacturer, we have developed this model to handle the most challenging piling applications – large steel sheet piles, steel casings, and PC hybrid piles ranging from 18 to 24 meters in length.

With the rapid development of the steel sheet pile market, pile hammers are evolving towards specialization and large-scale operation. The FV-700 answers this call, matching with 65-75 ton excavators to deliver exceptional performance in port construction, bridge foundations, deep excavation support, and large-scale infrastructure projects across Southeast Asia, India, and Russia.

At the core of the FV-700 lies a precision-engineered Four eccentric mechanism system Made In China that delivers unparalleled vibratory force. Unlike traditional three-eccentric designs, the four-eccentric configuration provides:

Balanced force distribution – four eccentric axes rotating in synchronized opposition create powerful vertical vibration while canceling horizontal forces

Higher centrifugal force – generating an impressive 915 kN of centrifugal force for rapid pile penetration

Smoother operation – reduced lateral vibration means less stress on the carrier machine and improved operator comfort

Superior performance in dense soils – effectively liquefies surrounding soil, reducing friction by up to 80% for fast penetration through compacted fill, dense clay, and weathered rock

The Four eccentric mechanism system is powered by original imported Parker hydraulic motors, German FAG bearings, and high-end gear components – ensuring reliable performance even under the most demanding job site conditions.

The FV-700 features an innovative self lubricating bearing low maintenance Suppliers China system that sets a new standard for reliability and cost-effectiveness. The bearing self-lubricating system is contained within the gearbox housing, effectively extending bearing service life and ensuring core stability.

Key maintenance advantages:

Continuous oil circulation – sealed system bathes all bearings, eliminating the need for daily greasing

Extended bearing life – self-lubrication reduces wear and significantly extends component lifespan

Reduced maintenance downtime – less frequent servicing means more time on the job

Lower total cost of ownership – minimized maintenance labour and parts replacement costs

Core stability – consistent lubrication ensures stable performance throughout the machine's service life

For contractors operating in remote locations or on tight schedules, the self-lubricating bearing system provides peace of mind and keeps critical path projects moving forward.

The FV-700 is equipped with a High-flow merging valve unit China-engineered system that delivers exceptional hydraulic performance. This advanced valve unit increases flow to an impressive 700 liters per minute, with body piping enlarged to 1.5 inches for maximum fluid delivery.

Specifications of the high-flow merging valve unit:

Flow capacity – 380 L/min operating flow

Operating pressure – 32 MPa

Large-diameter piping – 1.5-inch body piping reduces pressure losses

Extended component life – new electronic control system prolongs the lifespan of all hydraulic components

Balanced force distribution – oversized connecting shafts ensure even force distribution with no weak points

This high-flow capacity enables the FV-700 to maintain consistent vibratory performance even under continuous heavy-load operation, delivering the power needed for 18-24 meter piles in challenging ground conditions.

The FV-700 delivers Custom high impact energy per blow performance that sets it apart from conventional pile drivers. With a centrifugal force of 915 kN at 2600 rpm vibration frequency, this machine generates the impact energy needed to handle the most demanding piling applications.

Performance highlights:

The Custom high impact energy per blow capability ensures:

Rapid pile penetration – through dense gravel, compacted fill, and stiff clay

Reduced driving time – fewer hammer blows per meter of penetration

Improved productivity – more piles driven per shift

Versatile application – handles steel sheet piles, steel casings, and PC piles with equal effectiveness

The FV-700 features a super strong cast steel clamp nozzle matched with 160-180 oil cylinders, delivering a maximum clamping force of 650 kN. This robust clamping system ensures:

Stable and reliable gripping – even with heavy, long piles

Secure handling – prevents pile slippage during driving and extraction

Versatile compatibility – adapts to various pile types and sizes

Operator confidence – reliable clamping reduces job site risks

The FV-700 Four Eccentric Pile Driver is ideally suited for:

Port and harbour construction – driving large steel sheet piles for wharf and dock structures

Bridge foundation piling – handling deep foundation piles for major bridge projects

Deep excavation support – installing retaining walls for basement and underground construction

Large-scale infrastructure – highway, railway, and industrial foundation projects

Steel casing installation – for bored pile and drilled shaft applications

PC hybrid pile driving – for high-capacity foundation systems

Note: Specifications are for reference only. Products are constantly updated, and new product specifications may vary.

Southeast Asia: The FV-700 handles the mixed soil conditions common in coastal and river delta regions. Its powerful 915 kN centrifugal force ensures rapid penetration through alluvial soils and weathered rock. The self-lubricating bearing system reduces maintenance requirements in remote job site locations.

India: For large-scale infrastructure projects across the subcontinent, the FV-700 delivers the power needed for deep foundation piling. The four-eccentric mechanism provides smooth, consistent performance even in the challenging ground conditions found across different regions.

Russia: The robust construction and high-quality components (Parker motors, FAG bearings) ensure reliable operation in extreme temperatures. The self-lubricating system maintains performance in cold conditions where conventional greasing becomes difficult.

Q1: What makes the four-eccentric mechanism different from standard designs?
The four-eccentric mechanism provides superior force balance, reduced lateral vibration, and higher centrifugal force compared to traditional three-eccentric designs, resulting in faster penetration and smoother operation.

Q2: What excavator size is required for the FV-700?
The FV-700 is designed for 65–75 ton excavators, making it suitable for large-scale infrastructure projects.

Q3: How does the self-lubricating bearing system work?
The bearing self-lubricating system is contained within the gearbox housing, providing continuous oil circulation to all bearings. This eliminates the need for daily greasing and significantly extends bearing service life.

Q4: What is the maximum pile length the FV-700 can handle?
The FV-700 can drive piles up to 24 meters in length, making it suitable for deep foundation applications.

Q5: What types of piles can the FV-700 handle?
The FV-700 handles large steel sheet piles, steel casings, and PC hybrid piles through its super strong cast steel clamp nozzle system.

Q6: What is the clamping force of the FV-700?
The FV-700 delivers a maximum clamping force of 650 kN, ensuring stable and reliable gripping of heavy, long piles.
