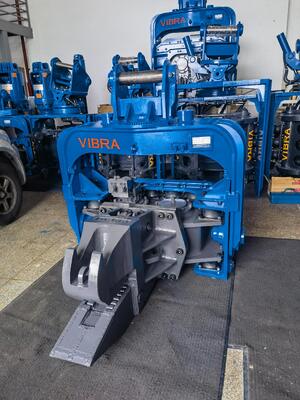

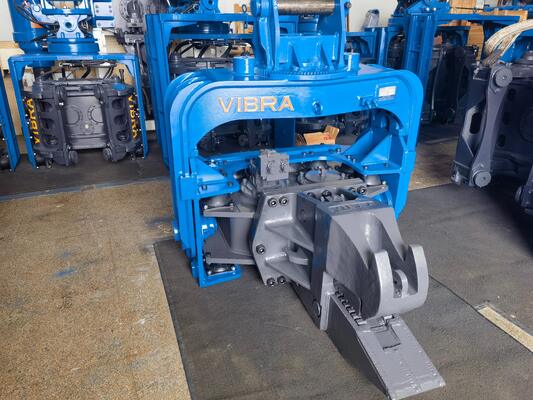

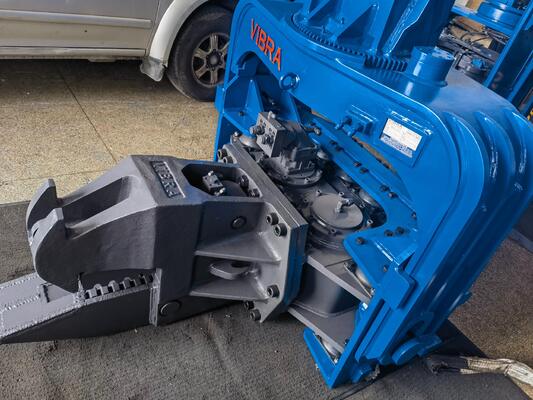

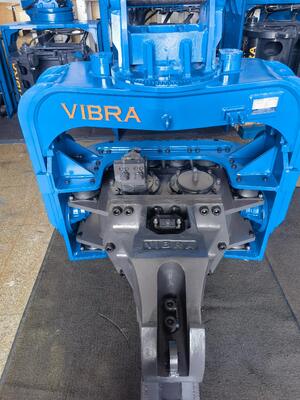

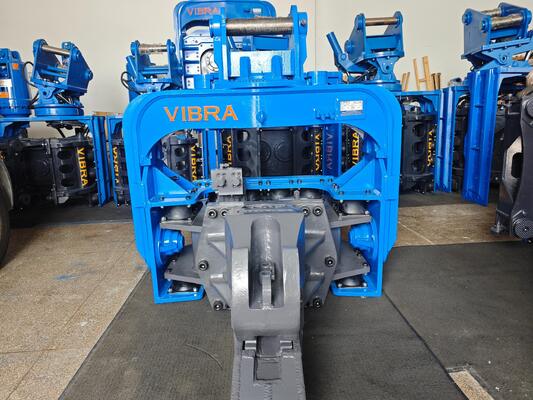

Custom Integrated Control Valve Assembly Pile Driver – FV-350S Compact Structure For Solar Farm Foundations

As the global renewable energy sector accelerates, photovoltaic (PV) power plants are being deployed at an unprecedented scale. The foundation of any solar farm—the pile system—demands efficient, reliable, and specialized equipment. Shanghai Yekun Construction Machinery Co., Ltd., under the VIBRA brand, has developed the FV-350S as a dedicated photovoltaic pile driver that sets new standards for performance, durability, and site adaptability. As one of the leading photovoltaic pile driver manufacturers China, Shanghai Yekun has engineered this model specifically to meet the rigorous demands of solar farm construction, delivering exceptional power, precision, and versatility.

The FV-350S is not a modified general-purpose pile driver; it is a purpose-designed machine for photovoltaic applications. With a centrifugal force of 435 kN, a maximum piling depth of 15 meters, and a vibration frequency of 3,200 rpm, this model outperforms conventional equipment in both speed and effectiveness. The FV-350S is optimized for 35–40 ton excavators, leveraging the host machine's hydraulic system to eliminate the need for external power sources—reducing fuel consumption and transportation costs.

Shanghai Yekun, recognized among photovoltaic pile driver manufacturers China, has invested heavily in R&D to overcome the technical bottlenecks that plague traditional pile drivers: insufficient vibration force, low efficiency in hard soils, and poor adaptability to varied site conditions. The FV-350S addresses these challenges head-on, making it the preferred choice for large-scale solar projects in Southeast Asia, India, and Russia, where diverse soil types and demanding climates are common.

At the heart of the FV-350S lies a sophisticated custom integrated control valve assembly that delivers superior hydraulic control. This advanced system allows independent operation of clamping, vibration, and rotation functions, providing operators with fine-tuned control over every aspect of the piling process.

The custom integrated control valve assembly offers several distinct advantages:

• Independent Function Control: Each action can be operated separately, enabling precise adjustments for different soil conditions and pile types—from sandy loam to rocky ground.
• Simplified Maintenance: The modular valve design allows easy inspection and servicing, minimizing downtime on critical project timelines.
• Adjustable Impact Frequency: Operators can fine-tune vibration from 2,300 to 3,200 rpm to match ground conditions in real time, optimizing efficiency and reducing wear.
• Enhanced Reliability: Imported high-quality valve components ensure consistent performance and long service life, even under continuous heavy-duty operation.

This level of control is especially valuable in photovoltaic installations, where piles must be driven to precise depths and alignments across large, often uneven terrain.

Despite its formidable power, the FV-350S features an exceptionally compact structure that enables operation in confined spaces where larger piling rigs cannot venture. With overall dimensions of just 1,414 mm in length, 787 mm in width, and 2,471 mm in height, and a hammer weight of only 2,500 kg, the machine offers an outstanding power-to-weight ratio. This compact structure allows the FV-350S to navigate narrow access roads, work between existing structures, and operate in environmentally sensitive areas—all while delivering 435 kN of centrifugal force.

For exporters supplying construction equipment to emerging markets, the combination of compact structure and high power is a game-changer. The FV-350S can be easily transported and deployed on solar farms located in remote or constrained sites, reducing logistics costs and project lead times. Its excavator-mounted design further simplifies mobilization, as it can be quickly attached to any 35–40 ton excavator without special modifications.

The FV-350S represents a comprehensive confined space adaptation solution that addresses the real-world challenges of foundation construction in restricted environments. Solar farms often feature irregular layouts, uneven ground, and limited working areas—conditions that render traditional pile drivers impractical. Shanghai Yekun's confined space adaptation solution overcomes these limitations through:

• Lightweight Yet Powerful Construction: The 2,500 kg hammer delivers 435 kN of force, outperforming heavier machines while remaining agile.
• High-Strength Components: Super-heavy cast steel fixtures, reinforced oil cylinders, and heavy-duty connecting rods ensure durability in hard soils and rocky conditions.
• Premium Bearings and Hydraulics: German FAG bearings and imported core components guarantee reliability and minimize maintenance requirements.
• Eco-Friendly Operation: Low noise and vibration levels make the FV-350S suitable for noise-sensitive areas and environmentally protected sites.

Beyond solar farms, this confined space adaptation solution proves invaluable for bridge foundations, municipal infrastructure, water conservancy projects, retaining walls, and port works—making the FV-350S a versatile asset for any contractor's fleet.

Q: What makes the FV-350S a dedicated photovoltaic pile driver?
A: Unlike general-purpose pile drivers, the FV-350S is purpose-engineered by specialized photovoltaic pile driver manufacturers China for solar farm applications. It features optimized vibration parameters, a custom integrated control valve assembly for precise depth control, and clamping systems designed specifically for photovoltaic piles.

Q: Can the FV-350S operate in confined spaces?
A: Absolutely. Its compact structure and excavator-mounted design make it an ideal confined space adaptation solution for urban sites, riverbanks, and solar farms with limited access. The machine's small footprint—just 787 mm wide—allows it to work where larger equipment cannot.

Q: How does the custom integrated control valve assembly improve performance?
A: The custom integrated control valve assembly enables independent control of clamping, vibration, and rotation. Operators can adjust vibration frequency from 2,300 to 3,200 rpm to match changing soil conditions, ensuring maximum efficiency and reducing wear on components.

Q: Is the FV-350S suitable for exporters?
A: Yes. Shanghai Yekun is an experienced exporter with ISO 9001:2015 certification. The FV-350S is available with MOQ of 1 set, delivery within 7–35 days to Shanghai Port. Custom branding and configurations are also available.

Q: What warranty and after-sales support are provided?
A: The FV-350S comes with a 12-month warranty on the mainframe and key components (excluding wearing parts). Shanghai Yekun offers technical documentation, responsive customer service, and spare parts support for global customers.

Q: What types of piles can the FV-350S handle?
A: The FV-350S drives and extracts steel sheet piles, cement piles, steel pipe piles, H-beams, and photovoltaic-specific piles. The clamping system is designed to accommodate various pile diameters and shapes.
