SV400 Excavator-Mounted Pile Driver | 3870 kg | 520 kN Clamp Force

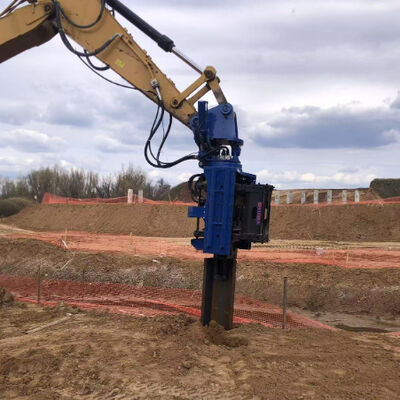

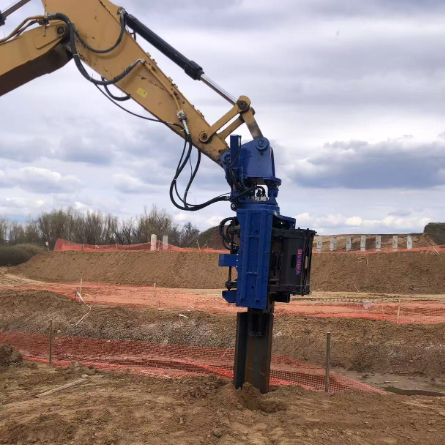

The SV400 Side Grip Pile Driver is a high-performance hydraulic vibratory hammer designed for heavy-duty foundation work in challenging environments. Mounted directly on 32-40 ton excavators, this system turns your existing machine into a powerful and flexible piling rig. It is built to handle large-scale projects such as bridge construction, industrial plant foundations, and port development—especially in sites with low overhead clearance or limited space. With full 360-degree rotation and ±30° side tilt, the SV400 gives operators complete control over pile handling, positioning, driving, and extraction without needing extra cranes or support equipment.

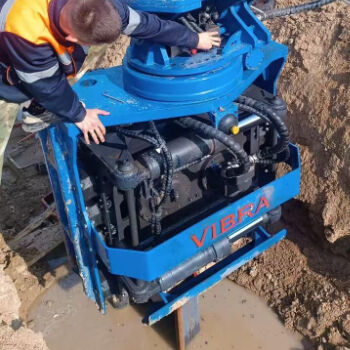

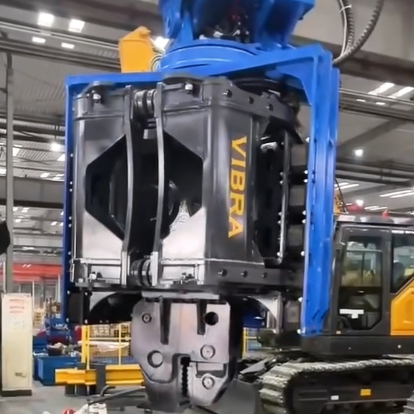

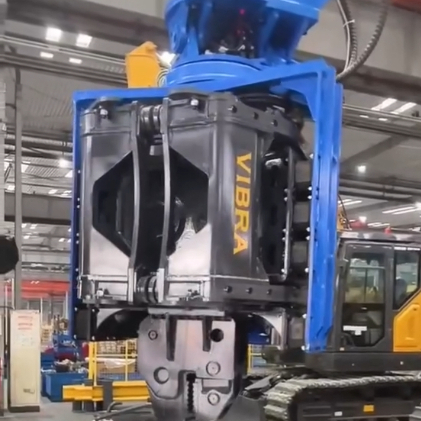

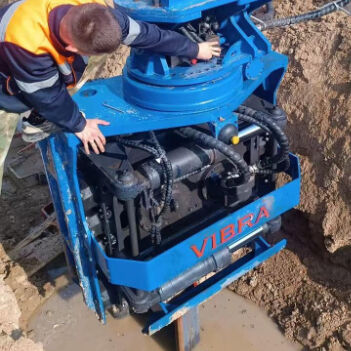

The SV400 features a heavy-duty dual-clamp system that securely holds piles from both the side and bottom. This ensures maximum stability and precision, even when working with long or heavy piles in tight spaces. The machine comes with a multi-function clamp interface that can be quickly swapped out to handle different pile types, including steel sheet piles, H-beams, and large-diameter pipe piles. Installation on excavators is straightforward, requiring only minor modifications. The reinforced frame and high-capacity hydraulic motor are built to withstand continuous use in the toughest job site conditions.

• Built for Low Clearance Sites: Perfect for projects inside factories, under bridges, or in tunnels where traditional piling rigs cannot fit.
• Full Control in Any Position: 360° continuous rotation and ±30° tilt allow precise pile alignment without constantly moving the excavator.
• Strong and Reliable Grip: With 465 kN of side clamp force and 520 kN of bottom clamp force, the SV400 handles heavy piles securely, preventing slippage during driving or extraction.
• Handles Multiple Pile Types: Quickly switch between sheet piles, H-beams, and pipe piles using the replaceable clamp interface.
• Powerful and Adaptable Performance: Delivers 656 kN of centrifugal force with a frequency range up to 5000 rpm, making it effective in everything from soft soils to dense, compacted ground.
• Easy to Mount and Maintain: Designed for fast attachment to 32-40 ton excavators. Uses the excavator's own hydraulic system, making operation simple and service access easy.

• Total Weight (with Connector and Clamp): 3870 kg
• Eccentric Moment: 6.6 kgm
• Centrifugal Force: 656 kN
• Operating Frequency: 2300-5000 rpm
• Side Clamp Force: 465 kN
• Bottom Clamp Force: 520 kN
• Operating Pressure: 32 Mpa
• Required Flow: 280-360 L/min
• Rotation / Tilt: 360° / ±30°
• Dimensions (LxWxH): 1400 x 1315 x 3056 mm
• Compatible Excavator: 32-40 Tons

The SV400 is an excellent choice for contractors in Southeast Asia, India, and Russia who need a powerful yet flexible piling solution.

• Southeast Asia: Ideal for port construction, high-rise building foundations, and infrastructure projects in dense urban areas.
• India: Well-suited for major bridge foundations, metro rail projects, and industrial plant construction where space and clearance are limited.
• Russia: Powerful enough to handle challenging ground conditions, including frozen soil and dense geological layers, while remaining compact enough for industrial site work.
